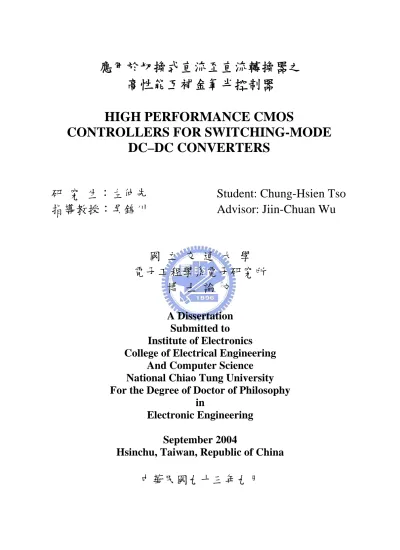

(1)應用於切換式直流至直流轉換器之高性能互補金氧半控制器 HIGH PERFORMANCE CMOS CONTROLLERS FOR SWITCHING-MODE DC–DC CONVERTERS 研究生：左仲先指導教授：吳錦川. Student: Chung-Hsien Tso Advisor: Jiin-Chuan Wu. 國立交通大學電子工程學系電子研究所博士論文 A Dissertation Submitted to Institute of Electronics College of Electrical Engineering And Computer Science National Chiao Tung University For the Degree of Doctor of Philosophy in Electronic Engineering September 2004 Hsinchu, Taiwan, Republic of China. 中華民國九十三年九月.

(2) 應用於切換式直流至直流轉換器之高性能互補金氧半控制器研究生：左仲先. 指導教授：吳錦川. 國立交通大學電子工程學系電子研究所. 摘要本論文針對切換式直流至直流轉換器提出數種創新之高性能控制器。為了要達到快速暫態反應、高效率、穩定運作以及固定的切換頻率等需求，新型控制器的分析與設計在本論文裡有完整的探討，並利用 CMOS 類比及數位混合式積體電路技術實現控制電路。現存之自由運行控制電路具有架構簡單和反應極為快速之優點，然而切換頻率不固定，因此無法運用在對電磁干擾敏感的裝置中，同時相關的論文質與量皆相當缺乏，在理論分析方面仍有進一步探討的空間。在本論文中對於常見的兩種自由運行控制型式-漣漪控制和固定開啟時間控制進行理論研究，並針對缺點提出改進的電路架構。在固定開啟時間控制方面，設計可依據輸入輸出電壓調整開啟時間的電路，因此切換頻率幾乎不隨輸入輸出電壓以及負載電流變動。在論文中探討自由運行控制的不穩定. i.

(3) 現象，容易被回授信號上的雜訊干擾，因此提出創新的補償電路，可改善頻率響應以及雜訊免疫能力，利用內建積分器產生的斜坡信號用來觸發比較器，具有良好的雜訊免疫能力，可以達到穩定且快速的動作。控制電路利用 1 微米的互補式金氧半導體積體電路技術來實現，包含輸入輸出接腳的面積為 5.2 毫米平方，實驗結果顯示暫態反應十分快速，在輸入電壓 5 伏特，輸出電壓 2.476 伏特，負載電流 10 毫安培至 3 安培的情況下，效率可達 86 %至 93 %，負載穩壓度和線穩壓度分別為 0.032 %/A 和 0.034 %/V，均優於傳統電壓模式和電流模式的脈寬調變控制方式。在漣漪控制方面，提出了嶄新的方法，利用相鎖迴路調整延遲，用以鎖定切換頻率，並針對 buck 和 boost 兩種功率級分別提出電壓模式與電流模式之漣漪控制器。穩態反應分析、輸出電壓電流轉換函數、切換頻率函數以及頻率響應函數在論文中有推導及分析，根據頻率響應設計出補償網路，分析漣漪控制之各種特性。同時，將切換頻率與延遲的關係線性化之後，可得到一個線性模型，根據此模型，我們可以設計迴路參數和分析相鎖迴路的穩定度。穩壓器電路經由 SPICE 模擬，buck 穩壓器在輸入 20 伏特輸出 1.5 伏特的情況下，穩態切換頻率鎖定 300 kHz，負載穩壓度和線穩壓度分別為 0.0046 %/A 和 0.028 %/V；boost 穩壓器在輸入 2.4 伏特輸出 3.3 伏特的情況下，穩態切換頻率鎖定 300 kHz，負載穩壓度和線穩壓度分別為 0.96 %/A 和 0.75 %/V，其他模擬結果也包含在本論文內。傳統之類比式控制器存在調整困難，容易隨製程參數與外在環境漂移之缺點，數位式控制器則受限於電路數量較多與成本較高，針對此一問題，提出一種混合式控制電. ii.

(4) 路，利用比例式電流回授技術加速電源穩壓器之暫態反應，配合特別電路設計，簡化類比數位轉換與數位運算電路，具有架構簡單與高性能之優點，且容易調整控制參數。一般數位類比混合電路多利用電晶體等級的模擬分析系統的時域反應，在本論文中利用行為模型模擬系統的時域反應，可以大幅減少模擬的時間。控制電路利用 0.6 微米的互補式金氧半導體積體電路技術來實現，包含輸入輸出接腳的面積為 1.8 乘 1.8 毫米平方。當輸出電流由 2 安培增加至 20 安培時，輸出電壓最多降低 150 毫伏，並於 100 微秒內回到靜態容忍的界線內，大電流暫態反應符合嚴格的電源需求，並且與模擬的結果相符。. iii.

(5) iv.

(6) HIGH PERFORMANCE CMOS CONTROLLERS FOR SWITCHING-MODE DC–DC CONVERTERS. Student: Chung-Hsien Tso. Advisor: Prof. Jiin-Chuan Wu. Department of Electronics Engineering and Institute of Electronics National Chiao-Tung University. Abstract Several high performance controllers for switching-mode DC–DC converter are proposed. In order to achieve fast transient response, high efficiency, stable operation, and low switching noise, analysis and circuit design of the controllers are comprehensively investigated in this dissertation. Controllers are realized by CMOS analog and digital mixed-mode integrated circuits techniques. Free-running control is the simplest among all control topologies of switching power supply. However, the switching frequency depends on the operating conditions and power filters. Thus, the use is limited in noise sensitive devices. Besides, only few related literatures provide analytical insights into this kind of control. Two common free-running control. v.

(7) topologies, ripple control and constant on-time control, are investigated. Circuits architectures are proposed to improve these controllers. Switching frequency of the constant on-time regulator can be also stabilized by adjusting the on time according to input and output voltages. Unstable operation of free-running control due to noise on feedback signal is discussed. A novel compensation circuit is proposed to improve the frequency response and noise immunity of constant on-time control. This compensation circuit uses a built-in integrator to generate a ramp signal to trigger the comparator. Therefore, it is less susceptible to noise. Stable operation and fast response are obtained. The proposed control circuits are realized in a 1 µm CMOS technology with area of 5.2 µm2 including the I/O pads. Experimental results showed fast response during load and line transients. Efficiency from 86 % to 93 % is obtained over a load range from 10 mA to 3 A under 5 V input voltage and 2.476 V output voltage. The load and line regulations are 0.032 %/A and 0.034 %/V that are superior to conventional current-mode and voltage-mode PWM control. Switching frequency of the ripple control regulator can be synchronized by a novel method that uses a phase-locked loop to lock the switching signal with an input clock. Voltage-mode and current-mode control circuits are presented for the buck and boost power stages, respectively. Both steady-state response and small-signal model are discussed. Derived transfer functions are useful for designing the control loop and compensation network. By. vi.

(8) taking linearization of the relationship of switching frequency and delay, a linear model is obtained for loop parameter design and PLL stability analysis. The proposed regulators were simulated in transistor level using SPICE. Input voltage and output voltage are 20 V and 1.5 V respectively for the buck regulator. During the steady state, the switching frequency was locked at 300 kHz. Load regulation is 0.0046 %/A and line regulation is 0.028 %/V. Input voltage and output voltage are 2.4 V and 3.3 V respectively for the boost regulator. During the steady state, the switching frequency was locked at 300 kHz. Load regulation is 0.96 %/A and line regulation is 0.75 %/V. More simulation results are also shown in this dissertation. Analog controllers are sensitive to noise, process, temperature and component variations. Tuning these controllers is quite complicated as well. The uses of digital controllers are limited by their complex circuits and higher cost. In this thesis, the proportional current feedback technique is proposed to accelerate transient response of the voltage-mode switching regulators. With this technique, the complexity of analog-to-digital conversion circuits and digital computation circuits is greatly reduced. Performance can be easily tuned by adjusting the parameters. Instead of transistor-level simulation, a Matlab behavior model is build to simulate time-domain system response. Fast and accurate results can be obtained from this model. The proposed control circuits are realized in a 0.6 µm CMOS technology with area of 1.8×1.8 µm2 including the I/O pads. Experimental results showed the output voltage dropped 150 mV and recovered to static tolerance in 100 µs during a load transient from 2 A to 20 A.. vii.

(9) The performance of the regulator met strict requirements and verified the simulation results.. viii.

(10) Ðá Imagination reaches out repeatedly trying to achieve some higher level of understanding, until suddenly I find myself momentarily alone before one new corner of nature’s pattern of beauty and true majesty revealed. That was my reward. — Richard Feynman. Ê>×ØÅí°çÞ®³, >áNû`¤Ø–²=àøÑp˚, ùäBÊç XíŒ¸,«ØABíj² ³4í2-Nû, ¥…²=dÿ.ª?êA > á307õðÇÕûPÅ—Ø½Ç`¤ ØÆ`¤ 5p−`¤£ÏïC`¤ Ê^“‚ÈíNû ¤Õ´b>áÚ−Íq@È`¤, ÖVÊÚ‰ÚäD−„Ü jÞTX7óçÖ£í‡ >á307õðíÏ‰Q²= Šä²= ðJ2²= ûo²= ıp¯ ²= 1çÅJ£ïìAÊù“ø…,ín¸ÞºjÞíNù, °v> áõ²= ¶_ Ùd^ ôz¤²= Šà ¶`p Zèã `ón d ¦ vB ŒÜ†Æÿ£±NôüdJCWU Group ç!b¸FõðAºÊ ®jÞíX¶›Œ, ÊÞº,6uB|ßíF- >á!>Öíò2£¤b, éB ˜¢.ÉuKè, ø˜•V.}g)”š >áBíÂf, 8B£íÙ˙, :Kô>BÅ× >áBíðA, úBG| Ì¢`í=-, .v#8B2¥DÉa >áBí`äÓQ, ¯±´-XMOB, -Ë&OøÙB?FAÿ “You are the reason I am. You are all my reasons” >áFÊB|Ûb6Œív`, #8Å ÉaíAb ãJ¤d.#©øPBb>áíA. ˝!l 200410~. ix.

(11)

(12) Table of Contents. 2d¿b. i. English Abstract. v. Ðá. ix. Table of Contents. xi. List of Tables. xv. List of Figures. xvii. 1 Introduction. 1. 1.1. Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1. 1.2. Trends and Challenges of Power Supply Design in Microelectronic Era . . .. 3. 1.2.1. High Efficiency . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 4. 1.2.2. Low Output Voltage and Low Noise . . . . . . . . . . . . . . . . . .. 4. 1.2.3. Compact Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 4. 1.2.4. Fast Transient Response . . . . . . . . . . . . . . . . . . . . . . . .. 5. 1.2.5. Wide Duty Ratio Range . . . . . . . . . . . . . . . . . . . . . . . .. 5. 1.2.6. Digital Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 6. 1.3. Motivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 6. 1.4. Research Goals and Contribution . . . . . . . . . . . . . . . . . . . . . . .. 8. xi.

(13) 1.5. Thesis Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2 Switching Regulator Basics 2.1. 2.2. 9 11. Voltage Regulators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2.1.1. Linear Regulators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11. 2.1.2. Switching Regulators . . . . . . . . . . . . . . . . . . . . . . . . . . 11. Modulation Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 2.2.1. Pulse-Width Modulation (PWM) . . . . . . . . . . . . . . . . . . . 14. 2.2.2. Pulse-Skipping Modulation (PSM) . . . . . . . . . . . . . . . . . . 14. 2.2.3. Pulse-Frequency Modulation (PFM) . . . . . . . . . . . . . . . . . 15. 2.3. Basic Converter Topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . 16. 2.4. Performance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 2.4.1. Efficiency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18. 2.4.2. Load Regulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19. 2.4.3. Line Regulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19. 2.4.4. Transient Response . . . . . . . . . . . . . . . . . . . . . . . . . . . 20. 2.4.5. Electromagnetic Interference (EMI) . . . . . . . . . . . . . . . . . . 21. 3 A Compact Digital Buck Controller with Proportional Current Feedback. 23. 3.1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23. 3.2. Digital Control for Switching-Mode DC–DC Converter . . . . . . . . . . . 24. 3.3. Proportional Current Feedback . . . . . . . . . . . . . . . . . . . . . . . . 25. 3.4. 3.3.1. Voltage-Mode and Current-Mode Control . . . . . . . . . . . . . . . 25. 3.3.2. Converter Load Transient Response . . . . . . . . . . . . . . . . . . 28. 3.3.3. Control Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . 30. Circuit Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 3.4.1. A/D converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34. xii.

(14) 3.5. 3.4.2. Digital Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37. 3.4.3. PWM Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39. Time Domain System Modelling and Simulation . . . . . . . . . . . . . . . 40 3.5.1. Behavior Modelling . . . . . . . . . . . . . . . . . . . . . . . . . . . 40. 3.5.2. Simulation Result . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42. 3.6. Experiment Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44. 3.7. Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49. 4 A Frequency Stabilized Constant On-Time Controller with Low Noise Susceptibility. 51. 4.1. Constant On-Time Control and Frequency Stabilization Technique . . . . . 52. 4.2. Stability Issues of Free-Running Control . . . . . . . . . . . . . . . . . . . 54. 4.3. 4.4. 4.5. 4.2.1. Noise Induced Instability . . . . . . . . . . . . . . . . . . . . . . . . 55. 4.2.2. Loop Gain of Free-Running Regulator. . . . . . . . . . . . . . . . . 55. Compensation and Circuits Implementation . . . . . . . . . . . . . . . . . 60 4.3.1. Error Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62. 4.3.2. Timing Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67. 4.3.3. Regulator System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69. Simulation and Experiment Results . . . . . . . . . . . . . . . . . . . . . . 71 4.4.1. Steady State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73. 4.4.2. Load Transient Response . . . . . . . . . . . . . . . . . . . . . . . . 76. 4.4.3. Line Transient Response . . . . . . . . . . . . . . . . . . . . . . . . 78. Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78. 5 Frequency Synchronized Ripple Controllers. 83. 5.1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83. 5.2. Voltage-Mode Ripple Control Buck Regulator with Fixed Output Frequency 84. xiii.

(15) 5.3. 5.2.1. Voltage-Mode Ripple Control Buck Regulators . . . . . . . . . . . . 84. 5.2.2. Circuit Design for Fixed Switching Frequency . . . . . . . . . . . . 86. 5.2.3. Phase-Locked Loop Analysis . . . . . . . . . . . . . . . . . . . . . . 93. 5.2.4. Design Considerations . . . . . . . . . . . . . . . . . . . . . . . . . 99. 5.2.5. Simulation Results . . . . . . . . . . . . . . . . . . . . . . . . . . . 109. Current Mode Ripple Control Boost Regulator with Fixed Output Frequency. 5.4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113. 5.3.1. Boost Converter Steady-State Analysis . . . . . . . . . . . . . . . . 114. 5.3.2. Boost Converter Small-Signal Analysis . . . . . . . . . . . . . . . . 119. 5.3.3. Current-Mode Ripple Control Boost Converter . . . . . . . . . . . . 124. 5.3.4. Circuit Design for Fixed Switching Frequency . . . . . . . . . . . . 126. 5.3.5. Design Considerations . . . . . . . . . . . . . . . . . . . . . . . . . 131. 5.3.6. Simulation Results . . . . . . . . . . . . . . . . . . . . . . . . . . . 139. Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142. 6 Conclusions and Future Works. 145. 6.1. Conclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145. 6.2. Future Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148. Bibliography. 149. v. 161. Publication List. 163. xiv.

(16) List of Tables 2.1. Linear vs. switching regulators. (typical) . . . . . . . . . . . . . . . . . . . 13. 2.2. Converter characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17. 3.1. Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45. 4.1. DC loop gain of buck regulator using proposed error amplifier. . . . . . . . 66. 4.2. Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72. 4.3. Performance summary and comparisons with other control schemes. . . . . 81. 5.1. Phase margins with various values of γ. . . . . . . . . . . . . . . . . . . . . 97. 5.2. Parameters of PLL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98. 5.3. Frequency selection guidelines [1]. . . . . . . . . . . . . . . . . . . . . . . . 100. 5.4. Parameters used in ripple control buck regulator. . . . . . . . . . . . . . . 109. 5.5. Parameters used in CMRC boost regulator.. xv. . . . . . . . . . . . . . . . . . 144.

(17)

(18) List of Figures 2.1. Linear regulator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12. 2.2. Switching regulator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12. 2.3. Switching signal of pulse-width modulation. . . . . . . . . . . . . . . . . . 14. 2.4. Switching signal of pulse-skipping modulation. . . . . . . . . . . . . . . . . 15. 2.5. Three basic converter topologies. . . . . . . . . . . . . . . . . . . . . . . . 16. 3.1. (a) Voltage-mode PWM DC–DC converter with a synchronous buck filter. (b) Current-mode controller. . . . . . . . . . . . . . . . . . . . . . . . . . . 26. 3.2. Actual waveform of LX when Ron of MOSFET is not zero. . . . . . . . . . 29. 3.3. Transient responses of the average inductor current (IL,avg ) and the output voltage during a load transient. . . . . . . . . . . . . . . . . . . . . . . . . 31. 3.4. Quantization table of error voltage. . . . . . . . . . . . . . . . . . . . . . . 32. 3.5. Proposed block diagram consists of: A/D converter, digital controller, and PWM generator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33. 3.6. Sampling and subtraction circuit for Vout . . . . . . . . . . . . . . . . . . . . 35. 3.7. Circuit diagram of the digital controller. . . . . . . . . . . . . . . . . . . . 37. 3.8. N -bit counter based PWM generator. . . . . . . . . . . . . . . . . . . . . . 39. 3.9. Behavior model for MATLAB simulation. . . . . . . . . . . . . . . . . . . . 41. 3.10 Step load transient response. Parameters are listed in Table 3.1. (a) Output voltage. (b) Inductor current. . . . . . . . . . . . . . . . . . . . . . . . . . 42. xvii.

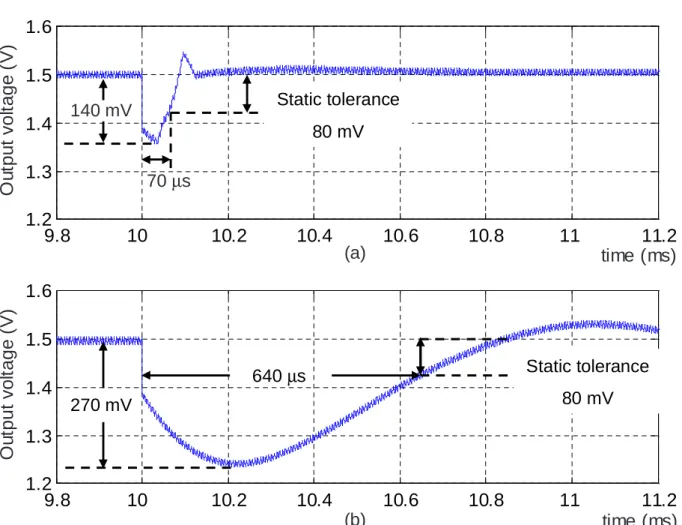

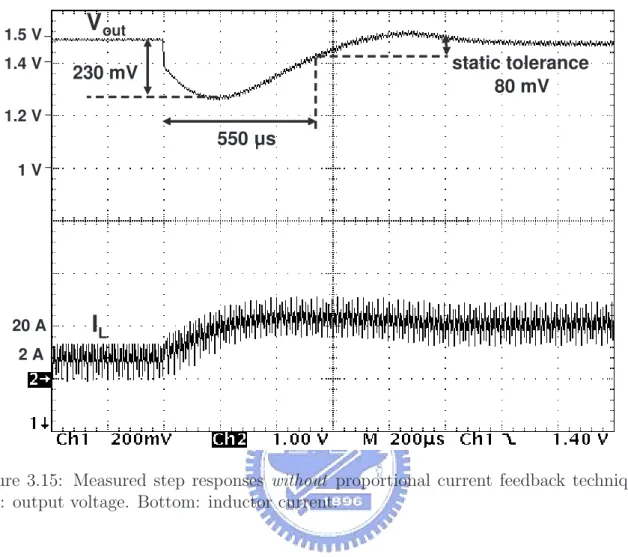

(19) 3.11 Zoomed waveforms of output voltage response. (a) With proportional current feedback, Vout dropped about 140 mV and returned to within static tolerance in less than 70 µs. (b) Without proportional current feedback, output voltage response didn’t meet the requirement. . . . . . . . . . . . . 43 3.12 Photomicrograph of the implemented chip. . . . . . . . . . . . . . . . . . . 45 3.13 Experiment setup.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46. 3.14 Measured step responses with proportional current feedback technique. Top: output voltage. Bottom: inductor current. . . . . . . . . . . . . . . . 47 3.15 Measured step responses without proportional current feedback technique. Top: output voltage. Bottom: inductor current. . . . . . . . . . . . . . . . 48 3.16 Measured power consumption at 2 A load. . . . . . . . . . . . . . . . . . . 49 4.1. Constant on-time buck regulator block diagram. . . . . . . . . . . . . . . . 53. 4.2. Constant on-time modulation waveform. . . . . . . . . . . . . . . . . . . . 53. 4.3. False triggering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56. 4.4. Ripple control regulator and modulation waveform. . . . . . . . . . . . . . 57. 4.5. Loop gain measurement of switching regulator. . . . . . . . . . . . . . . . . 59. 4.6. Loop gain of ripple control buck regulator. . . . . . . . . . . . . . . . . . . 60. 4.7. Loop gain of constant on-time control buck regulator. . . . . . . . . . . . . 61. 4.8. Gain compensated error amplifier. . . . . . . . . . . . . . . . . . . . . . . . 62. 4.9. Opamp schematic and specifications. . . . . . . . . . . . . . . . . . . . . . 63. 4.10 Simulated waveforms of error amplifier. . . . . . . . . . . . . . . . . . . . . 64 4.11 Proposed constant on-time modulation. . . . . . . . . . . . . . . . . . . . . 65 4.12 Loop gain of proposed constant on-time buck regulator. . . . . . . . . . . . 67 4.13 Duty ratio at different load currents of proposed constant on-time regulator. 68 4.14 Proposed regulator system including control IC and buck converter. . . . . 69 4.15 Waveforms in skip mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70. xviii.

(20) 4.16 Simulation result of digital soft-start operation. . . . . . . . . . . . . . . . 71 4.17 Chip photomicrograph of constant on-time controller. . . . . . . . . . . . . 72 4.18 Steady state waveforms at different load currents with VIN = 5 V and Vout = 1.71 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 4.19 Zero crossing point of inductor current at 5 mA load current. . . . . . . . . 75 4.20 Converter loop gain versus loading. . . . . . . . . . . . . . . . . . . . . . . 75 4.21 Measured efficiency versus load current with VIN = 5 V and Vout = 2.476 V. 76 4.22 Simulated load transient response. . . . . . . . . . . . . . . . . . . . . . . . 77 4.23 Measured load transient response in skip mode with VIN = 5 V and Vout = 1.71 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 4.24 Simulation result of line transient. . . . . . . . . . . . . . . . . . . . . . . . 80 5.1. Ripple control regulator block diagram. . . . . . . . . . . . . . . . . . . . . 84. 5.2. Output ripple of the voltage-mode ripple control regulator. . . . . . . . . . 85. 5.3. Frequency variations of the ripple control regulator. . . . . . . . . . . . . . 87. 5.4. Proposed ripple control buck regulator. . . . . . . . . . . . . . . . . . . . . 88. 5.5. Delay element.. 5.6. Phase-frequency detector. . . . . . . . . . . . . . . . . . . . . . . . . . . . 90. 5.7. Charge pump and loop filter. . . . . . . . . . . . . . . . . . . . . . . . . . . 91. 5.8. Hysteretic comparator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92. 5.9. Linear model of a PLL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89. 5.10 Switching frequency versus delay of ripple control buck regulator. . . . . . 95 5.11 Frequency response of PLL. . . . . . . . . . . . . . . . . . . . . . . . . . . 98 5.12 Required filter inductance at 200 kHz. . . . . . . . . . . . . . . . . . . . . 104 5.13 Required filter inductance at 300 kHz. . . . . . . . . . . . . . . . . . . . . 105 5.14 Required filter inductance at 450 kHz. . . . . . . . . . . . . . . . . . . . . 106 5.15 Required filter inductance at 600 kHz. . . . . . . . . . . . . . . . . . . . . 107. xix.

(21) 5.16 Comparison of allowable inductance range with different ESRs. . . . . . . . 108 5.17 Simulated load-transient responses. . . . . . . . . . . . . . . . . . . . . . . 108 5.18 Simulated line-transient responses. . . . . . . . . . . . . . . . . . . . . . . 110 5.19 Switching frequency comparison between the proposed and an original ripple control buck regulator during a line transient. . . . . . . . . . . . . . . 112 5.20 Boost converter schematic. . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 5.21 Boost converter waveforms in continuous conduction mode. . . . . . . . . . 115 5.22 Boost converter DC voltage gain. . . . . . . . . . . . . . . . . . . . . . . . 118 5.23 PWM switch model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 5.24 Effects of the RHP zero: a step increase in duty ratio causes a initial decrease in output voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . 123 5.25 Block diagram and waveforms of the current-mode ripple control regulator. 124 5.26 Inductor current waveform in a current-mode ripple control regulator. . . . 126 5.27 Frequency variations of the current-mode ripple control boost regulator. . . 129 5.28 Proposed frequency synchronized boost converter. . . . . . . . . . . . . . . 129 5.29 Type II error amplifier. (a)Configuration. (b)Gain and phase versus frequency characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130 5.30 Output voltage and inductor current waveforms of the boost converter. . . 133 5.31 Required filter inductance at 200 kHz. . . . . . . . . . . . . . . . . . . . . 136 5.32 Required filter inductance at 300 kHz. . . . . . . . . . . . . . . . . . . . . 137 5.33 Required filter inductance at 450 kHz. . . . . . . . . . . . . . . . . . . . . 138 5.34 Load transient responses: Comparison of the proposed with an original CMRC boost regulator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 5.35 Line transient response of proposed CMRC boost regulator. . . . . . . . . 140 5.36 Output Voltage, current command, and inductor current waveforms during line transient. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141. xx.

(22) 5.37 Switching frequency comparison between proposed and an original CMRC boost regulator during line transient. . . . . . . . . . . . . . . . . . . . . . 143. xxi.

(23) Chapter 1 Introduction 1.1. Background. The rapid advances in computer, communications, and consumer electronics technology are having a major impact on our everyday lifestyle. This trend has been largely due to recent advances in emerging VLSI and ULSI semiconductor technology. While the brain of an electronic system is usually referred to the CPU, the heart of the system is the power supply. The CPU processes data and the power supply processes electric power. Due to various voltage and current requirements of different applications, design of power supply has become an important issue. Power conversion usually refers to the process of converting different forms of power supply such as AC–AC (frequency changers, cyclo-converters), AC–DC (rectifiers, off-line converters), DC–AC (inverters), or DC–DC conversion. The role of DC–DC power conversion becomes more important in these years. Electronics products need to provide high-performance capabilities at low-power dissipation levels in compact packages at affordable prices. In order to achieve faster and more efficient circuit operations, signal swing inside integrated circuits should be as low as possible.. 1.

(24) CHAPTER 1. INTRODUCTION. One dominant part of the power consumption in a CMOS circuit is the dynamic power consumption: 2 Pd ∝ f × VDD. (1.1). where f is the operating frequency and VDD is the supply voltage. It is clear from the above equation that reducing the supply voltage VDD can reduce power consumption greatly due to their squaring relationship. In analog integrated circuits, voltage reduction also provides an effective mean to reduce the power consumption if the performance degradation is accepted or compensated. The demands for higher functionality, smaller device size, and lower power dissipation have brought new technological issues. They can be resolved using more advanced semiconductor processes to implement the so-called system-on-a-chip (SOC). The processes have been improved from 0.35 µm to 0.25 µm, 0.18 µm, 0.13 µm, 90 nm and smaller for commercial products. By utilizing these advanced processes, more circuits can be implemented into one single chip and system size and complexity are greatly reduced. As the dimension of transistor continues to shrink, the gate oxide thickness of MOSFET also becomes thinner. To prevent electric breakdown, the maximum allowable supply voltage has dropped with each generation of semiconductor technology. For example, it is 3.3 V for 0.35 µm technology and 1.8 V for 0.18 µm technology. The operating voltage of an integrated circuit requires to scale down in order to maintain the reliability. Another reason to perform DC voltage conversion is supply voltage boosting in portable equipments. Small-size and light-weight portable equipments such as MP3 players, cellular phones, pagers, and personal digital assistants (PDAs) provide convenient entertainment,. 2.

(25) 1.2. TRENDS AND CHALLENGES OF POWER SUPPLY DESIGN IN MICROELECTRONIC ERA. communication, and data access functions. The size and weight limitations restrict the number of battery cells. Thus, the input voltage provided by the batteries is usually lower than the chip supply voltage. Step-up voltage conversions are required in these systems. As a result, it is a trend to drive high performance chips with an optimum operating voltage. Voltage regulators have to convert supply voltage provided by either standard system supply or batteries to various chip supply voltages. For example, in a personal computer (PC) system, there are several supply voltages required for different circuits such as 1.5 V for CPU and chipset, 2.5 V for memory module, 3.3 V and 5 V for standard logic chips. Elementary switching-mode converters have been well known since the 1970’s [2–7]. They can provide a wide range of output voltages; no matter lower or higher than the input voltage. Another feature, also the most important one, of a switching-mode converter is its dramatic improvement in weight and efficiency compared to dissipative regulators. The efficiency can often be higher than 80 % compared to 60 % (maximum) of a 5 V-to-3 V linear regulator. The efficiency of a linear regulator decreases as the difference between input and output voltage increases. Therefore, the switching-mode converter is a major choice for most power systems.. 1.2. Trends and Challenges of Power Supply Design in Microelectronic Era. In this microelectronic era, high performance, long operating time, compact size and low cost are essential factors of a successful electronic product. For example, it is expected a third generation (3G) cellular phone can process extensive multimedia data with standby. 3.

(26) CHAPTER 1. INTRODUCTION. time of a week and size of the palm [8–10]. These requirements challenge traditional power supply control techniques and converter design. In this section, trends of power supply design in microelectronic era are described.. 1.2.1. High Efficiency. While transistor numbers inside a single chip continues to double every 18 months as Moore’s Law predicts, energy density of batteries has increased little. Conversion efficiency is particularly important in battery-powered equipments. Low heat production also saves space for heat ventilation. Advanced power management techniques and converter circuits design will help to extend battery life and shrink device size.. 1.2.2. Low Output Voltage and Low Noise. In portable and high performance systems, electronic systems are designed to operate at the optimal supply voltage [11, 12]. Low operating voltage of new generation integrated circuits has set tight tolerance of converter’s output. Communication and audio circuits are also sensitive to noise interference. Low output ripple and low noise are essential. Fast transient response is required to prevent large output deviation during step load transient. In addition, fixed frequency operation of switching-mode converters is favorable, because it is easier to filter out switching noise.. 1.2.3. Compact Size. Generally, switching-mode converters are composed of many discrete components that occupy large space. Since physical size minimization is a major design objective in portable devices, reductions of external component counts and size are trends of switching-mode. 4.

(27) 1.2. TRENDS AND CHALLENGES OF POWER SUPPLY DESIGN IN MICROELECTRONIC ERA. converter design [13, 14]. Significant energy is dissipated in the parasitic impedances of external interconnection and components [15]. Therefore, integrating external components decreases energy loss. Higher switching frequency can reduce the required sizes of filter inductor and capacitor and also improve efficiency [16]. Further physical size minimization can be made by integrating controller with microprocessor or other circuits [17, 18].. 1.2.4. Fast Transient Response. Microprocessors today exhibit much heavier load and faster current slew rate. Advanced power management techniques are usually adopted. When the system is in sleep mode, some circuits are shut down and operating voltage is scaled down in order to minimize standby current. The most challenging issue comes from step load transients when the system transits from sleep mode to full loading mode. These two modes correspond to minimum and maximum loading conditions respectively. The regulator has to maintain output voltage within tight tolerance during this fast slew-rate transient. These power requirements have become new challenges [8, 19–23].. 1.2.5. Wide Duty Ratio Range. Many portable devices are powered by multiple input sources such as AC adapter and batteries. Under these conditions, range of duty ratio variation is quite large. Unstable operations are observed when using traditional PWM control especially at very low duty ratio. Wide load range also causes duty ratio to change significantly.. 5.

(28) CHAPTER 1. INTRODUCTION. 1.2.6. Digital Control. Switching-mode converters are one of the few analog parts in today’s electronic system. Due to cost and some practical issues, digital control of switching-mode converters has not been widely used. Digital control [24–37] provides versatile functions that enable more powerful features of switching-mode power supply. Sophisticated control schemes, converter status monitoring, and system integration can be easily implemented in the digital way. Fast design cycle of digital circuits is another attractive advantage. It is also less sensitive to noise, process, temperature and component variations. As the cost per transistor continuing drop with the advance of semiconductor process, above advantages have made digital control a more attractive choice for today’s switching-mode power supply.. 1.3. Motivation. A desirable controller regulates output voltage tightly in the presence of input voltage and load current variations. Voltage-mode PWM control scheme is commonly used in switching-mode power supplies. Design of this control scheme is simple and straightforward. The output voltage is controlled by directly changing the PWM duty ratio. Therefore, this control scheme is also called direct duty control. However, its application is limited because of slow response. Another popular control scheme is current-mode PWM control, which is also called current-programmed control and current-injected control, was introduced in 1978 [38–43]. This control scheme utilizes dual loops to control both output voltage and inductor current. It effectively eliminates the phase lag of the fil-. 6.

(29) 1.3. MOTIVATION. ter inductor and makes loop compensation easier. However, current sensing elements not only require additional circuitry but also reduce efficiency. Moreover, switching noise can easily corrupt the sensed current signal. Therefore, instability caused by noise is common in a current-mode system [44, 45]. Instability problem also occurs at very low duty ratio caused by high input voltages and low output voltages, which is encountered in notebook computer systems. Variable-frequency control, also called free-running control [46, 47], includes constant on-time, constant off-time control [39, 48–51], and ripple control [26, 52–57]. Free-running control is the simplest among all control topologies of switching power supply. It performs tightest control over output voltage (voltage mode) or inductor current (current mode). Main advantages of the free-running control are fast transient response and wide duty cycle range. It also eliminates the need of external compensation parts, resulting in compact size and low cost. However, the switching frequency depends strongly on the operating conditions and power filters. Thus, the use is limited in noise sensitive devices. Besides, only few related literatures provide analytical insights into this kind of control. There exist many subjects to be investigated, such as loop gain transfer function and noise immunity. Switching-mode converters have shown their advantage in conversion efficiency. Severe system requirements for future DC–DC converters demand new control schemes. Traditional methods will not yield acceptable results. Control circuit design techniques of switching-mode DC–DC converters are main concerns of this dissertation. Free-running control is a strong candidate for a high performance DC–DC converter. Switching fre-. 7.

(30) CHAPTER 1. INTRODUCTION. quency stabilization, loop gain compensation, and noise immunizing techniques of freerunning control are important topics worthy of further investigation. Digital PWM control is another topic in this dissertation. Digital control of switching-mode converters has become a popular topic in these years. The uses of digital controllers are limited by their complex circuits and higher cost. It is desirable to build a simple and integrable digital controller to provide a high performance operation.. 1.4. Research Goals and Contribution. The goals of this research are to design and analyze high performance CMOS integrated circuits for switching-mode DC–DC converters. Fast response, tight regulation, high stability, fixed frequency, and compact size are key factors of a high performance converter. Several achievements have been worked out in this research and are highlighted below: • Developed a simple and fast response digital PWM controller that utilizes proportional current feedback technique to speed up load transient responses. Novel A/D Converter design and control circuits reduce system complexity. It is particularly suitable for system integration. • Derived loop gain of free-running control. Improved noise immunity and loop gain by utilizing a novel error amplifier. Low switching noise and low output ripple make proposed regulator suitable for low voltage applications. • Developed improved ripple control regulators with fixed output frequency. This frequency synchronizing technique extends the application of ripple control regulators to noise-sensitive systems. Circuit design considerations and PLL analysis were. 8.

(31) 1.5. THESIS ORGANIZATION. presented.. 1.5. Thesis Organization. Chapter 2 introduces basic terms of the switching regulators. Some fundamental specifications and requirements of switching regulators are introduced such that limitations and trade-offs for designing can be understood easily. Chapter 3 demonstrates a digital PWM controller for high current applications. Proportional current feedback technique is introduced to achieve fast load transient response and good load regulation. Chapter 4 investigates unstable phenomenon of free-running control. A novel error amplifier is introduced to improve noise immunity and stability of the constant on-time controller. Complete control circuits are built on a single chip to verify proposed technique. Chapter 5 presents improved ripple control regulators. Ripple control regulators are simple and effective. However, their switching frequency is varying with operating conditions. Techniques to obtain frequency-synchronized operations are proposed. Analysis and simulation results are shown in this chapter. Chapter 6 concludes this dissertation.. 9.
