Effects of Plasma Damage on Metal–Insulator–Metal Capacitors
and Transistors for Advanced Mixed-Signal/Radio-Frequency
Metal–Oxide–Semiconductor Field-Effect Transistor Technology
Wu-Te Weng, Yao-Jen Lee1, Hong-Chih Lin, and Tiao-Yuan Huang
Institute of Electronics, National Chiao Tung University, 1001, Ta-Hsueh Rd., Hsinchu 300, Taiwan
1National Nano Device Laboratories, 26, Prosperity Road I, Science-based Industrial Park, Hsinchu 300, Taiwan
Received November 6, 2008; accepted April 14, 2009; published online August 20, 2009
The effects of damage on mixed-signal (MS)/radio-frequency (RF) circuits integrated with metal–insulator–metal (MIM) capacitors and advanced metal–oxide–semiconductor field-effect transistors (MOSFETs) are studied in this work. The impact of damage on an MIM oxide is evaluated by connecting its capacitor top metal (CTM) to an upper-level metal with a large antenna ratio (ARCTM) used in an actual CTM
circuit connected to an interconnect. In addition to the dielectric degradation of a transistor, we also investigate the damage-enhanced negative bias temperature instability (NBTI) degradation of a transistor with its gate electrode connected to an MIM capacitor with a large ARCTMfor various gate oxide thicknesses. A model is proposed to explain the experimentally observed dependence of NBTI degradation
on ARCTMand accurately simulate failure distributions in the presence of plasma damage. #2009 The Japan Society of Applied Physics
DOI: 10.1143/JJAP.48.086001
1. Introduction
The integration of mixed-signal (MS)/radio-frequency (RF) components with capacitors in logic metal–oxide–semi-conductor field-effect transistors (MOSFETs) requires a high quality factor and reliable performance.1)
Plasma-process-ing-induced damage (P2ID) is well known to degrade both dielectric and transistor reliability.2) In silicon wafer
man-ufacturing, many plasma-processing steps, such as poly-crystalline silicon (poly-Si) etching,3) high-density-plasma
chemical vapor deposition (HDP-CVD),4)metal interconnect
etching,5) and photoresist ashing,6) are widely employed.
During plasma processing, a local imbalance of surface voltage potential across the oxide results in current flowing through the capacitor top metal (CTM) or gate electrode. The plasma damage current Iplasma can potentially break the Si–O bonds with increasing oxide leakage current and decreasing breakdown voltage VBD. Moreover, trap states in bulk SiO2 or a SiO2/Si substrate interface cause both threshold voltage instability and mobility degradation. Although subsequent annealing can eliminate the effects of P2ID, weak points in the bulk oxide and the SiO
2/Si substrate interface resulting from P2ID can further degrade the transistor reliability after reliability stressing. Although the P2ID-enhanced degradation in reliability of a single MOSFET7) or a stand-alone metal–insulator–metal (MIM)
capacitor8)has been previously studied, there have been no
studies on this issue for circuits comprising both MOSFETs and MIM capacitors.
In this study, both the damage mechanism and degrada-tion models for MIM oxides and transistor gate oxides are proposed. In addition to the dependence of plasma-induced degradation of floating-MIM capacitors, the effects of damage on an MIM capacitor with its capacitor bottom metal (CBM) connected to the substrate directly or through transistors (i.e., a tied-down MIM) were also investigated. More importantly, we also present, for the first time, the effect of damage on a transistor with its gate electrode connected to the CBM of an MIM capacitor (i.e., a tied-up transistor). In these structures, we demonstrate that the
impact of damage on transistor reliability strongly depends on gate oxide thickness, and we propose a power-law dependence for the degradation of reliability of a tied-up transistor on the antenna ratio of the CTM (ARCTM) of the MIM capacitor. Our models can accurately predict the failure distributions of negative bias temperature instability (NBTI) degradation due to P2ID.
2. Experimental Procedure 2.1 Wafer processing
Advanced MOSFETs with gate oxide thicknesses ranging between 1.5 and 3.5 nm were investigated in this study. Many process steps including shallow trench isolation (STI), and the formation of a triple well, dual polygate, shallow junction, and Co salicide were integrated for high-perform-ance circuit operation. In addition, to investigate a generic logic MOSFET process, MIM capacitors were constructed using advanced low-k/Cu technology. In this study, MIM capacitors were usually formed between two upper metal layers with an improved Q factor through reduced parasitic resistance. A lower-level metal (Mn-1) layer was used as a CBM, as shown in Fig. 1(a), and an oxide layer of approximately 30 nm thickness was subsequently deposited by plasma-enhanced chemical vapor deposition (PECVD) as an insulator. It was followed by the deposition and patterning of a thin TiN layer to serve as the CTM, which was then connected to an upper-level metal (Mn) through via holes. In contrast, for the tied-down MIM capacitors, the CBM was connected to either the active-area region (i.e., the substrate) or the transistor gate through a lower-level metal layer and a contact process, as shown in Figs. 1(b) and 1(c).
2.2 Test structure design
Figure 1(a) shows the test structure of the floating-MIM capacitor. During the plasma process, the plasma ions attacked the top area of the upper-level metal (Mn) while the dielectric film was deposited above the Mn layer by HDP-CVD system. The CTM, connected to the large antenna area of the Mn layer, was designed to investigate the effect of charging damage on the MIM capacitor and transistor yield. The antenna ratio was defined as
ARCTM
¼Area of upper metal layer connected to the CTM
Area of MIM capacitor :
ð1Þ Here, the MIM capacitor area is 5 5 mm2 and values of ARCTM of 100, 250, and 1000 are used for detecting various charging effects. The test structures of tied-down MIM capacitors are shown in Figs. 1(b) and 1(c). In contrast to the test structures of floating-MIM capacitors, the CBM of tied-down MIM capacitors was connected directly to the active area, as shown in Fig. 1(b), or to a transistor, as shown in Fig. 1(c). In the case of the tied-down MIM capacitors connected to the transistor gate electrode, as shown in Fig. 1(c), the transistor size was designed to have a unit area of 1 mm2. The transistor length and width were 0.2 and 5 mm, respectively.
2.3 Electrical measurements
The failure of the MIM capacitor was defined as a one-order increase in the leakage current compared with that of the undamaged MIM capacitor. The leakage current of the MIM capacitors was measured under an electric field of approximately 3 MV/cm. The gate oxide breakdown voltage VBD was measured by a voltage ramp method. The failure ratio of the MIM capacitor or transistor gate oxide was defined as the fraction of failed samples out of the total measured samples. In addition, NBTI measurements were performed on p-channel MOSFETs (PMOSFETs) under electric fields of 8 –10 MV/cm at 125C using an Agilent 4156 system. The NBTI lifetime was defined as the time until the transistor exhibited a 50 mV shift in threshold voltage.
3. Results and Discussion 3.1 Oxide degradation 3.1.1 Oxide damage model
Oxide breakdown was defined as the moment when a cluster of disconnected Si–O bonds from the SiO2/Si substrate interface (i.e., the bottom plate) reaches the poly-Si/SiO2 interface (i.e., the top plate). It is widely believed that defects existing in bulk oxides usually produce weak spots or trap centers that can trap charges. During plasma processing, the damage current flowing through the dielectric can be simulated with an equivalent voltage stress Vst or electric field stress Est, and is able to generate a large number of defects at the interface and bulk oxide region.9)In addition,
P2ID enhances the degradation of the dielectric owing to the extra current paths generated by the equivalent voltage stress Vstacross the oxide during P2ID. To simplify the analysis of the MIM capacitors and transistors damaged during wafer fabrication, the dependence of the effect of damage on ARCTMis introduced in terms of the damage current Iplasma to simulate the damage characterization. By assuming a fixed ARCTM for a given plasma process, Iplasma can be approximated as a constant current source of ‘‘damage current’’ passing through the oxide layer. With increasing ARCTM, the total damage current passing through the oxide layer increases proportionally to the ARCTM. Figure 2 shows the current–voltage curves for different oxide thicknesses and values of ARCTM. Iplasma can be approximated as a constant current for a given plasma process,10) and can be
written as Iplasma¼k ARCTM, where k is the plasma current when ARCTM¼1 (i.e., an antenna ratio of unity). During the plasma processing, oxide breakdown occurs at a plasma current density of approximately 2 – 20 A/cm2 according to
(c) ARCTM=A1/A2 Metal Mn MIM area=A2 Ant. area=A1 Metal Mn CTM CBM PEOX CTM CBM Metal Mn (Antenna area) (a) Active Area (Substrate) (b) Lower metal /contact process STI STI Active Area (MOSFET) Gate CBM (Metal Mn-1) Metal Mn-1 Plasma damage (Metal Mn-1)
Plasma damage Plasma damage
(Metal Mn-1) CBM STI STI CTM CTM Via Via Lower metal /contact process
Fig. 1. Schematic diagram of (a) floating-MIM capacitor, (b) tied-down MIM capacitor with CBM connected to substrate, and (c) tied-down MIM capacitor with CBM connected to transistor gate.
a previous study.11)Thus, the value of k can be assumed to
be 2 1010A in our experiments with a transistor size of 1 mm2 (i.e., for damaged structures with AR
CTM¼100, Iplasma¼2 A/cm2 and with ARCTM¼1000, Iplasma¼20 A/cm2). Moreover, for a tied-down MIM capacitor con-nected through a transistor, as shown in Fig. 1(c), it is evident that oxides with thicknesses of 30 and 3.5 nm show the effects of damage due to a damage current during the plasma process, as shown in Fig. 2. Comparing the plasma current–voltage characteristics with those of the oxide, Iplasmacorresponds to a voltage stress Vston the oxide during plasma processing. Enhanced oxide degradation resulting from plasma damage is also regarded as an increase in the equivalent voltage stress Vstacross the oxide during plasma processing. Clearly, Vst not only depends on ARCTM but is also affected by oxide thickness tox. Est, defined as Vst=tox, is a function of ARCTM, as shown in Fig. 3, i.e., a larger ARCTM results in a larger Est, causing much greater degradation of oxide reliability for all oxide thicknesses.
Moreover, Est also strongly depends on oxide thickness, which is predominantly related to the oxide tunneling mechanism. When the oxide thickness is greater than 3.5 nm, the oxide tunneling mechanism is dominated by Fowler–Nordheim (FN) tunneling, and it exhibits a greater ARCTM dependence on Est during the plasma process. In contrast, when the oxide thickness is reduced to 1.5 nm, the oxide tunneling mechanism is dominated by direct tunnel-ing, resulting in a lower ARCTM dependence on Est compared with the thick-oxide case.
3.1.2 Results for damage to tied-down MIM capacitors Figures 4 and 5 show the failure probabilities in leakage current of MIM capacitors for various ARCTMwith the CBM connected to the active area (i.e., the substrate) directly [Fig. 1(b)], and with the CBM connected to a transistor gate [Fig. 1(c)], respectively. Both of these test structures of tied-down MIM capacitors clearly show a significant failure distribution in leakage current as Iplasma increases, and the failure ratio depends on ARCTM. Furthermore, comparing
0 5 10 15 20 25 30 35 10-10 10-9 10-8 10-7 10-6 10-5 10-4 AR CTM=1000X AR CTM=100X AR CTM=10X ARCTM=1X I plasma=kARCTM Plasma current (ARCTM=1X)
Plasma current (ARCTM=10X)
Plasma current (ARCTM=100X)
Plasma current (ARCTM=1000X)
Curr ent (A) Voltage (V) Oxide current (tox=1.5nm) Oxide current (tox=3.5nm) Oxide current (tox=12nm) Oxide current (tox=30nm)
Fig. 2. Characteristics of measured oxide current and simulated damage current with respect to voltage. The oxide current curves were measured for gate oxide thicknesses of 1.5, 3.5, 12, and 30 nm. The damage current curves were simulated for antenna ratios ARCTM
of 1, 10, 100, and 1000. 1
x
10x
100x
1000x
0 5 10 15 20 25 30 35 40 0 5 10 15 20 25 30 35 2 4 6 8 10 12 14 16 18 20 Electric Field Str ess (MV/cm) tox(nm) ARCTM=1X ARCTM=10X ARCTM=100X ARCTM=1000X Electric Field Str ess Est (MV/cm)AR
CTM tox: 1.5nm tox: 3.5nm t ox: 12nm tox: 30nmFig. 3. Estimated electric field stress (Est) during plasma processing
as a function of ARCTM for different oxide thicknesses. The inset
shows Estas a function of oxide thickness for different ARCTM.
10-14 10-13 10-12 10-11 10-10 10-9 10-8 10-7 10-6 0.1 0.51 2 5 10 20 30 40 50 60 70 80 90 95 98 99 99.5 99.9 Vst VMIMS=Vst CMIM ARCTM=100X ARCTM=250X ARCTM=1000X Pr obability (%)
MIM Leakage Current (A)

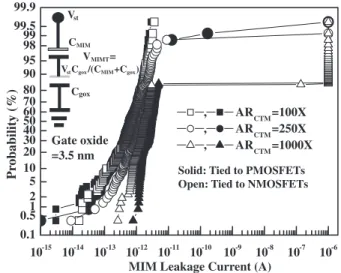

Fig. 4. Failure probability of leakage current for MIM capacitor connected directly to active area for various ARCTM. The inset shows a
schematic of the capacitor configuration.
10-15 10-14 10-13 10-12 10-11 10-10 10-9 10-8 10-7 10-6 0.1 0.51 2 5 10 20 30 40 50 60 70 80 90 95 98 99 99.5 99.9 VMIMT= VstCgox/(CMIM+Cgox)
Cgox
CMIM
Vst
Solid: Tied to PMOSFETs Open: Tied to NMOSFETs Gate oxide =3.5 nm , ARCTM=100X , ARCTM=250X , ARCTM=1000X Pr obability (%)
MIM Leakage Current (A)
Fig. 5. Failure probability of leakage current for MIM capacitor connected to transistor gate for various ARCTM. The inset shows a
these two test structures of tied-down MIM capacitors, the structure with the CBM connected to the transistor gate exhibits better resistance to damage than that with the CBM connected to the substrate directly. For an ARCTMof 1000, the failure ratio of tied-down MIM capacitors connected to the substrate is about 30%, which was reduced to 15% when the tied-down MIM capacitors were connected to the transistor. Theoretically, the increase in charge-induced surface potential can be obtained by considering the substrate as two capacitors in series, which is similar to a voltage divider. During the plasma process, the voltage stress Vst across the MIM oxide for the tied-down MIM capacitor connected to the substrate directly is denoted as VMIMS, as shown in Fig. 1(b); then, the voltage drop across the MIM oxide for the tied-down MIM capacitor connected to the transistor, denoted as VMIMT, as shown in Fig. 1(c), is given by
VMIMT¼Vst
Cgox CMIMþCgox
; ð2Þ
where CMIM is the capacitance of the MIM capacitor and Cgoxis the capacitance of the gate oxide. From eq. (2), it is evident that VMIMTis smaller than VMIMS, which results in a lower failure ratio in leakage current for the tied-down MIM capacitors connected to the transistor, consistent with the results shown in Figs. 4 and 5. To increase the resistance of the MIM capacitors and transistors to P2ID, it is possible to add a reverse-biased diode, as shown in Fig. 6, which is connected to the upper metal antenna with a large ARCTM. As a result, a large amount of charge collected from the upper metal antenna can be discharged to the substrate and does not accumulate on the CTM and damage the MIM capacitors and transistors. As shown in Fig. 6, an antenna structure with a reverse-biased diode for protection results in a damage-free MIM capacitor, independent of ARCTM, even for a large ARCTM of 1000.
3.1.3 Results for damage to floating-MIM capacitors From the proposed model, Iplasma¼k ARCTM, the value of k not only depends on the process conditions12)but is also
related to the configuration of the MIM capacitor. As shown in Fig. 7, the floating-MIM capacitor does not exhibit any effects of damage, irrespective of ARCTM. In addition, using the above concept of a voltage divider, the voltage drop across the floating-MIM oxide is denoted as VMIMF, where
VMIMF¼Vst
1 1 þ ðCMIM=CIMDÞ
: ð3Þ
The inter-metal-dielectric (IMD) layer is defined as the insulating layer between the CBM and the substrate with a thickness of approximately 300 –1000 nm, which is much thicker than the MIM oxide (i.e., only about 30 nm). From eq. (3), it is noted that VMIMFis smaller than Vstowing to the large value of CMIM=CIMD. Therefore, during the plasma process, the voltage drop is greater across the IMD oxide than the MIM oxide, and negligible damage current flows through the MIM oxide. To prevent damage to the tied-down MIM capacitor shown in Fig. 6, although it is possible to add an extra reverse-biased diode to discharge the charge, this increases the parasitic capacitance and leakage current. Therefore, in this study, we propose the use of a
floating-MIM capacitor, whose CBM can then be reconnected to the substrate or a transistor by an additional higher-level metal (Mn+1) rather than being tied down directly. In this way, damage and parasitic effects can both be eliminated simultaneously to meet the requirements of MS/RF appli-cations.
3.2 MOSFET reliability degradation 3.2.1 Gate oxide degradation
According to the discussion in §3.1.1 for the transistor gate electrode connected to the MIM capacitors with a large ARCTM, an equivalent voltage stress Vst can be created on the transistor gate oxide, resulting in a damage current flowing through the gate oxide during the plasma process. To measure such a transistor with its gate connected to the CBM of an MIM capacitor, as shown in Fig. 1(c), n-channel MOSFETs (NMOSFETs) and PMOSFETs with tox¼3:5 nm were fabricated and characterized. Figure 8 shows that the gate oxide failure ratio increases as a result of damage and is
10-13 10-12 10-11 10-10 10-9 10-8 10-7 10-6 10-5 10-4 0.1 0.51 2 5 10 20 30 40 50 60 70 80 90 95 98 99 99.5 99.9 Metal Mn CBM (Metal Mn-1) CTM Iplasma Diode ARCTM=100X ARCTM=250X ARCTM=1000X Pr obability (%)
MIM Leakage Current (A)
Fig. 6. Failure probability of leakage current for tied-down MIM capacitor upon adding a diode for protection to reduce the charging damage for various ARCTM. The inset shows a schematic of the test
structure. 10-14 10-13 10-12 10-11 10-10 10-9 10-8 10-7 10-6 0.51 2 5 10 20 30 40 50 60 70 80 90 95 98 99 99.5 VMIMF= Vst/(1+CMIM/CIMD) CIMD CMIM Vst CTM CBM Metal Mn-1 Metal Mn (Antenna area) Pr obability (%)
MIM Leakage Current (A)
ARCTM=100X
ARCTM=250X
ARCTM=1000X
Fig. 7. Failure probability of leakage current for floating-MIM capacitor for various ARCTM. The insets show schematics of the test
structure and capacitor configuration.
dependent on ARCTM, consistent with our damage model. In addition, the difference in the failure ratios between PMOSFETs and NMOSFETs is due to the oxide current– voltage characteristics. During a plasma process with a given Iplasma, PMOSFETs are stressed with a higher stress voltage, and therefore, the failure ratios of PMOSFETs are larger than those of NMOSFETs. Comparing the results of Figs. 8 and 5, it is noted that the failure probability of the gate oxide with tox¼3:5 nm is larger than that of the MIM oxide with tox ¼30 nm, consistent with the dependence of Est on the oxide thickness for various ARCTM, as shown in Fig. 3. To investigate the effect of charging damage for a large ARCTM on the core circuit, we further extend this study to ultrathin gate oxide transistors. For transistors fabricated with tox¼ 1:5 nm, the oxide-tunneling mechanism is dominated by direct tunneling, resulting in a smaller voltage stress Vst on the gate oxide during a given plasma process. The results of Fig. 9 again confirm that there is no failure in the transistor gate oxide, even for a large ARCTM. Obviously, for a given plasma process condition, Est strongly depends on the gate oxide thickness. More importantly, Fig. 3 shows that Estis a function of oxide thickness and exhibits a maximum in the range of 3.5 – 5.0 nm, independent of ARCTM. In addition, this range of oxide thickness results in the strongest ARCTM dependence on Est. This Estdependence implies that plasma-charging damage is a less serious concern for the transistor with an ultrathin gate oxide than for the transistor with a thick gate oxide. Correspondingly, a thinner gate dielectric was found to be robust against plasma-induced damage.13)
This is because Vstdecreases to near or below the anticipated operational voltage. The effect of damage on reliability is expected to be one of the most serious issues for input/ output (I/O) circuit applications in advanced MOSFET technologies, where the gate oxide thickness is in the range of 3.0 – 5.0 nm and the operational voltage is approximately 1.8 – 2.5 V. The failure probability of the gate oxide is effectively suppressed for an ultrathin gate oxide of 1.5 nm (Fig. 9) compared with that for a gate oxide thickness of 3.5 nm (Fig. 8). These results are consistent with our proposed model, according to which, a lower operation
voltage results in a lower Vst that is near the operation voltage; thus, a negligible failure probability of the gate oxide was found in the thin-gate-oxide region during the MIM capacitor plasma process.
3.2.2 Transistor reliability degradation model
P2ID is usually evaluated by monitoring the oxide leakage current13)or oxide breakdown voltage14)as demonstrated in
the above sections. The occurrence of additional gate oxide leakage indicates that additional current paths have been generated within the gate oxide. However, prior to the formation of a conductive path within the SiO2 bulk, the SiO2/Si substrate interface must accumulate a sufficient number of defects due to the damage process, resulting in the degradation of transistor reliability including the occur-rence of hot-carrier-injection (HCI) stress15) or NBTI stress.16) In other words, the degradation of transistor reliability occurs before the gate leakage increases. Com-paring the plasma with the oxide current–voltage character-istics shown in Fig. 10, Iplasma corresponds to a voltage stress Vst on the transistor gate oxide during processing. Aggravated transistor degradation resulting from plasma damage is therefore understood as an increase in the voltage stress Vst across the gate oxide during processing. More-over, we can express the relationship between ARCTM and Vst as
lnðARCTMÞ ¼CVst; ð4Þ where C is the slope of the gate oxide current–voltage characteristics shown in Fig. 10 and strongly depends on the gate oxide thickness. From eq. (4), we assume that the plasma damage in the gate oxide of transistors is similar to that caused by gate voltage stress. Defects introduced by the plasma damage are not usually evident following MIM capacitor processing because the postmetallization annealing passivates them.17) However, subsequent electrical stress,
such as NBTI, can reveal their existence since these defect sites are generally weaker than undamaged sites. Transistor reliability characteristics, such as NBTI, are greatly affected by interface/bulk trapping. Assuming that the gate voltage
-7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 1 2 5 10 20 30 40 50 60 70 80 90 95 98 99 PMOSFETs NMOSFETs Gate oxide=3.5nm ARCTM=100X ARCTM=250X ARCTM=1000X Pr obability (%)
Transistor Gate Oxide Breakdown,VBD (V)

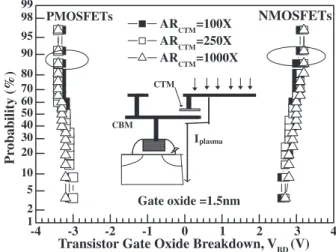

Fig. 8. Failure probability of gate oxide breakdown VBDmeasured
on NMOSFETs and PMOSFETs with tox¼3:5 nm and their gate
connected to the CBM of the MIM capacitor for various ARCTM. The
inset shows a schematic of the test structure.
-4 -3 -2 -1 0 1 2 3 4 1 2 5 10 20 30 40 50 60 70 80 90 95 98 99 CTM Iplasma CBM NMOSFETs PMOSFETs Gate oxide =1.5nm ARCTM=100X ARCTM=250X ARCTM=1000X Pr obability (%)
Transistor Gate Oxide Breakdown, VBD (V) Fig. 9. Failure probability of gate oxide breakdown voltage VBD
measured on NMOSFETs and PMOSFETs with tox¼1:5 nm and their
gate connected to the CBM of the MIM capacitor for various ARCTM.
stress Vstgenerated from plasma is uniform across the wafer, the number of interface states generated by the capture of Si–H bonds at the SiO2/Si substrate interface Nitresulting from the gate stress can be written in terms of the increase in the gate voltage stress Vst as18)
Nit¼BtpnexpðpEstÞ ¼BtnpexpðpVst=toxÞ; ð5Þ where tp is the duration of the plasma process and n ¼ 0:2. p is the field acceleration factor, which depends on the process conditions, and is about 0.1– 0.2 (decades/MV/cm) during plasma processing.19,20) B is a constant related to
process conditions.
During NBTI stress, holes in the inversion layer gain sufficient energy to dissociate the weak Si–H bonds, resulting in the generation of interface states. It is evident that all devices (i.e., the control and antenna) exhibit NBTI degradation. However, antenna devices are expected to have a higher concentration of weak Si–H bonds at the interface. For a constant gate oxide thickness tox, the threshold voltage shift VTH can be modeled as
VTH¼HtnARCTM; ð6Þ where t is the duration of NBTI electrical stress, H is a constant, and
¼ p=ðtoxCÞ: ð7Þ
The failure time tf, defined as the time required to reach a critical threshold voltage shift Vc, is
tf ¼GVcARCTMm; ð8Þ where G is a constant and m ¼ =n.
3.2.3 Results for degradation of transistor reliability Damage-enhanced NBTI degradation was also studied for the tied-down MIM capacitor connected to PMOSFETs of tox ¼3:5 and 1.5 nm. Figure 11 shows the ARCTM depend-ence of the NBTI degradation of the PMOSFETs. For transistors with tox ¼3:5 nm, the ARCTM dependence of the NBTI degradation follows a power-law relationship consis-tent with eq. (8). It further demonstrates that both the model and the experimental data show a power-law relationship
between the NBTI lifetime and ARCTM with m ¼ 0:3. From Fig. 10, it is evident that C is determined by the oxide conduction mechanism, and the antenna dependence m in eq. (8) can be significantly reduced with a larger C for ultrathin gate oxide transistors. Moreover, from Figs. 2 and 3, the smaller Vstand Estsuggest that damage is not a serious concern for the tied-up transistors with an ultrathin gate oxide compared with that for the transistors with a thick gate oxide. As a result, upon damage-enhanced NBTI lifetime degradation in ultrathin gate oxide transistors, a smaller and negligible dependence of NBTI degradation on ARCTM is also found, as shown in Fig. 11. On the basis of our experimental results, we confirm the impact of plasma damage during the MIM process on the transistor reliability for thick gate oxide transistors. However, because of the strong tox dependence of the damage process, the damage becomes insignificant for transistors with an ultrathin gate oxide of less than 1.5 nm.
3.3 Prediction of transistor reliability failure distribution From eqs. (4)–(8), one can predict the functional depend-ence of the NBTI degradation on plasma damage and the design parameters of ARCTMand tox. However, the amount of plasma damage may vary among transistors owing to different plasma conditions and values of ARCTM, and tox due to variations during processing. It is believed that all these process variations should follow normal distributions, resulting in a lognormal distribution of Vst from eq. (4). Accordingly, from eq. (5) it is expected that the variation in Nit during plasma damage should follow a normal distribution across a wafer. The NBTI lifetime is affected by the variation in Nit from eqs. (6)–(8). By assuming a nominally identical ARCTM and tox, and with the further assumption of a normal distribution of Nitð; Þ, a corresponding distribution of threshold voltage shift will be generated during NBTI stressing. Therefore, the mean value and standard variation of the distribution of Nit are both parameters dependent on ARCTM, as shown in eqs. (5) and (6). In this way, it is possible to construct a Monte Carlo simulation of the distributions of NBTI from the corresponding Nit distribution across the wafer.
5 6 7 10-10 10-9 10-8 Vst(ARCTM=1X) ARCTM=1X ARCTM=10X PMOS tox=3.5nm ln (ARCTM)=C∆Vst I plasma=k ARCTM Vst(ARCTM=10X) Slope=C Curr ent (A) Voltage (V)
Gate oxide current Iplasma (ARCTM=1X) Iplasma (ARCTM=10X)
Fig. 10. Characteristics of measured oxide current and simulated damage current with respect to voltage as a function of ARCTM on
PMOSFET with tox¼3:5 nm. 1000X 100X Data tox=3.5nm Model tox=3.5nm Lifetime ~ AR CTM -0.3 AR CTM Data t ox=1.5nm
NBTI Lifetime (arb
. unit)
Fig. 11. PMOSFET NBTI lifetime versus ARCTMfor transistors with
tox¼3:5 and 1.5 nm.
Figure 12 shows the NBTI lifetime distribution as a function of ARCTM. In this case, the simulated distributions are in excellent agreement with those determined experimentally.
From Fig. 12, the impact of plasma damage on the transistor failure distribution is that it causes a severe distortion of the lognormal distribution at high percentiles. At low percentiles, the distribution slope is almost in-dependent of ARCTM, and failure times are reduced in accordance with eqs. (4)–(8). Moreover, there is no indica-tion in the experimental data of the presence of an early failure distribution arising from a defective subpopulation, as required for our proposed model.
4. Conclusions
In this study, plasma-induced damage creates significant numbers of defects and weakened interface bonds in both the MIM oxide and the transistor gate oxide that can be easily damaged during reliability testing. The increased rate of generation of bulk/interface states leads to enhanced oxide failure and transistor degradation. We have conducted a comprehensive study of the effect of MIM plasma damage on capacitor and transistor reliability. Our results show that the degradation of the MIM capacitor and the transistor depend on the antenna ratio of the upper-level metal connected to the CTM (ARCTM) and the oxide thickness.
In addition, our model shows that the NBTI degradation of transistors exhibits identical dependence on a design parameter of the MIM capacitor, i.e., ARCTM. We further confirm that the transistor with a thick gate oxide is more susceptible to plasma damage than that with a thin oxide for a tied-down MIM capacitor. We have experimentally verified our transistor reliability degradation model and shown that the plasma damage failure distribution deviates significantly from the lognormal distribution with increasing ARCTM, as a result of variations in plasma processing between transistors in the presence of MIM plasma damage.
1) S. Naxhed, M. J. Deen, and C. H. Chen:IEEE Trans. Device Mater. Reliab. 5 (2005) 501.
2) S. Krishnan, A. Amerasekera, S. Rangan, and S. Aur: IEDM Tech. Dig., 1998, p. 601.
3) B. W. Chan, Y. H. Liou, and M. H. Chi: P2ID Dig., 2000, p. 54. 4) K. M. Byun, D. H. Kim, Y. W. Cha, S. H. Lee, M. Kim, J. B. Lee, I. S.
Park, H. D. Lee, and C. L. Song: ICICDT Dig., 2005, p. 99. 5) J. Ackaert, B. D. Eddy, C. Peter, and C. Martin: P2ID Dig., 2000, p. 77. 6) S. Q. Gu, R. Fujimoto, and M. Peter: P2ID Dig., 2002, p. 88. 7) W. T. Weng, A. S. Oates, and T. Y. Huang: IRPS Dig., 2007, p. 364. 8) Z. Wang, J. Ackaert, C. Salm, F. G. Kuper, M. Tack, E. D. Backer, P. Coppens, D. S. Luc, and B. Vlachakis: IEEE Trans. Electron Devices 51 (2004) 1017.
9) R. Degraeve, G. Groseneken, R. Bellens, J. L. Ogier, M. Depas, P. J. Roussel, and H. Maes:IEEE Trans. Electron Devices 45 (1998) 904. 10) A. T. Krishnan, S. Krishnan, and P. Nicollian: IEDM Tech. Dig., 2002,
p. 525.
11) K. P. Cheung, C. T. Liu, C. P. Chang, J. I. Colonel, W. Lai, C. Pai, H. Vaidya, R. Liu, J. T. Clemens, and E. Hasegawa: P2ID Dig., 1998, p. 34.
12) D. P. Verret, A. T. Krishnan, and S. Krishnan:IEEE Trans. Electron Devices 49 (2002) 1274.
13) K. P. Cheung: IRPS Dig., 2006, p. 360.
14) G. Cellere, M. G. Valentini, and A. Paccagnella: P2ID Dig., 2001, p. 40.
15) J. Ackaert, Z. Wang, E. D. Backer, and C. Salm: P2ID Dig., 2002, p. 45.
16) A. T. Krishnan, V. Reddy, and S. Krishnan: IEDM Tech. Dig., 2001, p. 28.
17) P. Reiss, R. Kies, G. Ghibaudo, G. Pananakakis, and J. Brini: Microelectron. Reliab. 38 (1998) 1057.
18) S. Mahapatra, P. B. Kumar, and M. A. Alam:IEEE Trans. Electron Devices 51 (2004) 1371.
19) A. E. Islam, G. Gupta, S. Mahapatra, A. T. Krishnan, K. Ahmed, A. Oates, and M. A. Alam: IEDM Tech. Dig., 2006, p. 329.
20) S. Chen, C. Fun, S. M. Jang, C. H. Yu, and M. S. Liang: P2ID Dig., 2002, p. 76. -2 -1 0 1 PMOS tox=3.5nm AR CTM=100X (Data) AR CTM=250X (Data) AR CTM=250X (Simulation) AR CTM=1000X(Data) AR CTM=1000X(Simulation) W eib ull ln(-ln(1-F))
NBTI Lifetime (arb. unit)
Fig. 12. Simulation results of PMOS NBTI lifetime distribution for various ARCTMfor transistors with tox¼3:5 nm.
