(1)

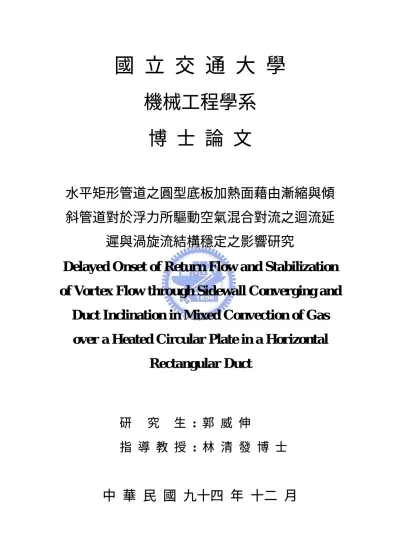

國 立 交 通 大 學

機械工程學系

博 士 論 文

水平矩形管道之圓型底板加熱面藉由漸縮與傾

斜管道對於浮力所驅動空氣混合對流之迴流延

遲與渦旋流結構穩定之影響研究

Delayed Onset of Return Flow and Stabilization

of Vortex Flow through Sidewall Converging and

Duct Inclination in Mixed Convection of Gas

over a Heated Circular Plate in a Horizontal

Rectangular Duct

研 究 生 : 郭 威 伸

指 導 教 授 : 林 清 發 博 士

(2)

水平矩形管道之圓型底板加熱面藉由漸縮與傾斜管道對於浮力

所驅動空氣混合對流之迴流延遲與渦旋流結構穩定之影響研究

Delayed Onset of Return Flow and Stabilization of Vortex Flow through

Sidewall Converging and Duct Inclination in Mixed Convection of Gas

over a Heated Circular Plate in a Horizontal Rectangular Duct

研 究 生:郭 威 伸 Student:Wei-Shen Kuo

指導教授:林 清 發 Advisor:Tsing-Fa Lin

國立交通大學

機械工程學系

博士論文

A Thesis

Submitted to Institute of Mechanical Engineering

Collage of Engineering

National Chiao Tung University

in Partial Fulfillment of the Requirements

for the degree of

Doctor of Philosophy

in

Mechanical Engineering

December 2005

(3)
(4)

水平矩形管道之圓型底板加熱面藉由漸縮與傾斜管道對於浮力

所驅動空氣混合對流之迴流延遲與渦旋流結構穩定之影響研究

研究生:郭威伸 指導教授:林清發 教授

國立交通大學機械工程學系

摘 要

本論文係以探討在水平矩形管道圓型底板加熱面管道內之空氣

混合對流,浮力驅動之流場變化。實驗操作參數範圍雷諾數介於

5 到

50 之間,雷利數則由 7,200 到 21,000,針對漸縮與傾斜管道對於浮力

所驅動空氣混合對流之迴流延遲與渦旋流結構穩定之影響研究。

第一部份將管道漸縮逐漸加速主流場速度,實驗中將測試段分別

漸縮

5.7°與 11°,探討低雷諾數流場穩定性,實驗主要利用流場可

視化及溫度量測方法探討渦流的特性,實驗結果並將與矩形管道作比

較,針對在漸縮管道對縱向渦流(longitudinal roll)、橫向渦流(transverse

roll) 、 迴 流 (Return Flow) 的 效 應 , 實 驗 結 果 顯 示 在 低 的 浮 慣 比

(buoyancy-to-inertia ratio),與矩形管道相比較後發現漸縮管道會導致

縱向渦流發生的位置較為延後,在高浮慣比,由於管道漸縮逐漸加速

主流場速度,流場型態由不穩定渦流流場轉變成規律縱向渦流流場,

(5)

測亦指出管道漸縮能有效抑制與消除流場中不規則的震盪。

第二部份,針對空氣於水平矩形管道圓型底板加熱面的傾斜管道

中,藉由流場觀測及溫度量測來探討管道傾斜角度對空氣混合對流渦

流結構的影響。本實驗的角度範圍介於

1°與 2°之間以探討稍微傾

斜傾斜管道中迴流與渦旋流結構的軸向發展過程,在稍微傾斜角的情

況下,順向混合對流(aiding mixed convection) 即浮力作用在流動方

向,結果指出,由於傾斜時浮力助流的作用,使得流場規律且平順,

迴流結構尺寸縮小與強度減弱,迴流和渦旋流結構的起始點較水平延

後發生;溫度量測顯示,流場中不規則的溫度震盪亦有效的被壓制與

消除,浮力成為穩定流場之因素。

最後,根據漸縮與傾斜管道之實驗所得結果分別提出一個與浮慣

比有關用來判別回流存在與否的判別法則亦即迴流發生參數之經驗

公式,並由流場組織圖說明在傾斜管道內,不同流場型態之邊界。

(6)

Delayed Onset of Return Flow and Stabilization of Vortex

Flow through Sidewall Converging and Duct Inclination in

Mixed Convection of Gas over a Heated Circular Plate in a

Horizontal Rectangular Duct

Student: Wei-Shen Kuo Advisor: Prof. Tsing-Fa Lin

Institude of Mechanical Engineering

National Chiao Tung University

ABSTRACT

In this study an experimental flow visualization combined with temperature measurement are conducted to investigate how the sidewall converging and duct inclination affect the buoyancy induced return flow structure and stabilization of vortex flow in mixed convection of gas in a horizontal rectangular duct. The buoyancy driven secondary flow including the return flow and vortex flow is driven by a heated circular disk embedded in the bottom plate of the duct, simulating that in a horizontal longitudinal MOCVD reactor. Specifically, in the first part of the present study the sidewalls of the duct are inclined toward the duct core so that the gas flow in the duct is accelerated, causing the buoyancy-to-inertia ratio to decrease in the main flow

(7)

direction. While in the second part of the study the duct is inclined upwards with its exit end above the entry end and the component of the buoyancy force normal to the heated plate is reduced. In the experiment the Reynolds and Rayleigh numbers of the flow at the duct inlet are respectively varied from 5 to 50 and from 7,200 to 21,000. In the first part of the study the duct aspect ratio is reduced from 20 at the inlet to 16 or 12 at the exit. The duct is slightly inclined from the horizontal in the second part. Particular attention is paid to delineating the spatial changes of the return flow structure with the sidewall converging and to explore how the duct inclination possibly suppresses and stabilizes the secondary flow.

The results obtained in the study show a substantial delay in the onset of the return flow and the effective suppression of the buoyancy driven unstable longitudinal and transverse vortex flows by the sidewall converging and the duct inclination. Besides, the sidewall converging and the duct inclination can weaken the return flow more effectively at slightly higher Reynolds numbers. An empirical equation is provided to correlate the present data for the onset condition of the return flow in the duct. Some preliminary results from the second part of the study indicate that the slight inclination of the duct at 2 ° can significantly weaken the return flow. The reduction in the size of the return flow zone and the intensity of the return flow is prominent. Besides, the onsets of longitudinal and transverse vortex rolls are delayed substantially.

(8)

誌 謝

本論文得以順利完成,首先要由衷的感謝指導教授 林清發博

士,在攻讀博士學位的過程中,不論是在研究工作、論文寫作以及待

人處事上諸多啟迪,給予我長期的耐心指導並提供我良好的研究設備

與環境,讓我能順利完成博士學位,浩瀚師恩永銘於心,謹誌於此,

以表由衷之感謝與敬意。

感謝博士論文口試委員成功大學機械系何清政教授、清華大學動

機系洪英輝教授、清華大學工科系潘欽教授、交通大學機械系陳俊勳

教授與吳宗信教授提供寶貴的指正與值得深思探討的建議,使得本論

文更臻完善。

感謝熱質對流實驗室的學長杜志龍、鄭宗杰、謝雅意在實驗研究

上的協助與建議,同學謝瑞青與學弟賴佑民、陳尚緯、謝汎鈞、詹立

偉、王正郁、白榮源、陳建安、林君達…等,感謝你們在我博士班的

日子裡,給我很多幫助,使研究得以順利,也讓生活更有樂趣,亦感

謝在交通大學求學期間所有教導我的老師,使我在學識的領域上有所

成長與突破。

感謝父母親一直以來在經濟與精神上無盡的付出與支持,使我擁

有良好的學習環境,安心的完成學業,感謝祖母、妹妹怡伶、小菁在

(9)

作研究的過程中所給予支持與鼓勵。博士班的日子裡,真的很感謝我

最心愛的老婆-梨暖,在我最低潮的時候有妳陪我一起渡過,最開心

的時候有妳跟我一起分享;謝謝我的家人對我所付出的一切,讓我在

此致上我最誠摯的感謝。

謹以此論文獻給我最親愛的祖母、父母親以及我的家人,謝謝您

們的關懷、支持與鼓勵。

威伸

乙酉年歲末 于交大

(10)

CONTENTS

中文摘要 i ABSTRACT iii 誌謝 v CONTENTS vii LIST OF TABLES ix LIST OF FIGURES x NOMENCLATURE xvi CHAPTER 1 INTRODUCTION 1 1.1 Characteristics of Longitudinal and Transverse Rolls 3 1.2 Characteristics of Return Flows 6 1.3 Vortex Flow Stabilization 12 1.4 Objective of the Present Study 14 CHAPTER 2 EXPERIMENTAL APPARATUS AND PROCEDURES 18 2.1 Experimental Apparatus 18 2.2 Analysis of Time-average and Instantaneous Air

Temperature

22 2.3 Investigation of Flow Field 23 2.4 Experimental Procedures 24 2.5 Uncertainty Analysis 24 CHAPTER 3 EFFECTS OF SIDEWALL CONVERGING ON

RETURN FLOW

34 3.1 Vortex Flow Characteristics 35 3.2 Return Flow Characteristics 38

(11)

3.3 Critical Conditions for Onset of Return Flow 40 3.4 Vortex Flow Stabilization 41 CHAPTER 4 EFFECTS OF DUCT INCLINATION ON VORTEX

FLOW AND RETURN FLOW

54 4.1 Vortex Flow Characteristics 54 4.2 Return Flow Characteristics 56 4.3 Flow Regime Map 59 4.4 Critical Conditions for Onset of Return Flow 59 CHAPTER 5 PRELIMINARY CONCLUDING REMARKS AND

FUTURE WORK

77

REFERENCES 79

(12)

LIST OF TABLES

(13)

LIST OF FIGURES

Fig. 1.1 (a) Schematic of the transverse rolls, (b) representation of longitudinal rolls in the rectangular channel and (c) the formation of the return flow.

Fig. 1.2 Pictures from the characteristic flow visualization in a horizontal flat duct uniformly heated from below [1,2].

Fig. 2.1 Schematic of experimental apparatus and the chosen coordinate system for the test section.

Fig. 2.2 Schematic drawing of test section

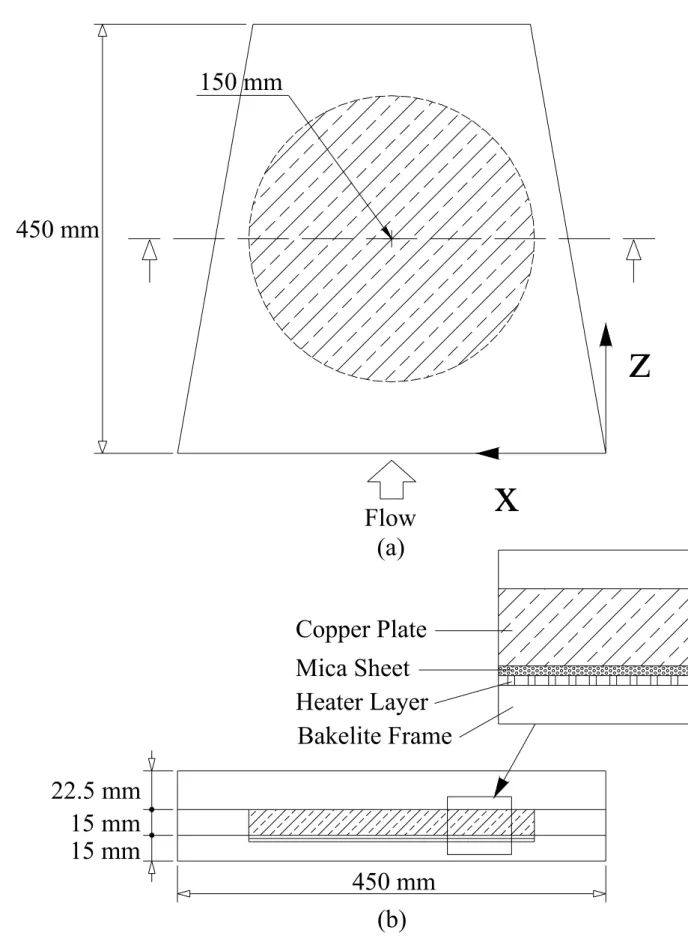

Fig. 2.3 Schematic of the test section from (a) top view and (b) cross-sectional view showing the design of the bottom plate.

Fig. 2.4 Schematic of experimental inclined apparatus and the chosen coordinate system for the test section.

Fig. 2.5 Locations of the thermocouples (a) and the seven concentric heater sections (b).

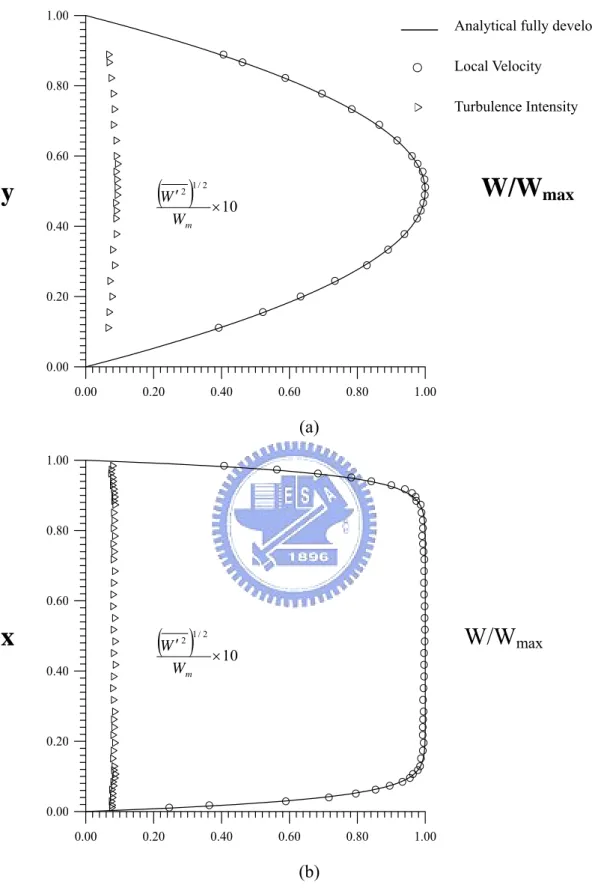

Fig. 2.6 Comparison of the measured axial velocity profiles W/Wmax at the inlet of

test section with the analytical solution from Shah and London(1978) for Re=100 at (a)x=0.5 and (b)y=0.5.

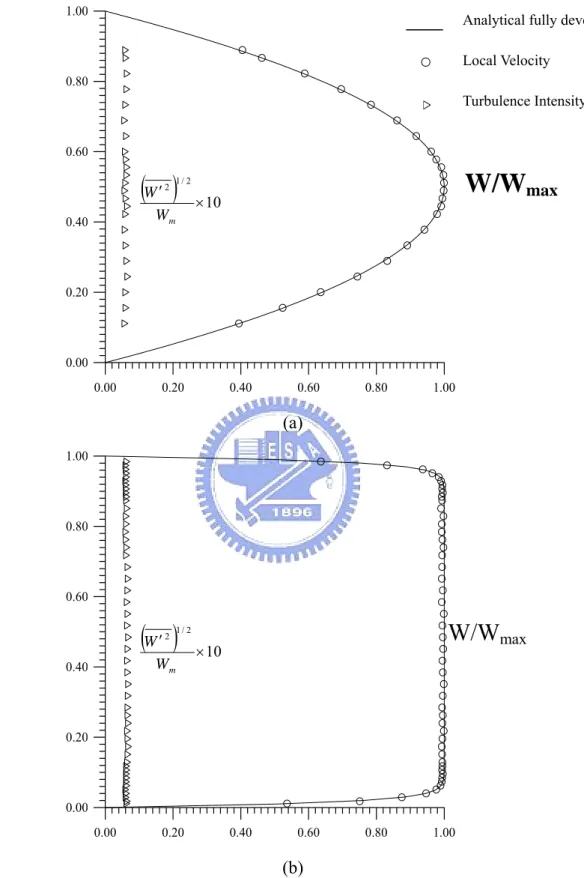

Fig. 2.7 Comparison of the measured axial velocity profiles W/Wmax at the inlet of

test section with the analytical solution from Shah and London(1978) for Re=10 at (a)x=0.5 and (b)y=0.5.

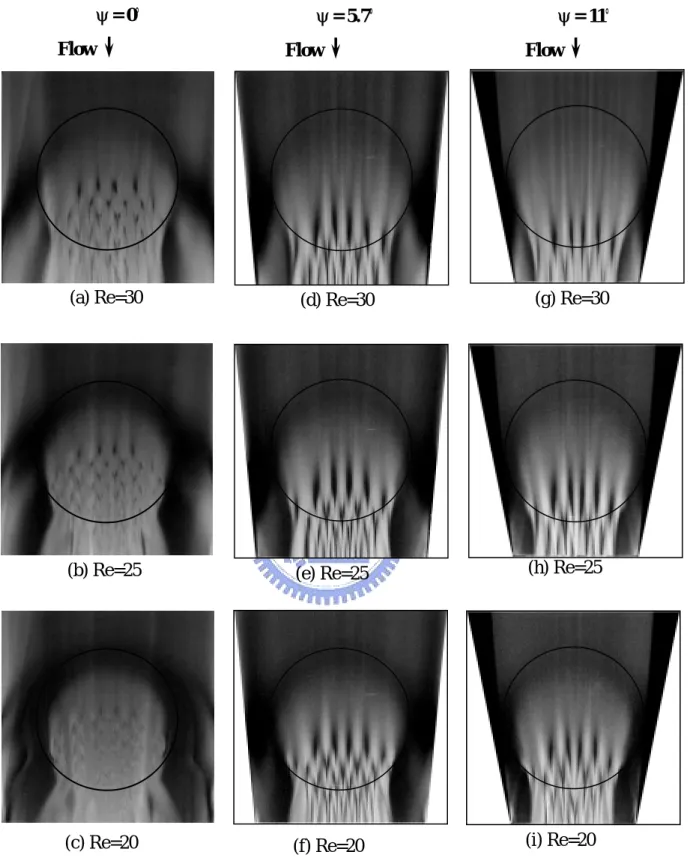

Fig. 3.1 Top view flow photos of longitudinal vortex flow taken at the middle horizontal plane y = 1/2 at steady or statistical state in the duct with the sidewalls inclined at different angles for Ra = 9,500 for various Reynolds numbers.

(14)

Fig. 3.2 Top and end view flow photos at steady state in rectangular duct (ψ= 0 ° ) for Re = 28.6 and Ra = 17,500taken at the plane y = 1/2 and at the cross sections z = (a) 0.1, (b) 0.2, (c) 0.3, (d) 0.4, (e) 0.5, (f) 0.6, (g) 0.7, (h) 0.8 and (i) 0.9. (The dark bars right below the side view photos signify the location of the heated circular disk)

Fig. 3.3 Top and end view flow photos at steady state in convergent duct (ψ= 11 ° ) for Re = 27.8 and Ra = 17,600taken at the plane y = 1/2 and at cross sections z = (a) 0.1, (b) 0.2, (c) 0.3, (d) 0.4, (e) 0.5, (f) 0.6, (g) 0.7, (h) 0.8 and (i) 0.9. (The dark bars right below the side view photos signify the location of the heated circular disk)

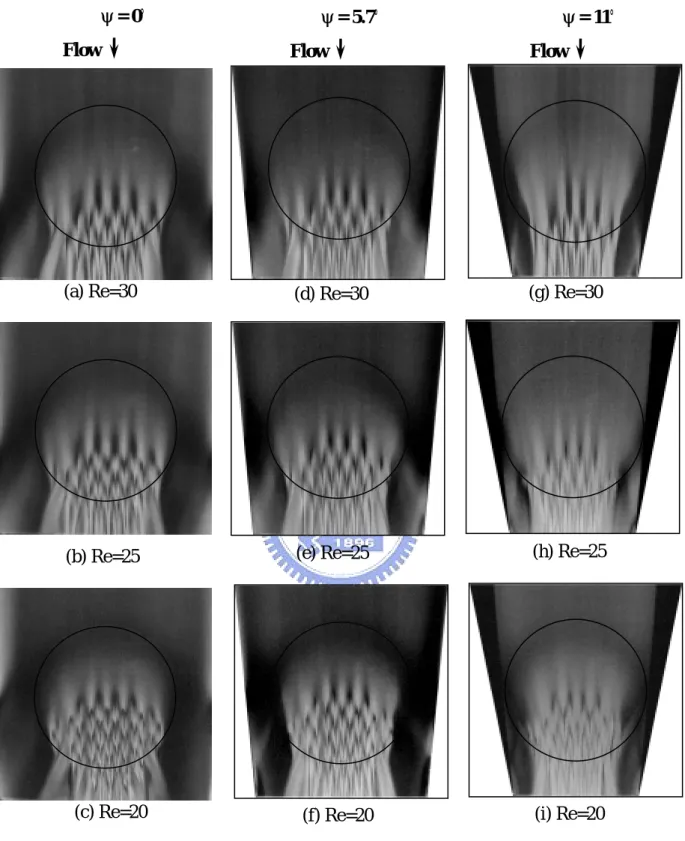

Fig. 3.4 Top view flow photos of longitudinal vortex flow taken at the plane y = 1/2 at steady state or at certain time instant in statistical state in the duct with the sidewalls inclined at different angles for Ra = 13,800 for various Reynolds numbers.

Fig. 3.5 Top view flow photo taken at the plane y = 1/2 (a) and side view flow photos taken at the planes: x = 0.5 (b), 0.4 (c), 0.3 (d), 0.2 (e) at statistical state for Re = 10.1 and Ra = 11,600 in rectangular duct (ψ=0 ° ). (The dark bars right below the side view photos signify the location of the heated circular disk)

Fig. 3.6 Top view flow photo taken at the plane y = 1/2 (a) and side view flow photos taken at the planes: x = 0.5 (b), 0.4 (c), 0.3 (d), 0.2 (e) at statistical state for Re = 5.1 and Ra = 11,600 in convergent duct (ψ=11 ° ). (The dark bars right below the side view photos signify the location of the heated circular disk)

(15)

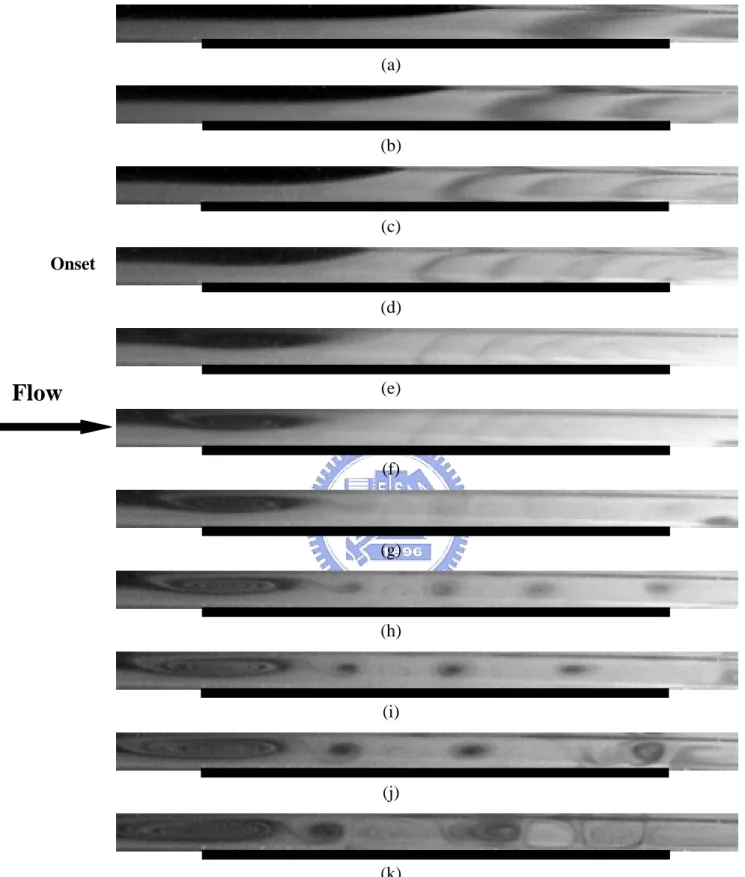

rectangular duct at Ra=11,600 for (a) Re=50, (b) Re=40, (c) Re=30, (d) Re=25, (e) Re=20, (f) Re=17.5, (g) Re=15 (h) Re=12.5, (i) Re=10, (j) Re=7.5, and (k) Re=5.

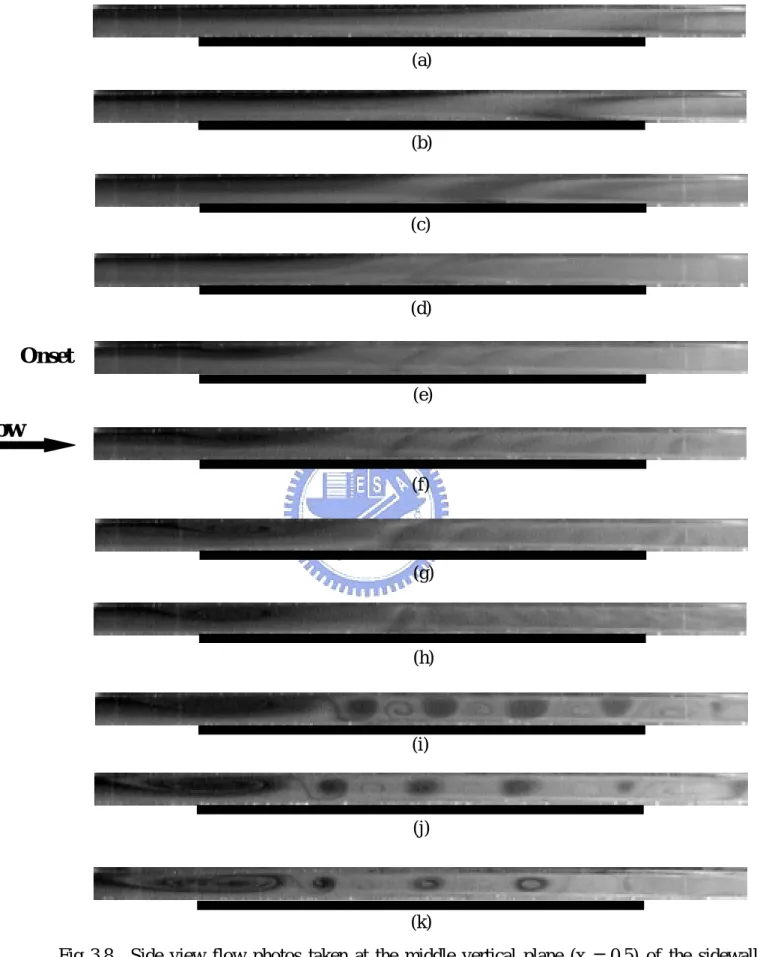

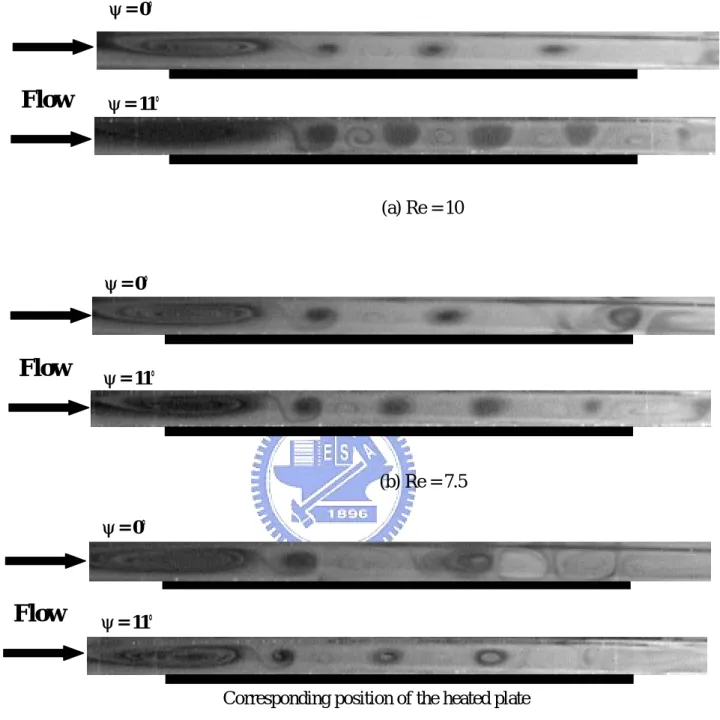

Fig. 3.8 Side view flow photos taken at the middle vertical plane (x = 0.5) of the sidewall inclined duct (ψ=11 ° ) at Ra=11,600 for (a) Re=50, (b) Re=40, (c) Re=30, (d) Re=25, (e) Re=18.4, (f) Re=17.5, (g) Re=15 (h) Re=12.5, (i) Re=10, (j) Re=7.5, and (k) Re=5.

Fig. 3.9 Side view flow photos taken at the vertical central plane x = 0.5 at steady or statistical state in the duct with ψ= 0 ° and 11° for Ra= 11,600 at Re = 10 (a), 7.5 (b), and 5(c). (The dark bars right below the side view photos signify the location of the heated circular disk)

Fig. 3.10 Critical conditions for the onset of return flow in the duct withψ=0 ° , 5.7 ° and 11 ° .

Fig. 3.11 Side view flow photos of vortex flow in rectangular duct at certain time instants in the statistical state and time records of air temperature at selected locations on the plane y=1/2 at x=0.5 (a), 0.4 (b) and 0.2 (c) for Re=10.1 and Ra=11,600. (The dark bars right below the side view photos signify the location of the heated circular disk)

Fig. 3.12 Side view flow photos of vortex flow in the convergent duct (ψ = 11 ° ) at certain time instants at the statistical state and time records of air temperature at selected locations on the plane y=1/2 at x=0.5 (a), 0.4 (b) and 0.2 (c) for Re=10.1 and Ra=11,600. (The dark bars right below the side view photos signify the location of the heated circular disk)

Fig. 4.1 Top view flow photos taken at the middle horizontal plane y = 1/2 at steady or statistical state in the horizontal duct for Ra =11,600 at (a) Re = 50, (b) Re

(16)

= 40, (c) Re = 30, (d) Re = 25, (e) Re = 20, (f) Re = 15, (g) Re = 10, and (h) Re = 5.

Fig. 4.2 Top view flow photos taken at the middle horizontal plane y = 1/2 at steady or statistical state in the inclined duct (φ=2 ° ) for Ra =11,600 at (a) Re = 50, (b) Re = 40, (c) Re = 30, (d) Re = 25, (e) Re = 20, (f) Re = 15, (g) Re = 10, and (h) Re = 5.

Fig. 4.3 Top view flow photos taken at the middle horizontal plane y = 1/2 at steady or statistical state in the horizontal duct (φ = 0° ) for Ra =13,800 at (a) Re = 50, (b) Re = 40, (c) Re = 30, (d) Re = 25, (e) Re = 20, (f) Re = 15, (g) Re = 10, and (h) Re = 5.

Fig. 4.4 Top view flow photos taken at the middle horizontal plane y = 1/2 at steady or statistical state in the inclined duct (φ =2 ° ) for Ra =13,800 at (a) Re = 50, (b) Re = 40, (c) Re = 30, (d) Re = 25, (e) Re = 20, (f) Re = 15, (g) Re = 10, and (h) Re = 5.

Fig. 4.5 Side view flow photos taken at the central vertical plane (x = 0.5) in the inclined duct (φ = 2 ° ) at Ra=11,600 for (a) Re=50, (b) Re=40, (c) Re=30, (d) Re=25, (e) Re=20, (f) Re=17.5, (g) Re=15, (h) Re=12.5, (i) Re=7.8, and (j) Re=5.

Fig. 4.6 Side view flow photos taken at the central vertical plane (x = 0.5) in the inclined duct (φ = 1 ° ) at Ra=7,500 for (a) Re=50, (b) Re=40, (c) Re=30, (d) Re=25, (e) Re=20, (f) Re=15, (g) Re=9.5, and (h) Re=5.

Fig. 4.7 Side view flow photos taken at the central vertical plane at steady or statistically stable state in the horizontal duct (φ= 0 ° ) for Ra=7,500 at (a) Re=50.0, (b) Re=40.0, (c) Re=30.0, (d) Re=25, (e) Re=20.0, (f) Re=17.5, (g) Re=15.0 (h) Re=12.5, (i) Re=10.0, (j) Re=7.5, and (k) Re=5.0.

(17)

Fig. 4.8 Side view flow photos taken at the central vertical plane (x = 0.5) in the inclined duct (φ = 2 ° ) at Ra=7,500 for (a) Re=50, (b) Re=40, (c) Re=30, (d) Re=25, (e) Re=20, (f) Re=15, (g) Re=10, and (h) Re=5.7.

Fig. 4.9 Side view flow photos taken at the central vertical plane (x = 0.5) for the horizontal duct (φ= 0° ) at Ra=13,800 for (a) Re=50, (b) Re=40, (c) Re=30, (d) Re=25, (e) Re=24.5, (f) Re=15, (g) Re=12.3, and (h) Re=5. Fig. 4.10 Side view flow photos taken at the central vertical plane (x = 0.5) in the

inclined duct (φ = 1 ° ) at Ra=13,800 for (a) Re=50, (b) Re=40, (c) Re=30, (d) Re=25, (e) Re=20, (f) Re=15, (g) Re=14.8, and (h) Re=5.

Fig. 4.11 Side view flow photos taken at the central vertical plane (x = 0.5) in the inclined duct (φ = 2 ° ) at Ra=13,800 for (a) Re=50, (b) Re=40, (c) Re=30, (d) Re=25, (e) Re=20, (f) Re=15, (g) Re=8.9, and (h) Re=5.

Fig. 4.12 Temporal structure of unsteady vortex flow in the horizontal duct (φ = 0 ° ) illustrated by (a) top view photo taken at the middle plane y = 1/2 and (b) time records of air temperature at selected locations on the plane y = 1/2 at x = 0.5, 0.4 and 0.3 for Re = 15.1 and Ra = 10,500.

Fig. 4.13 Temporal structure of vortex flow in the duct inclination (φ = 2° ) illustrated by (a) top view photo taken at the plane y = 1/2 and (b)time records of air temperature at selected locations on the plane y = 1/2 at x=0.5, 0.4 and 0.3 for Re = 15.3 and Ra = 10,500.

Fig. 4.14 Flow regime maps delineating various longitudinal vortex flow patterns in the inclined duct (φ= 2° ) .

Fig. 4.15 Flow regime maps delineating various longitudinal vortex flow patterns in the horizontal duct (φ= 0 ° ).

(18)
(19)

NOMENCLATURE

A Aspect ratio of duct, b/d b Channel width d Channel height at the duct inlet

g Gravitational acceleration Gr Grashof number, gβd3(Tin-Tcp)/ν2

Pr Prandtl number, ν/α Ra Rayleigh number, βgd3∆T /αν Re Reynolds number, Wm d/ν

Gr/Re2 Buoyancy-to-inertia ratio T Temperature

Tin,Tcp

Gas temperature at inlet of test section and temperature of copper plate

∆T Tcp – Tin

t Time, s

Wm Mean velocity of gas in axial direction

X,Y,Z Dimensional Cartesian coordinates

x,y,z Dimensionless Cartesian coordinates scaled with b, d, l α Thermal diffusivity

β Thermal expansion coefficient γcrit Critical buoyancy-to-inertia ratio

ν Kinematic viscosity ψ Inclined angle of the side walls φ Inclined angle of the duct

(20)

CHAPTER 1

INTRODUCTION

The buoyancy driven vortex flow and associated thermal characteristics in low speed mixed convective gas flow through a horizontal rectangular duct uniformly heated from below and cooled from above have been extensively investigated in the past. Combined experimental measurement and numerical simulation were carried out to explore various vortex flow patterns and their temporal-spatial structures. These investigations are mainly motivated by the important role the vortex flow plays in growing high quality thin semiconductor crystal films from the horizontal metal-organic chemical vapor deposition (MOCVD) processes. In this particular flow configuration a number of buoyancy induced secondary flow patterns have been reported in the literature, including the return flow, longitudinal, transverse and mixed vortex rolls and others [1,2]. Some of the roll patterns are illustrated in Figs. 1.1 and 1.2. All of these secondary flows can cause a non-uniform vapor deposition on the silicon wafer and is harmful to the thin film properties. Especially, the existence of the return flow zone will block the forced flow to move smoothly over the substrate and blur the interfaces in the multi-layer thin film structure. Hence the return flow is most unwanted and unwelcome in the MOCVD processes [3,4]. Thus how to eliminate the

(21)

return flow in the MOCVD processes is very important. The previous studies on the buoyancy driven secondary flows in rectangular ducts mainly focused on a simpler thermal boundary condition with the ducts heated uniformly from below and cooled uniformly from above. It is well known that the buoyancy driven secondary flow is very sensitive to the geometry of heating surface, Reynolds and Rayleigh numbers of the flow and the buoyancy-to-inertia ratio [5-9]. The characteristics of the return flow predicted from the previous studies are expected to be somewhat different from those in the real MOCVD processes where the heated wafers are circular in shape. In particular, the return flow will be complex and highly three-dimensional. In a recent model study Tuh and Lin [10] examined the return flow characteristics driven by a circular heated substrate embedded in the bottom of a rectangular duct with a low speed gas flow in it. In this continuing study we intend to investigate the delay of the buoyancy driven return flow by inclining the sidewalls of the horizontal flat duct toward the duct axis so that the main flow is accelerated in the axial direction. In addition, how the return flow is affected by the inclination of the duct will be explored. Note that in the sidewall converging duct the buoyancy-to-inertia ratio reduces in the streamwise direction because of the flow acceleration in that direction. Similarly, in the inclined duct the component of the buoyancy force normal to the heated substrate is smaller than that in the horizontal duct, leading to a lower buoyancy-to-inertia ratio.

(22)

Thus, both the sidewall converging and duct inclination are expected to delay the appearance of the return flow. The flow acceleration was found to be very effective in suppressing the buoyancy induced temporal flow oscillation in MOCVD processes and hence was able to improve the properties of epitaxial layers [11]. A model experiment is conducted in the first part of the present study to investigate the buoyancy driven vortex flow affected by inclining the sidewalls of a flat duct so that the duct cross section reduces in the axial direction for mixed convection of gas in a horizontal rectangular duct. Then, in the second part of the present study the effects of the duct inclination on the return flow will be explored. In the study, both the return flow and the vortex flow induced in the duct will be examined. In the following the literature relevant to the present study of mixed convective vortex flow of gas in a horizontal rectangular duct heated from below is briefly reviewed.

1.1 Characteristics of Longitudinal and Transverse Rolls

For the fully developed laminar forced convection between two infinite horizontal plates respectively heated uniformly from below and cooled uniformly from above, many different vortex flow patterns were predicted from theoretical linear stability and weak nonlinear analyses at the onset of Rayleigh-Benard convection. The critical Rayleigh number for the thermal instability has been found to be 1,708 by

(23)

experimental measurement [12] and linear stability theory [6], that is independent of the Reynolds number of the flow. In a finite transversal horizontal channel, Nicolas et al. [13] showed that the critical Rayleigh number for the thermal instability was larger than 1708. This means that the mixed convection flow in a laterally bounded channel is more stable than that in a laterally unbounded one. They further explained the existence of a critical Reynolds number Re at which the critical Rayleigh numbers *

* L

Ra and * T

Ra for the onset of longitudinal and transverse vortex rolls with their rotation axes respectively parallel and perpendicular to the forced flow direction started to bifurcate. For Re>Re* longitudinal rolls are induced first in the channel at

* L

Ra . While for Re<Re* transverse rolls prevail at * T

Ra which is slightly lower than

* L

Ra . It is well known that * L

Ra is independent of the Reynolds number Re, but the critical Rayleigh number *

T

Ra for the appearance of the transverse rolls increases with the Reynolds number. At a low buoyancy-to-inertia ratio for Ra *

L

Ra

> and Re>Re*

steady longitudinal vortex flow prevails and the spanwise temperature distribution is in very regular sinusoidal shape, and the number of the vortex rolls is equal to the duct aspect ratio [14-16]. Kamotani and his colleagues [15] observed in a flow visualization experiment that at supercritical Rayleigh number the smoke which traveled certain distance over a heated surface and absorbed enough thermal energy started to rise at some downstream location and deformed into a mushroom-shape due to the shearing

(24)

action of the forced flow. When the mushroom-shape flow structure rose up to hit the top wall of channel, it bifurcated and developed into a longitudinal vortex flow in the downstream region. It is also well known that at a low buoyancy-to-inertia ratio, the longitudinal vortex flow is characterized by the steady and regular longitudinal vortex rolls with spanwise symmetry and all the rolls have the same size with their diameter nearly equal to the duct height. Besides, the transverse velocities of the longitudinal vortex flow were measured and found to be independent of the Reynolds number by Chiu et al. [17]. They also noted that when the boundary-to-inertia ratio is much smaller than one (Gr/Re2<1), only longitudinal rolls appeared in the duct. Moreover the

critical wavelength of the thermal instability was determined by the duct height, not by thermal boundary layer thickness. The experiment from Chang et al. [16] indicate that the longitudinal rolls are always initiated first near the side walls of the channel and the roll number is equal to or less than the aspect ratio of the duct. At a high buoyancy-to-inertia ratio, the longitudinal vortex flow becomes unsteady and some rolls split in certain period of time and later merge. Chang, Lin and their colleagues [1,2] observed unsteady snaking longitudinal vortex flow with the presence of the splitting and merging of the rolls nonperiodically in time. The buoyancy effects on both heat transfer and skin friction were shown to be a strong function of the Prandtl number by Sparrow and Minkowycz [18] with the buoyancy growing more important

(25)

at decreasing Prandtl number.

The buoyancy driven transverse rolls only exist at relatively low Reynolds numbers and hence the buoyancy-to-inertia ratio is very high. A numerical analysis of the transverse vortex flow in a rectangular channel heated from below was conducted by Nicolas et al. [19]. It was observed that at such high buoyancy-to-inertia ratio, the buoyancy driven thermals possessed enough energy to merge with their spanwise neighbors in the upstream section of the duct, forming the transverse rolls [3,20]. Moreover, the critical Rayleigh number for the onset of the transverse rolls *

T

Ra increases with the Reynolds number and varies with the aspect ratio of the duct and the Prandtl number. Lin and his colleagues [16,21] combined flow visualization and temperature measurement to explore the transverse vortex rolls in the horizontal rectangular duct. Their studies show that the transverse rolls all have the same size with their diameters all nearly equal to the duct height and the influences of the Reynolds and Rayleigh numbers on roll size are slight. Besides, the transverse vortex rolls move downstream at the same convection speed.

1.2 Characteristics of Return Flows

(26)

receive increasing attention because the important role they play in the horizontal MOCVD processes for thin crystal film growth, as already mentioned above. It is well known that the buoyancy driven vortex flow can result in a non-uniform vapor deposition on silicon wafers and is harmful to the thin film properties [22]. At sufficiently high buoyancy-to-inertia ratios [23] the buoyancy driven vortex flow can even become unstable. Moreover, at high buoyancy the forced flow can be reversed resulting in a return flow zone in the channel. The return flow will result in a memory effect in the MOCVD processes. This memory effect is detrimental to the epitaxial layer and should be avoided. In order to eliminate or weaken the vortex and return flows, the conventional method which is widely used in the industry is to reduce the cross sectional area of the channel in the streamwise direction. Reduction of the channel cross section by the sidewall converging toward the channel axis can accelerate the forced flow so that the buoyancy-to-inertia ratio in the flow decreases in the streamwise direction. This was found to be very effective in suppressing the buoyancy induced temporal flow oscillation in MOCVD processes. But the details on how the vortex and return flows are affected by the sidewall converging remain largely unexplored. In a recent model experiment [10] we examined the buoyancy driven three-dimensional return flow pattern in a gas flow over a heated circular disk embedded in the bottom plate of a horizontal rectangular duct, simulating that in a horizontal longitudinal MOCVD reactor.

(27)

Here in the present study we move further to investigate how the buoyancy driven return flow is affected by the main flow acceleration due to the sidewall converging.

In the mixed convective flow through a bottom heated flat duct the return flow is known to result from the strong upward thermal buoyancy as the cold entering gas is suddenly heated in the entry heated section of the duct. The cold flow from the upstream is forced to lift up first and moves obliquely upwards. Then, the flow is blocked to move upstream by the strong retarding force of the upward buoyancy, forming a reverse flow zone. At high buoyancy the return flow can penetrate significantly into the upstream unheated section of the duct and becomes highly elongated. When the main flow is at a high Reynolds number, the return flow can extend substantially into the heated section of the duct and is also highly elongated.

The return flow encountered in the horizontal MOCVD reactors was first investigated by Eversteyn et al. [24] by visualizing the flow. They identified a particle-free zone above the susceptor and erroneously interpreted this zone as a stagnant layer of fluid. Instead, it is well known today as the return flow zone. Kamotani et al. [15] experimentally examined the thermal instability of a laminar flow in a horizontal flat duct heated from below and found that at a high buoyancy-to-inertia ratio with Gr/Re2 » 1 a reverse flow zone was induced near the upper plate. Flow

(28)

profile in horizontal MOCVD reactors proved that there was no stagnant layer above the susceptor. According to the experimental and numerical study of nitrogen and hydrogen gas flows in a bottom heated quartz reactor with a rectangular cross section, Visser et al. [3] indicated that the returning flow was mainly dominated by two dimensionless parameters, the Grashof and Reynolds numbers, Gr and Re. They proposed a critical level γcrit for the mixed convection parameter Gr/Reκ and showed that no return flow

occurred when Gr/Reκ

<γcrit. The exponent κ is equal to 1 at low Reynolds numbers

(Re≦4) and goes to 2 at higher Reynolds numbers (Re≧8). A similar study from Fotiadis et al. [26] also indicated that either the heated susceptor was placed in the bottom or top wall a flow recirculation could be induced. Moreover, the recirculation was noted in the upper portion of the reactor.

A two-dimensional numerical simulation carried out by Ouazzani et al. [27] to predict the buoyancy driven flow recirculations in the entrance region of a horizontal MOCVD reactor manifested that the presence of the return flow could result in an increase of film growth rate at the leading edge of the substrate and a decrease in the downstream. Later, they [28] extended the analysis to include the three-dimensional effects and found that at a high Ra/Re ratio, a buoyancy-induced reverse flow existed in the transition region between the isothermal entrance and the reaction section. Einset et al. [29] moved further to quantify the onset of recirculation flows in the entrance region

(29)

of horizontal CVD reactors based on the relative magnitudes of the vertical and horizontal pressure gradients in the flow. The pressure effects are independent of whether the heated substrate faces up or down, which explains their experimental observation that the flow recirculations appear at the same position in either configuration. Besides, they noted that the recirculation rolls located near the top wall of the reactor and rotated counter-clockwisely for both top- and bottom-heated reactors. Ingle and Mountziaris [30] again used a 2-D numerical simulation to investigate the onset of transverse buoyancy-driven circulations in a horizontal flat duct consisting of a cool upstream section, a middle section with a heated bottom wall, and a cool downstream section. Their results showed a transverse recirculation formed in the middle section near the top wall above the leading edge of the hot bottom wall, which rotated in a counter-clockwise direction. The other one formed near the bottom wall above the exit end of the hot bottom plate and rotated in a clockwise direction. At increasing inlet velocity, the downstream transverse recirculation was eliminated first and the upstream one shrank significantly. In addition, they proposed two criteria for the absence of the transverse recirculaton as (Gr/Re2)<100 for 10-3<Re≦4, and (Gr/Re2) <25 for 4≦Re<100. A similar 2-D numerical simulation from Ingham et al. [31,32] predicted that the transverse flow recirculation could extend to the upstream of the wall temperature discontinuity. The onset of the return flow for the heated lower wall was

(30)

shown to occur at Gr/Re2

17 for Re=10. This critical value of Gr/Re2 slowly decreases

at increasing Re. Besides, the recirculation zone is larger for a lower Re. Makhviladze and Martjushenko [33] conducted 2-D and 3-D numerical simulations to study the return flow in bottom wall heated horizontal CVD reactors. They showed the formation mechanism of the return flow and the return flow could be suppressed by cooling the side walls and/or by reducing the width of the reactors. The characteristics of three-dimensional flow, heat and mass transfer in a horizontal CVD reactor were numerically investigated by Park and Pak [34]. They concluded that for a large Gr/Re2

the return flow appeared at the leading edge of the susceptor, and it caused an increase in the growth rate of the film in this region and a decrease in the downstream of the susceptor. Recently, the three-dimensional return flow structure driven by a heated circular disk embedded in the bottom wall of a rectangular duct was examined by Tuh and Lin [10] through experimental flow visualization.

A simple mean often used to suppress and stabilize the buoyancy driven vortex flow is to accelerate the forced flow, as demonstrated by Chen et al. [35]. Gau et al. [36] revealed that in a convergent channel with the top plate inclination, the acceleration of the forced flow could delay the onset of thermal instability and effectively suppress the temperature fluctuation. Tseng et al. [37] experimentally showed that inclining the top plate of a rectangular duct uniformly heated from below could effectively and

(31)

completely wipe out the irregular temporal flow oscillation. But the induced vortex flow can only be weakened to some degree. Besides, more vortex rolls would be induced due to the increase in the aspect ratio of the duct in the mean flow direction.

The above literature review clearly indicates that how the buoyancy induced return flow is affected by the sidewall converging and duct inclination remains largely unexplored in horizontal MOCVD rectors. An experimental flow visualization is conducted here to explore the effects of the sidewall converging and duct inclination on the return flow in a horizontal rectangular duct with a heated circular disk embedded in the duct bottom, simulating that in a horizontal longitudinal reactor.

1.3 Vortex Flow Stabilization

In the chemical vapor deposition processes used to grow thin crystal films on semiconductor substrates, the unsteady vortex flow prevailed at high buoyancy will provoke a time–dependent deposition rate and should be avoided. In the past, means often used to suppress and stabilize the vortex flow are to accelerate the forced flow [35]. As mentioned above, Tseng et al. [37] experimentally showed that inclining the top plate of a rectangular duct uniformly heated from below could effectively and completely eliminate the irregular temporal flow oscillation. But the induced vortex flow can only be weakened to some degree. Besides, more vortex rolls would be

(32)

induced due to the increase in the aspect ratio of the duct in the mean flow direction. Then, Gau et al. [36] revealed that in a convergent channel with an inclined top plate, the acceleration of the forced flow could delay the onset of thermal instability and effectively suppress the temperature fluctuation. Recently, Sun [38] investigated the stabilization of mixed convective gas flow in a sidewall inclined duct also heated from below. He found that the sidewall inclination only caused slight delay in the onset of the longitudinal and transverse rolls, and at high buoyancy-to-inertia ratio the flow stabilization was insignificant. Wang [39] examined the stabilization of mixed convective air flow over a heated circular plate embedded in the bottom of horizontal rectangular duct by inclining the bottom plate of the duct. The flow acceleration associated with the duct bottom inclination results in more regular and stable longitudinal and transverse rolls and causes some delay in the onset of the return flow. Bai [40] delayed the onset of the return flow by inserting curved blocks in the upstream region of the channel. The insertion of curved blocks reduces the cross sectional area in the entrance region of the duct, causing a reduction in the buoyancy-to-inertia ratio. This local flow acceleration was found to be very effective in suppressing the buoyancy induced temporal flow oscillation in CVD processes and substantially delayed the onset of the return flow.

(33)

1.4 Objective of the Present Study

The above literature review clearly indicates that the mixed convective vortex flows of gas in a horizontal rectangular duct uniformly heated from below has been extensively investigated. However, it is also well known that the vortex flow is very sensitive to the geometry of the heated surface. Recently, Tuh [4] experimentally investigated the characteristics of mixed convective vortex flow driven by a circular heated plate in detail. The results indicate that the induced vortex flow driven by the circular heated surface is somewhat different from that driven by the rectangular heated bottom. Moreover, Tuh and Lin [10] moved further to reveal the unique return flow structure driven by a circular heated plate, which was characterized by an incomplete circular roll around the upstream edge of the circular plate. In the present study, we continue the study of Tuh and Lin [10] by examining some simple methods for the suppression of the return flow. More specifically, in the first part of the study an experiment combining flow visualization and temperature measurement is conducted here to investigate the possible suppression of the buoyancy driven return flow by inclining the sidewalls of the test section torward the duct cone. Attention is focused on how the return flow is affected by the sidewall inclination which causes the acceleration of the forced flow in the test section. Meanwhile, the effects of the inclined sidewalls on the characteristics of the longitudinal and transverse vortex flows

(34)

will also be explored. The effects of the Reynolds and Rayleigh numbers and the duct aspect ratio on the vortex flow and the associated thermal characteristics will be examined in detail. Moreover, in the second part of the study the return and vortex flow characteristics affected by the duct inclination will be explored.

(35)

Fig.1.1 (a) Schematic of transverse rolls, (b) representation of longitudinal rolls in a rectangular channel and (c) formation of return flow

Flow

Flow

y x z (b) (a) (c)

Flow

(36)

Fig.1.2 Photos from the characteristic flow visualization in a horizontal flat duct Top view (a) Top view Flow Side view Return flow (b) End view Flow

(37)

CHAPTER 2

EXPERIMENTAL APPARATUS AND

PROCEDURES

An open-loop mixed convection apparatus with air flowing in a horizontal rectangular duct with a circular heated disk embedded in its bottom plate is established in the present study to explore the suppression of the buoyancy driven return flow and vortex flow by the sidewall converging and inclination of the duct. The major constituents and the associated experimental procedures are briefly described in the following.

2.1 Experimental Apparatus

A sketch of the experimental apparatus for the mixed convective air flow over a heated circular plate in a horizontal plane channel and the adopted coordinate system are schematically shown in Fig. 2.1. The apparatus begins with the air regulated from a 300-liter and 100-psi high-pressure tank. Then, the air passes through a settling chamber, a contraction nozzle and a developing channel before entering the test section. After leaving the test section, the air is sent through an exhaust section and discharged into the ambient.

(38)

cross section of 22.5 mm in height and 450 mm in width, providing an aspect ratio of A=20, and has a total length of 450 mm. In the first part of this study the sidewalls of the test section are tilted symmetrically toward the duct core at the same convergent angle ψ, which is defined as the angle between the sidewalls and the vertical central plane at x = 0. Both the bottom and top walls of the test section are horizontal. Thus the test section, in fact, is a sidewall convergent flat duct and is schematically shown in Fig. 2.2. Therefore the duct aspect ratio is 20 at the inlet of the test section, which is reduced to 16 and 12 at the outlet of the test section in the present experiment corresponding to ψ= 5.7°& 11°. The side and top walls of the duct are constructed of 10-mm thick transparent acrylic plates to allow for the visualization of secondary flow patterns. The bottom of the test section is a thick flat bakelite plate embedded with a 15-mm thick, high purity circular copper plate of 300 mm in diameter to model a 12-inch semiconductor substrate. The upper surfaces of the bakelite and copper plates are kept at the same horizontal level so that the air flow does not experience any step when moving over the copper plate. To obtain the uniform copper plate temperature, the heating elements attached onto the lower surface of the copper plate are divided concentrically into seven semi-circular zones and the heater for each zone is independently controlled by a GW GPC 3030D laboratory power supply. Besides, a mica sheet is placed between the copper plate and heating elements to prevent the

(39)

electric current leaking to the copper plate (Fig. 2.3). While in the second part of the present study the rectangular duct is slight inclined from horizontal so that its exit end is above its inlet at a small angleψ, as schematically shown in Fig. 2.4.

A good control of the flow condition upstream of the test section is essential in the experiment. More specifically, at the inlet of the loop the working fluid (air) is driven by a 7.5-hp air compressor and sent through a dryer installed with water vapor and oil filters. This dry air then moves into the high-pressure tank. To proceed with the experiment, the air flow is further controlled by a pressure regulator and its volume flow rate is measured by Brooks 5850E and/or 5851E flow controllers both having an accuracy of ±1%. These two flow controllers individually operate in the ranges of 0 to 10 and 0 to 50 liter/min. Through a flexible tube, the air enters the settling chamber, in which four fine-mesh screens, a divergent buffer section, a honeycomb and another four fine-mesh screens are installed in sequence to reduce the turbulence in the air flow. The air turbulence was further suppressed by passing the air through a contraction nozzle with a contraction ratio of 44:1, which provides a nearly uniform velocity at the inlet of the developing section.

The developing section is 1400 mm in length, approximately 62 times of the duct height. This insures the flow to be fully developed before it arrives at the test section inlet for Re≤100. An insulated outlet section of 450 mm long is added to the test

(40)

section to reduce the effects of the disturbances from discharging the air flow to the ambient. The developing section and outlet sections are both made of 10-mm thick acrylic plate, whereas the settling chamber and contraction nozzle are made of stainless steel SS-304 plates. The settling chamber, developing section, test section and outlet section are all thermally insulated with a 20-mm thick Superlon insulator and the entire loop is fixed on a rigid supporting frame.

Visualization of the buoyancy driven secondary flow in the test section is realized by injecting smoke at some distance ahead of the settling chamber. The smoke is produced by a smoke generator, which is a cubic space with incense burned in it. By keeping the smoke concentration at a suitable level, the incense particles can be illuminated by a plane light sheet from a 550 Watt overhead projector. With an adjustable knife edge a sharp contrast could be achieved between the duct walls and smoke. The flow photos from the top, side and end views of the test section can then be taken. The exposure time is about 1/125 second in taking the photos.

The temperature of the heated copper plate is measured by 17 calibrated and electrically insulated T-type thermocouples embedded at selected locations in the plate (Fig. 2.5). The thermocouple beads are fixed at about 1 mm from the upper surface of the copper plate through the small holes drilled from the back side of the plate. A T-type thermocouple is also used to measure the inlet air temperature at locations just

(41)

upstream of the test section. The signals from the thermocouples are recorded by the Hewlett-Packard 3852A data acquisition system with a resolution of ±0.05℃.

To measure the temperature distribution of the air flow in the horizontal duct, a thermocouple probe is inserted from the downstream end of the test section. The probe is supported by a three-way traversing device. More specifically, the thermocouple probe is an OMEGA (model HYP-O) mini hypodermic extremely small T-type thermocouple (33 gauge) implanted in a 1-inch long stainless steel hypodermic needle. This movable thermocouple probe can measure the time-average and instantaneous temperature of the flow. The temperature data are recorded when the flow reaches steady or statistically stable state, usually 5-6 hours after starting the test. It was noted that in all tests the maximum temperature differences between any two locations in the copper plate were below 0.1℃. The error in the temperature difference between the copper plate surface and the air at the duct inlet is estimated to be within ±0.1℃.

2.2 Analysis of Time-average and Instantaneous Air

Temperature

The time-average temperature distributions in the air flow are obtained by averaging 1000-3000 sampled data at each detection point. The period of the sampling time may be different for different cases. Most importantly, the period has to be long

(42)

enough to capture all the slowest temperature oscillations in the air flow. The response time of the thermocouple is about 0.12 second and the sampling rate is chosen to be about 5 Hz in the transient temperature measurement. This sampling rate is high enough for the present low Reynolds number mixed convection experiment.

2.3 Investigation of Flow Field

In order to confirm the fully developed condition at the entrance of the test section, measurements using a hot-wire anemometer (DANTEC probe Type 55P01 with 56C17 CTA bridge) in connection with a HP data acquisition system (the Hewlett-Packard VXI series-E1411B multimeter and E-1347A multiplexers) for the inlet velocity profiles are conducted. For calibrating the hot wire, the pipe-flow method that the probe is placed in the center of a fully developed laminar pipe flow is used. The total volume flow rate is measured and the pipe center velocity is calculated from the parabolic distribution. Figures 2.6 and 2.7 respectively show the measured inlet velocity profiles in the rectangular duct along the vertical centerline at x=0.5 and horizontal centerline at y=0.5 for two cases with Re=100 and 10 with no heat input to the circular copper plate. The measured data are in good agreement with the analytical results given by Shah and London [41]. The turbulence level of the inlet stream is also given in the figures and is all within 1%. This implies that the effects of the free stream

(43)

turbulence on the mixed convective flow characteristics are moderate.

2.4 Experimental Procedures

For convenience, experiments are designated according to the Reynolds and Rayleigh numbers based on the inlet conditions. In each test the flow controller is first set at the predetermined level to impose a steady flow through the entire test section. The power supplies are then turned on to raise the copper disk temperature. Usually, it takes about 3 hours for the Rayleigh number to be raised to the test point and another 2 hours are needed to maintain the secondary flow at steady or statistically stable state. The steady state is ascertained by insuring that the variation in the instantaneous temperature measured in the flow from each thermocouple be less than ±0.1℃ for a period of at least 25 minutes. The above choice of the steady state criterion is in accordance with the fact that the measured background temperature disturbances in the flow are found to be slightly less than ±0.1℃. On the other hand, the statistically stable state is considered to be reached when the variation of the time-average temperature in the flow is within ±0.1℃ for more than 25 minutes. After the steady or statistically stable state is reached, we start the temperature measurement and flow visualization.

(44)

2.5 Uncertainty Analysis

Uncertainties in the Rayleigh number Ra, Reynolds number Re and other independent parameters are estimated in the light of the standard procedures proposed by Kline and McClintock [42]. The uncertainties of the thermophysical properties of air are included in the analysis. The fundamental thermophysical properties of the working fluid (air) are α=0.22 (cm2/s), β=0.0034 (1/K), ν=0.162 (cm2/s) and Pr=0.74 at

30 ℃ and 0.997 bar. The fluid properties are further corrected based on the temperature and pressure detected at the inlet of the test section. In addition, the deviation of temperature among the detecting points in the circular copper plate and the control unsteadiness are also accounted for in the evaluation of the data uncertainties. The analysis shows that the uncertainties of temperature, volume flow rate, dimensions, Reynolds number and Rayleigh number measurements are estimated to be less than 0.15℃, 1%, 0.05mm, 3%, and 5% respectively. The uncertainties of various parameters are summarized in Table 2.1.

(45)

Table 2.1 Summary of the uncertainty analysis

Parameter and Estimated Uncertainty

Parameter Uncertainty b, d, l ( m ) ±0.00005m Tin, Tcp, T (℃ ) ±0.15 Q ( L/min ) ±1 % µ ( N·m/s2 ) ρ ( kg/m3 ) ν ( m2/s ) ±0.05 % ±0.05 % ±0.07 % Ra Re ±5 % ±3 %

(46)

450 mm Air Compressor Mica Sheet Heater Overhead Projector Copper y Developing Channel Smoke Generator 90 Liter Settling Chamber & Nozzle Air Flow 1932 mm 495 mm Screen 295 mm Honeycomb Pressure

Regulator WaterFilter Oil Filter Flowmeter 0 ~ 10 slpm Valve Air Tank 300 Liter Air Flow Air Tank 300 Liter Dryer Outlet Section 500 mm 0 ~ 50 slpm 1400 mm Test Section 450 mm 22.5 mm Camera Circular Pipe

Diameter 70 mmThree-wayTraversing Device Camera

Bakelite Air

Insulation Settling Chamber & Nozzle

1932 mm Honeycomb Screen

SIDE VIEW

700 mm

TOP VIEW

Developing Channel 1400 mm 900 mm

Test section

Camera z Test Section 450 mm x Outlet Section 500 mm Overhead Projector z

(47)

Fig. 2.2 Schematic drawing of test section Flow 450mm 450mm z x y ψ Test Section Outlet Section Copper Plate

(48)

Fig. 2.3 Schematic of the test section from (a) top view and (b) cross-sectional view showing the

22.5 mm

15 mm

15 mm

450 mm

(b)

Bakelite Frame

Heater Layer

Mica Sheet

Copper Plate

450 mm

Flow

(a)

150 mm

x

z

(49)

φ φ Developing Channel 1400 mm Pressure Regulator Outlet Section 500 mm Honeycomb Smoke Generator Settling Chamber & Nozzle 1932 mm 295 mm Air Flow 495 mm Screen 90 Liter 0 ~ 10 slpm 0 ~ 50 slpm Flowmeter Valve Camera Developing Channel 22.5 mm 1400 mm Test Section 450 mm Overhead Projector 700 mm

TOP VIEW

SIDE VIEW

Screen

Settling Chamber & Nozzle 1932 mm 900 mm Honeycomb Mica Sheet Test section Dryer Water Filter Air Flow Oil Filter Air Tank 300 Liter Air Compressor Air Tank 300 Liter Three-way Traversing Device Insulation Circular Pipe Diameter 70 mm Camera Copper Bakelite Air y Overhead Projector z Heater Outlet Section 500 mm z Camera Test Section 450 mm x 450 mm φ

(50)

35mm

" " means thermocouple

is embeded here

9

14

17

13

4

8

6

5

(a)

10

15

7

3

1

2

12

11

16

150mm

105mm

140mm

70mm

45mm

1

6

5

(b)

7

3

4

2

105mm

150mm

70mm

(51)

0.00 0.20 0.40 0.60 0.80 1.00 0.00 0.20 0.40 0.60 0.80 1.00 (a) 0.00 0.20 0.40 0.60 0.80 1.00 0.00 0.20 0.40 0.60 0.80 1.00 (b)

Fig. 2.6 Comparison of the measured axial velocity profiles W/Wmax at the inlet of test

section with the analytical solution from Shah and London(1978) for Re=100 at (a)x=0.5 and (b)y=0.5.

( )

1/2 10 2 × ′ m W W

( )

1/2 10 2 × ′ m W W

y

W/W

max

W/W

max

x

Analytical fully developed profile Local Velocity

(52)

0.00 0.20 0.40 0.60 0.80 1.00 0.00 0.20 0.40 0.60 0.80 1.00 (a) 0.00 0.20 0.40 0.60 0.80 1.00 0.00 0.20 0.40 0.60 0.80 1.00 (b)

Fig. 2.7 Comparison of the measured axial velocity profiles W/Wmax at the inlet of test

section with the analytical solution from Shah and London(1978) for Re=10 at (a)x=0.5 and (b)y=0.5.

( )

1/2 10 2 × ′ m W W

( )

1/2 10 2 × ′ m W W

y

W/W

max

W/W

max

x

Analytical fully developed profile Local Velocity

(53)

CHAPTER 3

EFFECTS OF SIDEWALL CONVERGING ON

RETURN FLOW

It should be mentioned that at the buoyancy high enough to induce return flow certain types of vortex flows such as the longitudinal (L-), transverse (T-), and irregular rolls can also appear in the duct above the heated disk [10,44]. Thus the effects of the sidewall converging on the vortex flows will be also examined here, in addition to the return flow. Selected results obtained in the first part of the present study are presented in this chapter to illustrate how the buoyancy induced return and vortex flows in the duct are affected by the main flow acceleration resulting from the converging of the duct sidewalls. In particular, we compare the side and top view flow photos taken from the duct with and without the sidewall converging for various Re, Ra andψ. In this investigation the Reynolds number of the flow is varied from 5 to 50 and Rayleigh number from 7,200 to 21,000 for ψ= 5.7°and 11°. The ranges of the Re and Ra chosen above are in accordance with those encountered in real CVD processes [43]. In what follows the vortex flow characteristics affected by the sidewall inclination will be presented first. Then the effects of the sidewall inclination on the return flow will be examined.

(54)

3.1 Vortex Flow Characteristics

To illustrate the effects of the sidewall converging on the vortex flow, a series of top view flow photos taken from the duct with its sidewalls at different inclined angles at steady or statistically stable state are compared in Fig. 3.1 for Ra = 9,500 with the Reynolds number reduced from 30 to 20. The result in Fig. 3.1 (a) indicates that in the duct without the sidewall inclination (ψ= 0°) we have steady and regular L-rolls at Re = 30. But as the Reynolds number is reduced to 25 and 20, the buoyancy-to-inertia ratios are high enough to cause the L-rolls to become somewhat deformed and irregular (Figs. 3.1 (b) and (c)). Now comparing the results in Figs. 3.1 (a), (d) and (g) for the same Re of 30 but for different converging angles of the sidewalls reveals that when the sidewalls are slightly inclined at ψ=5.7° we have a significant delayed onset of the L-rolls when contrasted with that forψ= 0°. For a larger inclined angle of the sidewalls at ψ=11° only a number of thermals appear above the heated disk (Fig. 3.1 (g)). At the lower Re of 25 the unstable deformed vortex flow in the rectangular duct (Fig. 3.1 (b)) can be significantly suppressed to become thermals at the large converging angle of the sidewall ψ=11° (Fig. 3.1 (h)). But at the smaller ψ of 5.7° we still have unstable L-rolls in the duct (Fig. 3.1 (e)), although they are nearly regular. Similar tread is noted for the lower Re of 20, as evident from the results shown in Figs. 3.1 (c), (f) and (i).

(55)

affected by the sidewall inclination, a typical steady regular longitudinal vortex flows in the rectangular duct (ψ=0°) and sidewall converging duct for ψ=11° are respectively shown in Fig. 3.2 and Fig. 3.3 by presenting the steady top and end view flow photos for the two typical longitudinal flow cases (Re = 28.6 & Ra = 17,500 and Re = 27.8 & Ra = 17,600). The end view photos are taken at selected cross sections of the ducts. The top view photos are taken at the middle horizontal plane at y = 1/2 for the ducts. The results in Figs. 3.2 (d) and 3.3 (e) reveal that prior to the formation of L-rolls several thermals rise from the heated plate in both ducts. Through the simultaneous action of the forced flow and buoyancy, these thermals grow slowly in the downstream direction and become elongated in that direction with a mushroom-like cross section (Figs. 3.2 (e) and 3.3 (f)). Continuing growth of the thermals causes them to hit the duct top and the thermals evolve into L-rolls (Figs. 3.2 (f) and 3.3 (g)). Note that because of the circular geometry of the heated plate, closer to the duct core the thermals are induced at the more upstream locations. This is very different from the onset of L-rolls over a uniformly heated rectangular bottom plate in a flat duct in which the rolls first appear in the sidewall region and the rolls in the duct core are initiated at somewhat downstream locations (Fig. 1.2 (a)). More specifically, in the rectangular duct all the L-rolls driven by the circular heated plate have different size and are not spanwisely symmetric with respect to the central vertical plane x = 0.5, as evident from the end view flow photo in Fig. 3.2 (h).

(56)

Comparing the results in Figs. 3.2 and 3.3 indicates that in the sidewall converging duct a slightly longer axial distance is needed for the L-rolls to be initiated. Thus, the sidewall inclination causes a slight delay in the onset of L-rolls.

The effects of the sidewall inclination on the vortex flow are further illustrated in Fig. 3.4 for a higher buoyancy-to-inertia ratio. The regularization of the unstable deformed longitudinal vortex flow by the main flow acceleration associated with the sidewall inclination is also clearly seen in Fig. 3.4 for Re = 30 & 25. It is noted that at the lower Reynolds number for Re = 20 deformed L-rolls prevail in the rectangular duct. But when the sidewalls are inclined, slightly asymmetric L-rolls dominate in the duct (Figs. 3.4 (c), (f) & (i)). The stabilization of the transient oscillation of the longitudinal vortex flow by the inclination of the sidewalls is also clearly seen from the measured time records of the air temperature at selected locations for various cases.

The detailed characteristics of the transverse vortex flow in the rectangular and sidewall converging ducts (ψ = 0° and 11°) are examined next. The spatial structure of the regular T-rolls in the two ducts are presented in Figs. 3.5 & 3.6 by showing the top and side view flow photos at a certain time instants in the statistical state for the two cases with Ra = 11,600 and Re = 10.1 & 5.1. Note that the buoyancy-to-inertia ratio Gr/Re2 for the case shown in Fig. 3.6 for the sidewall converging duct is about four times

(57)

indicates that in the rectangular duct the T-rolls in the upstream are somewhat bent toward the downstream and they gradually become shorter as moving downstream. The T-rolls are enclosed by an incomplete circular roll. It is in fact a return flow zone which is highly three-dimensional [10]. It should be pointed out that the bending of the T-rolls is attributed to the restriction of the incomplete circular roll induced around the upstream edge of the circular heated plate. Comparing the results in Figs. 3.5 and 3.6 clearly reveals that in the rectangular duct the return flow zone characterized by an incomplete circular roll around the upstream edge of the heated plate is rather large (Fig. 3.5 (a)) and the recirculating flow in it is very strong (Figs. 3.5 (b)-(e)). However, in Figs. 3.6 ((a)–(e)) the recirculating flow becomes much smaller and weaker. The recirculating flow is significantly suppressed by the main flow acceleration due to the sidewall converging. This weaking of the return flow clearly results from the acceleration of the main flow by the sidewall converging.

3.2 Return Flow Characteristics

To illustrate the return flow affected by the sidewall inclination, the side view flow photos taken at the central vertical plane x = 0.5 at the steady or statistically stable state for Ra ≈ 11,600 at decreasing Re are presented in Figs. 3.7 and 3.8 respectively for ψ = 0° and 11°. The results in Fig. 3.7 for the rectangular duct (ψ = 0°) show that at the high

(58)

Reynolds number with Re ≥ 30 the buoyancy-to-inertia ratio Gr/Re2 is low and no return flow appears in the duct (Figs. 3.7 (a)-(c)). Note that above the downstream half of the heated plate stable L-rolls exist for this case [10]. As Re is lowered to 25 we begin to observe a very small recirculating flow zone in the region near the upper plate in the entrance section of the duct, indicating the onset of the return flow (Fig. 3.7 (d)). A further reduction of the Reynolds number causes the return flow to become stronger and occupies a larger region (Figs. 3.7 (e)-(k)). For the low Re of 7.5 and 5 the return flow zone is relatively large and elongated in the axial direction, which extends deeply into the upstream unheated section (Figs. 3.7 (j) and (k)). Downstream of the return flow zone the duct is dominated by the unstable L-rolls for 17.5 ≤ Re ≤ 25 (Figs. 3.7 (d)-(f)) and by T-rolls for 5 ≤ Re ≤ 12.5 (Figs. 3.7 (h)-(k)). While for Re = 15 unstable and somewhat irregular L-rolls and T-rolls appear in the downstream half of the duct at the same time (Figs. 3.7 (g)). Now for the sidewall inclined duct at ψ= 11°, the results in Fig. 3.8 clearly show that the return flow starts to appear at a lower Re of 18.4 (Fig. 3.8 (e)), compared with Re = 25 for ψ= 0°. Thus the sidewall inclination results in a substantial delay in the onset of the return. Moreover, even for the lower Re ( ≤ 17.5) in the convergent duct the buoyancy induced return flow is weaker in intensity and smaller in size (Figs. 3.8 (f)-(k)). The weakening of the return flow by the sidewall inclination can be more clearly demonstrated by presenting the selected side view flow photos for ψ =

(59)

0°and 11° together in Fig. 3.9 at the same Re and Ra. A close inspection of the results in Fig. 3.9 reveals that the reduction in the size of the return flow zone by the sidewall inclination is more effective at a higher Re.

3.3 Critical Conditions for Onset of Return Flow

According to the data from the present experiment, the critical conditions for the onset of the return flow in the rectangular duct (ψ= 0°) and in the convergent duct (ψ= 11°) are plotted in Fig. 3.10. The results clearly show the significant increase in the critical buoyancy-to-inertia ratio for the onset of return flow by the sidewall inclination. According to the present experimental data, the onset of the return flow driven by the circular heated disk embedded in the convergent duct can be correlated as

Gr/Re2= (a+b/Re2)/cos(0.02ψ) (3.1) where

a=27.5(0.04ψ+1)2.5 b=2000(0.016ψ+1)

The standard deviation of the above correlation is less than 12 ﹪.

The above equation is applicable for the Reynolds and Rayleigh numbers at the duct inlet ranging respectively from 5.0 to 50.0 and from 7,200 to 21,000. The above correlation is compared with the data for the convergent duct (ψ=5.7° and 11°) in Fig.

(60)

3.10. Meanwhile, the critical condition for the onset of the return flow in the rectangular duct (ψ = 0°) compared in Fig. 3.10. The results clearly indicate that the convergent duct causes a noticeable delay in the onset of the return flow. Besides, the return flow is weakened by the convergent duct.

3.4 Vortex Flow Stabilization

Finally, the stabilization of the transient flow oscillation at a high buoyancy-to-inertia ratio stabilized by the sidewall inclination is illustrated by presenting the measured temperature variations with time at selected detection points at the mid-height of the duct in Figs. 3.11 and 3.12 respectively for the cases with the rectangular and convergent ducts for Re=10.1 and Ra=11,600. The results in Fig. 3.11 indicate that in the rectangular duct the flow oscillates periodically with time in the downstream half of the duct where the moving transverse rolls dominate. Besides, the flow essentially oscillates at the same frequency but the oscillation amplitude varies with the locations. Now in the convergent duct with ψ = 11°, the amplitude of the flow oscillation is rather small at all detection points, as evident from the data given in Fig. 3.12. In fact, the flow can be regarded as steady. Thus, the flow is completely stabilized by the sidewall inclination.

(61)

Fig. 3.1 Top view flow photos of longitudinal vortex flow taken at the middle horizontal plane y = 1/2 at steady or statistical state in the duct with the sidewalls inclined at different angles for Ra = 9,500 for various Reynolds numbers.

(a) Re=30 (d) Re=30 (g) Re=30

(h) Re=25 (e) Re=25 (b) Re=25 (i) Re=20 (f) Re=20 (c) Re=20

Flow Flow Flow ψ= 0° ψ= 5.7° ψ= 11°

(62)

Flow

Top and end view flow photos at steady state in rectangular duct (ψ= 0°) for Re = 28.6 and Ra = 17,500taken at the plane y = 1/2 and at the cross sections z = (a) 0.1, (b) 0.2, Fig. 3.2 x=0 x=1 y=1 y=0

z=0.2

z=0.3

z=0.4

z=0.5

z=0.6

z=0.7

z=0.8

z=0.9

z=0.1

(a)

(b)

(c)

(d)

(e)

(f)

(g)

(h)

(i)

(63)

Fig.3.3 Top and end view flow photos at steady state in convergent duct (ψ= 11°) for Re = 27.8 and Ra = 17,600taken at the plane y = 1/2 and at cross sections z = (a) 0.1, (b)

z=0.1 z=0.2 z=0.3 z=0.9 z=0.8 z=0.7 z=0.6 z=0.5 z=0.4 (a) (b) (c) (i) (h) (g) (f) (e) (d)

Flow

(64)

Fig. 3.4 Top view flow photos of longitudinal vortex flow taken at the plane y = 1/2 at steady state or at certain time instant in statistical state in the duct with the sidewalls inclined at different angles for Ra = 13,800 for various Reynolds numbers.

Flow Flow Flow ψ= 0° ψ= 5.7° ψ= 11° (i) Re=20 (f) Re=20 (c) Re=20 (h) Re=25 (e) Re=25 (b) Re=25

數據

Table 2.1 Summary of the uncertainty analysis
Fig. 2.2  Schematic drawing of test section Flow 450mm450mm  x zyψ  Test Section Outlet Section Copper Plate
Fig. 2.3  Schematic of the test section from (a) top view and (b) cross-sectional view showing the 22.5 mm15 mm15 mm450 mm(b)Bakelite FrameHeater LayerMica SheetCopper Plate450 mmFlow(a)150 mmxz
Fig. 2.6  Comparison of the measured axial velocity profiles W/W max  at the inlet of test  section with the analytical solution from Shah and London(1978) for Re=100  at (a)x=0.5 and (b)y=0.5
+7

參考文獻

相關文件

and Peterson, G., “Convective Heat Transfer and Flow Friction for Water Flow in Microchannel Structures,” Int. Heat and Mass

A., “Analysis of stability of bioconvection of motile oxytactic bacteria in a horizontal fluid saturated porous layer,” International Communications in Heat and Mass Transfer,

Wilson (1996), “A Longitudinal Study of the Impact of Market Structure, Firm Structure, Strategy, and Market Orientation Culture on Dimensions of Small-Firm Performance,” Journal

Avramenko, “Analysis of stability of bioconvection of motile oxytactic bacteria in a horizontal fluid saturated porous layer,” International Communication Heat Mass Transfer,

Kuznetsov, “The onset of bioconvection in a suspension of gyrotactic microorganisms in a fluid layer of finite depth heated from below,” International Communications in Heat and

本研究探討空氣流量及轉爐石量對於 Chlorella sp.生長之表面物 化特及釋出有機物性質影響,可透過傅立葉轉換紅外線光譜(Fourier transform

粒子所具有之初始動量較大,因此,在流場改變時,粒子受到流場的

2004, “Relationships between Axisymmetric Bending and Buckling Solutions of FGM Circular Plates Based on Third-order Plate Theory and Classical Plate Theory,” International Journal
