國 立 交 通 大 學
電信工程研究所
碩 士 論 文
對三維度積體電路實體設計流程具可整合性
和具網格分析適應性的溫度模擬器
3D-Adaptive-ADI:
A Grid-Adaptive and Integrable Thermal Simulator
for 3D IC Physical Design Flow Based on ADI
Method
研究生 ：李亭蓉
指導教授：李育民 教授
對三維度積體電路實體設計流程具可整合性
和具網格分析適應性的溫度模擬器
3D-Adaptive-ADI:
A Grid-Adaptive and Integrable Thermal Simulator
for 3D IC Physical Design Flow Based on ADI Method
研 究 生：李亭蓉
Student：Ting-Jung Li
指導教授：李育民
Advisor：Yu-Min Lee
國 立 交 通 大 學
電信工程研究所
碩 士 論 文
A ThesisSubmitted to Institute of Computer and Information Science College of Electrical Engineering and Computer Science
National Chiao Tung University in partial Fulfillment of the Requirements
for the Degree of Master
in
Computer and Information Science August 2011
Hsinchu, Taiwan, Republic of China
3D-Adaptive-ADI:
對三維度積體電路實體設計流程具可整合性
和具網格分析適應性的溫度模擬器
學生: 李亭蓉 指導教授:李育民 博士
國立交通大學電機工程學系碩士班
摘 要
經由提高晶片之間互連導線密度達到成本效益的三維度積體電路，被視為一個解決二維度 平面積體電路的良好替代方案。三維度積體電路確實提供快速成長的電路系統許多益處，然而， 由於主動電路層垂直堆疊造成較高的功率密度和較低的導熱特性，散熱問題成為其所面臨到的 棘手挑戰之一。因此，相較於過往對於溫度只做封裝前的電路驗證是不夠的，對於未來高整合 系統而言，溫度議題的處理需要被提早到實體設計階段做考量。基於這些原因，吾人使用提出 的 3D-AADI 演算法於從平面規劃 (floor-plan) 階段到驗證 (verification) 階段，研發了一個具有 網格分析適應性的溫度模擬器。 本篇論文提出的三維度積體電路溫度模擬器，不僅在效率和精準度之間取得平衡的低複雜 度演算法，更可以建造出具適應性分析網格以避免因非關鍵區域造成的不必要時間浪費。此分 析器包含四個程序分別是：熱趨勢的估計、初始適應性網格的建立、非規則性矩陣的建立、和 3D-AADI非規則性矩陣的運算。由實驗結果顯示，此分析器在0.01%的收斂率下達到數百倍的速 度提升，而因線性複雜度，隨著分析解析度越密加速更為顯著。此外，此分析器具有可以部分 更新 (incremental) 的特性對應用於考慮溫度設計流程 (temperature-aware design flow) 中，是十 分有效率的應用。3D-Adaptive-ADI:
A Grid-Adaptive and Integrable Thermal Simulator
for 3D IC Physical Design Flow Based on ADI Method
Student: Ting-Jung Li Advisor: Dr. Yu-Min Lee
Department of Electrical Engineering
National Chiao Tung University
ABSTRACT
3D ICs, which deal with cost-effective achievement by increasing the densities of interconnection between dies, are regarded as an attractive alternative solution for overcoming the bottlenecks on 2D planar ICs. 3D ICs offer the increased system a large number of advantages; however, one of critical challenges is heat dissipation due to higher accumulated power density and lower thermal conductivity of inter-layer dielectrics for vertical stacking layers of active tier. In this way, the management of thermal issues should be considered during physical design stages rather than only pre-packaging verification on the future highly integrated systems. For these reasons, we develop an adaptive thermal simulator applying our 3D-AADI algorithm for providing temperature distribution to 3DIC physical design flow from floor-plan level to verification level.
The proposed 3DIC thermal simulator, 3D-AADI, both utilizes low-complexity algorithm for achieving both efficient runtime and accuracy and constructs adaptive simulating granularity for avoiding unwanted runtime and resource consumption in non-critical position. Furthermore, 3D-AADI, including estimating heat trend, constructing initial adaptive grids, establishing non-uniform structure, and calculating 3D-AADI matrix processes, improves two orders of magnitude under 0.01% convergence in experimental results. As a result of linear complexity, the finer simulating granularity leads to the more speeding up. Due to the partial updating characteristics, 3D-AADI can not only be regarded as a reliable thermal simulator but also be applied to 3DIC design flow as a thermal-driven kernel.
誌 謝
本篇論文得以順利出爐，首先感謝我的指導教授李育民博士，老
師在研究上給予的指導，是我在碩士學習過程中最大的收穫。因為在
老師的指導下，我學到一個研究生該有的面對問題挑戰的態度和解決
的思慮，這是我學習生涯中得到最大的寶藏。
在碩士的歲月中，感謝在我鑽研問題階段，時常找我討論概念、
程式技巧給予指導的博士班培育學長，您對研究的執著和熱誠，令我
感受到接受挑戰的喜悅和成就。還有感謝一群曾與我共同在實驗室打
拼的夥伴，學長佳鴻、焯基、斯安、懷中、宗祐、同窗麒文、書含、
巧翎、學弟志升、宗恆、翊瑄、威銘、嘉桐，你們給予的關心和幫助，
豐富了我碩士的生活。
我將最赤誠的感謝，獻予支持我的父母兄長、摯友怡廷和雨欣，
因為有你們的鼓勵關懷與支持，我才得以在人生的岔路中找到隱約的
方向，論文中的字裡行間是獻給你們的一首感謝的歌，謝謝你們。
同時我將這份喜悅與成果獻給所有在乎我的人，謝謝。
Contents
1 Introduction 1
1.1 Background on Thermal Simulation . . . 1
1.2 Our Contributions . . . 3
1.3 Organization of the Thesis . . . 5
2 Problem Formulation 6 3 The Framework of 3D-AADI Simulator 9 3.1 Initial Heat Estimator . . . 10
3.2 Adaptive Simulation Grids . . . 12
3.3 Non-Uniform Meshing Construction on 3D-AADI . . . 15
3.4 Non-Uniform Meshing Calculation on 3D-AADI . . . 19
4 Experimental Results 26 4.1 Adaptive Distribution Results . . . 27
4.2 Comparison of Convergence Results . . . 32
5 Future Works and Applications 36 5.1 Enhancement of Suggesting Resolution . . . 36
5.2 Local Refinement and Incremental Design . . . 36
List of Figures
2.1 The considering geometry of N layer 3D chip. . . 7 2.2 The thermal circuit model of this numerical thermal simulation on steady state. 8 3.1 An overview of this work (which is in the background-color blocks). Authors
explain the left-middle orange block on section 3.1, the left-down purple block on section 3.2, the right-up gray block on section 3.3, and the right-middle blue block on section 3.4. . . 10 3.2 The z-tile model of proposed initial estimator. . . 11 3.3 The z-tile curves built by initial heat estimator for test chip 1 (on left one) and
test chip 2 (on right one). The x-scale presents planer grid number which is gridx by gridy of every simulating z-tier. The y-scale presents the average of
heat difference comparing with average temperature of the entire chip. . . 12 3.4 The merging processes of each level decide the analyzing geometry by
comput-ing the gradients of initial estimator. The figure is a simple example of grid-merging process after the estimating temperature distribution is computed. . . 13 3.5 Adaptive Simulation Grids Framework. . . 14 3.6 The geometry distribution of adaptive simulation grids considering the gradient
of estimating temperature. (a) The front view of chip sliced into simulation grids. (b) The front view of non-uniform simulating case of our test chip 2. This is also the initial adaptive geometry on layer 1 of Fig. 4.8. (c) The perspective view after constructing the equivalent thermal resistant mesh of 3D chip, and the front view is shown on (a). . . 15 3.7 (a) The constructing mesh including all directions. (b)(c)(d) One of different

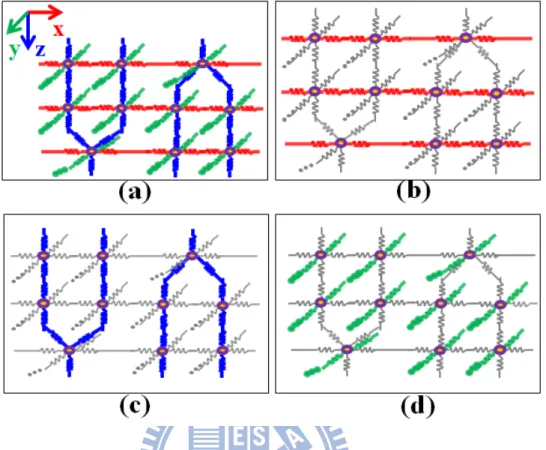

alternative directions utilizing 3D-AADI method when scanning on x−, y−, and z−direction, respectively. The step by step illustrate the framework of scan and solve LUVectorList of d. . . 18 3.8 Finding the stamping LU members on x-direction of one of every layers on our

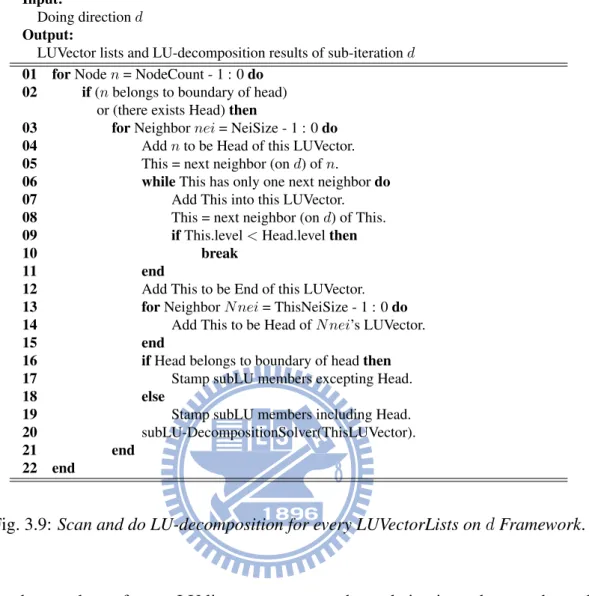

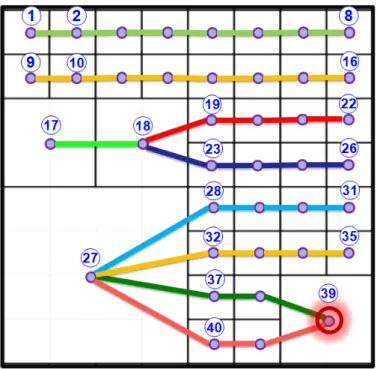

3D-AADI algorithm. The red rings stand for gathering nodes. . . 19 3.9 Scan and do LU-decomposition for every LUVectorLists ond Framework. . . . 20 3.10 The entire stamping LU matrix of x-direction on our 3D-AADI algorithm. The
dimension of unknown-node vector for every sub-LU matrices, Gx1, Gx2, ...,
and GxN can be independent. In this way, the linear complexity property of each
sub-LU matrix implies to the linear complexity property of the entire algorithm. 21 3.11 Finding the stamping LU members on y-direction of one of every layers on our
3D-AADI algorithm. The red rings stand for gathering nodes. . . 22 3.12 Finding the stamping LU members on z-direction of one of every layers on our
3D-AADI algorithm. The red rings stand for gathering nodes. Besides, the rings with dotted lines stand for the horizontal neighbors on the same layer on z-direction. . . 22 3.13 Non-Uniform Meshing Calculation Framework. . . 23
4.1 Finite Difference Method on Modified Nodal Analysis (FDM-MNA) Results on test chip 1. We regard the FDM-MNA temperature distribution as our golden solution and compare the error rate with its average degree. The temperature profiles are shown by tiers of every active layers. Actually, our simulating tiers on z can be much larger than active numbers depending on user-setting accu-racy. . . 28 4.2 FDM-MNA golden solution temperature with grids-number 32 by 32 of test
case 1. . . 29 4.3 The solution which is convergent to 0.01% providing by 3D-AADI algorithm
with non-uniform grids of test case 1. . . 29 4.4 Temperature solution which is convergent to 0.0001% providing by our
3D-AADI algorithm with non-uniform grids of test case 1. . . 29 4.5 Finite Difference Method on Modified Nodal Analysis (FDM-MNA) Results on
test chip 2. We regard the FDM-MNA temperature distribution as our golden solution and compare the error rate with its average degree. The temperature profiles are shown by tiers of every active layers. Actually, our simulating tiers on z can be much larger than active numbers depending on user-setting accu-racy. . . 30 4.6 FDM-MNA golden solution temperature with grids-number 32 by 32 of test
case 2. . . 31 4.7 The solution which is convergent to 0.01% providing by 3D-AADI algorithm
with non-uniform grids of test case 2. . . 31 4.8 Temperature solution which is convergent to 0.0001% providing by our
3D-AADI algorithm with non-uniform grids of test case 2. . . 31 5.1 An overview of this work (which is in the background-color blocks) and
3D-AADI enhancement. Authors explain the left-middle orange block on section 3.1, the left-down purple block on section 3.2, the right-up gray block on sec-tion 3.3, and the middle blue block on secsec-tion 3.4. Besides, the right-middle green sub-flow, which illustrates our 3D-AADI algorithm can be both enhanced in local-refined simulation and applied to thermal-driven kernel into the entire physical design flow, is discussed as future works and applications on section 5.2. . . 37 5.2 Local refinement on the affected region around the updated grids for satisfying
the requirement. . . 38 5.3 Local Refinement Framework. . . 38
List of Tables
4.1 The executing time results of FDM-MNA, uniform and non-uniform simulating algorithm on test chip 1. . . 33 4.2 The partial executing time results of FDM-MNA, uniform and non-uniform
simulating algorithm on test chip 1. . . 34 4.3 The executing time results of FDM-MNA, uniform and non-uniform simulating
algorithm on test chip 2. . . 34 4.4 The partial executing time results of FDM-MNA, uniform and non-uniform
simulating algorithm on test chip 2. . . 35 4.5 The iteration results of uniform and non-uniform simulating geometry on test
chip 1. . . 35 4.6 The iteration results of uniform and non-uniform simulating geometry on test
Chapter 1
Introduction
Performance of chip systems has been successfully enhanced by downscaling the chip minimum feature size. This benefits systems to operate at a higher frequency for performing more compu-tations per second. However, the shrinking scale of IC technology also results in higher power density, more metal layers with higher densities, and dielectric materials with lower thermal conductivities, which significantly impacts on both signal propagation delay and manufactur-ing reliability. Consequently, the advantages of 3D ICs become an attractive solution to relieve 2DIC bottleneck.
As the number of functions on one chip increases, more and more products have involved the stacking of dies to minimize system size. Nowadays, there are several three-dimension inte-gration chip (3DIC) approaches that deal with cost-effective achievement by striking a balance between planar interconnects and vertical through-silicon vias (TSVs). 3D ICs are regarded as an attractive alternative solution for overcoming the wire-length bottleneck of interconnection and the physics of lithography on 2D planar ICs. three-dimension integration chips (3D ICs) offer the increased system a large number of advantages such as miniaturization in chip area, , reducing form factor, reducing wire length, reducing interconnect delays [1] [2], lower power consumption [3], supporting for mixed-technology chips, and heterogeneous SoC design.
1.1
Background on Thermal Simulation
However, there are several challenges such as TSVs, micro-bump, low temperature bonding, and thin-wafer handling of manufacturing, thermal management, design methodologies and
tools of design, known-good-die and yield-improving of testing. One of the critical challenges that IC designers must consider is heat dissipation due to higher accumulated power density and lower thermal conductivity of inter-layer dielectrics [4] [5] for the vertical stacking of active tiers and interposer tiers. Furthermore, several previous studies of both computer aided design (CAD) tools and reference flow for 3D ICs [1] [6] indicate that the management of thermal issues plays an important role in the future generation of highly integrated systems due to the highly complex problem of heat dissipating on 3D ICs. That is to say, thermal analysis should be concerned not only on the verification level but also on the design level.
The algorithm of thermal simulators can be categorized into analytical and numerical meth-ods. Analytical methods [7] [8] [9] are suitable for early design stages since the advantages on both avoiding the volume meshing calculation of entire substrate, and representing closed-form by modeling for temperature distribution. Hence, analytical methods are flexible to obtain the temperature distribution of certain user-specified regions without performing the thermal simulation for the entire chip.
The other category of thermal simulators is the numerical method, which applies the finite-difference method (FDM) or finite-element method to transform heat-transfer equations into thermal-circuit equations. For the constructed circuit network, several methods have been pro-posed for saving run-time. [10] analyzed the efficiency of simulating execution on transient state by model order reduction technique. [11] applied the multi-grid algorithm to improve the convergent rate of iterations and proposed a reduction scheme to reduce the runtime of dynamic thermal simulation. [12] utilized alternating-direction-implicit (ADI) method to separate the equivalent circuit system into different alternating subsystems by considering the property of linear complexity on each sub-system.
In recent years, great importance has been made in the area of 3DIC thermal analysis. Fur-thermore, because of the stacking material and techniques on 3D ICs, the extensive range of lo-cal heating and vertilo-cal dissipation of temperature distribution must be concerned. For designers of high-performance 3D ICs, it is essential to apply an accurate simulator by considering adja-cent heating to enhance simulating reliability. In addition, because of the flexibility for handling the complicated structure, the numerical category is treated as the main stream on back-end
de-sign stages such as the post-layout thermal verification. However, several numerical approaches handling with simulation model on uniform slicing are performance-limited by the most crit-ical position such as thermal or signal through silicon vias (TSVs) [12]. [12] consumed some runtime and hardware resource on analyzing uniform geometry for the much more non-critical positions such as substrate. In order to be more efficient, several approaches can solve adaptive simulating geometry. For example, [13] handled both uniform and non-uniform slicing due to the connecting rule between blocks; however, the characteristic also caused the simulating lim-itation to be suitable on the floor-plan stage rather than on the placement stage. This limlim-itation of simulating number induces unsuitability on both high-performance and function-increasing 3D ICs. Although [14] modified the connecting rule by enhancing grid-based simulating mode, both [13] and [14] neglected the thermal impact for TSVs. On the other hand, techniques such as [11] [13] [15] and [16] have been developed to construct adaptive thermal modeling, but they are suitable to be verification tools rather than thermal-driven design kernel because of the incremental incapability. Indeed, great importance of thermal analysis has been made on both physical design and verification of 3D ICs [1] [6].
1.2
Our Contributions
To summarize, we are eager to develop an algorithm with the following advantages for both tape-out verification and high-performance physical design.
a). low-complexity algorithm for achieving both efficient runtime and accuracy.
b). referring estimator to provide a thermal reference for heat trend (where heat trend means es-timation of power distribution, TSV cells, and thermal conductance using the compact thermal model).
c). adaptive simulating geometry for avoiding unwanted runtime and resource consumption in non-critical position.
d). partial updating analysis for local refinement and incremental characteristic.
trend, constructing initial adaptive grids, establishing non-uniform structure, and calculating 3D-AADI matrix. Although local-refined process of our whole flow (shown in Fig. 5.1) has not been addressed, the major contributions of this work are:
1. Initial Heat Estimator:
We can develop a referring estimator to provide the heat trend as simulating reference by applying z-tile compact thermal model. According to the curve of grid-number and heat distribution, we set criteria and find out a suitable-analyzing resolution by taking chip-size, runtime, and accuracy into consideration.
2. Initial Adaptive Simulation Grids:
We can strike a balance between the runtime and the accuracy. The simulating geometry can avoid being performance-restricted by the most critical position usually on hot spots and (thermal or signal) TSVs, since we develop the grid-construction processes depending on heat gradients to build adaptive geometry of simulation grids, where heat gradient means the gradient of the heat trend.
3. Non-Uniform Meshing Construction and Calculation of 3D Adaptive ADI (3D-AADI): We can construct adaptive simulating geometry and develop non-uniform scanning algo-rithm to handle non-uniform meshing which traditional ADI methods utilized on uniform spatial step size of each direction can not deal with. Besides, We are the first one who are eager for the property of linear complexity of ADI concept by concerning both a huge amount of computation and incremental updating during temperature-aware design on 3D chips.
4. One of Good Solutions for Application on Thermal-Driven Design Due to Incremen-tal Property:
3D-AADI thermal conductance matrix of non-uniform meshing can be locally updated on only the affected region rather than entirely re-construct and do LU-decomposition entirely. In this way, it is a good solution to be treated as a thermal kernel in temperature-aware design flow due to not only the non-uniform ability of node meshing but also the incremental data structures of the updated sub-circuit.
1.3
Organization of the Thesis
The rest of the paper is organized as follows. We first formulate our concerning problem in Chapter 2. Then we illustrate the overview of the whole 3D-AADI procedures in Chapter 3 and organize it into four parts which are initial heat estimator in section 3.1, adaptive simula-tion grids in secsimula-tion 3.2, uniform meshing construcsimula-tion on 3D-AADI in secsimula-tion 3.3, non-uniform meshing calculation on 3D-AADI in section 3.4. Besides, we discuss local refinement and incremental property in section 5.2 as the applications and future works. In the last chap-ter, we summarize the contributions, provide concluding remarks and analyze the experimental results about our 3D-AADI work.
Chapter 2
Problem Formulation
The geometric information of device location and power dissipation on placement are known as input data. In fact, the input information we need is the material structure and the power distribution, so 3D-AADI thermal simulator can be applied to the stages from partition level to tape-out verification level. This simulator can provide temperature distribution profiles on each simulating tier including the active CMOS layers, interposer layers, and substrate layers.
Since the operating frequency of today’s manufacturing technology node is much faster than the speed of heat dissipation, it is reliable to analyze temperature distribution on steady state [17] [9]. We extract the power library by power simulating tools, considering internal, switching and leakage power as the total power of each device. Based on [18], the heat sink thermal conductance of the primary and secondary heat transfer paths can be modeled as com-ponents and connected with thermal conductance into simulation meshing. Since the ambient air has a constant temperature, the primary and secondary heat sink models respectively connect the bottom and the top terminal with a constant voltage, room temperature node. Fig. 2.1 shows the compact thermal model of N layer 3D IC.
Furthermore, [15] showed the effects of various cooling techniques and indicated that through dummy thermal vias had a very effective cooling influence on temperature dissipation. In this way, TSVs must be considered in 3DIC thermal simulation. For the reason that the routing de-tail of interconnects on the given placement design is not complete, we build each interconnect layer and TSV alignment routing interposer layer into equivalent thermal model based on the weighted summation of each material thermal conductance. As a result of the package struc-tures, the heat-transfer effect of air on vertical surfaces is strictly much less than that of primary

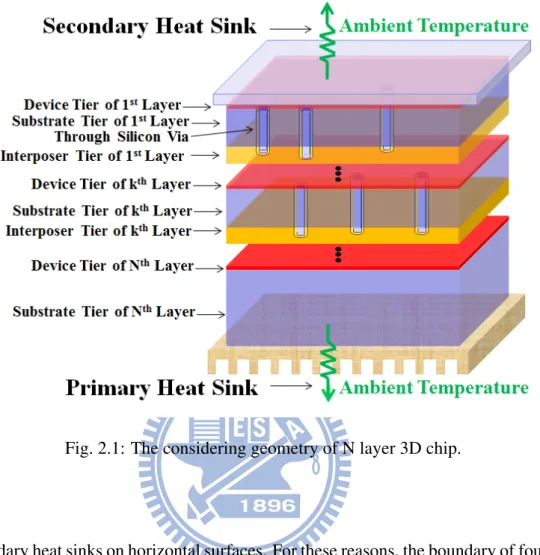

Fig. 2.1: The considering geometry of N layer 3D chip.
and secondary heat sinks on horizontal surfaces. For these reasons, the boundary of four vertical surfaces can be treated as adiabatic [8] [9].
Based on the law of energy conservation, thermal approaches analyze temperature distribu-tion of heat transformadistribu-tion [19] by the following partial differential equadistribu-tions, Eq.(2.1).
ρCp ∂T (−→r , t) ∂t = O · [k( − → r , t)OT (−→r , t)] + g(−→r , t) (2.1)
subject to the thermal boundary conditions k(−→r , t)∂T (−
→r , t) ∂ni
+ hiT (−→r , t) = fi(−r→si, t), (2.2)
where ρ is the material density, Cpis the mass heat capacity, T (−→r , t) and k(−→r , t) are time- and
space- dependent temperature and thermal conductivity of the material, g(−→r , t)is the generat-ing rate of heat source, hi is the heat transfer coefficient on the boundary surface of the chip,
fi(−r→si, t) is an arbitrary function on the boundary surface si, and
∂
∂ni is the differentiation along
the outward direction normal to the boundary surface si.
Since we apply the heat-transfer equation to steady-state condition, the left part of Eq.(2.1), which is not variable with time parameter is equal to zero shown on Eq.(2.3). The steady-state heat-transfer equation Eq.(2.4) can be derived as follows.
0 = ∂T (− →r , t) ∂t = 1 ρCpO · [k( − → r , t)OT (−→r , t)] + 1 ρCp g(−→r , t) (2.3) − 1 ρCp g(−→r , t) = k ρCpO · [OT ( − →r , t)] (2.4)
In order to solve the temperature distribution with finite-difference method and finite-element method, we apply the central-finite-difference approximation and discretize Eq.(2.4) in the spa-tial domain to construct the given design into equivalent thermal conductance circuits shown in Fig. 2.2. After modeling this equivalent circuit, it can be stamped into matrix equation, Eq.(2.5), based on modified nodal analysis (MNA) method. The parameter G is the thermal conductance coefficient of corresponding grid by equivalent weighted summation, parameter t represents the concerning temperature vector of corresponding grids, and p is the heat source vector of corresponding grids.
Fig. 2.2: The thermal circuit model of this numerical thermal simulation on steady state.
Chapter 3
The Framework of 3D-AADI Simulator
We approach a both adaptive thermal simulator and integrable thermal-aware kernel on 3D ICs. It considers three-dimension structure [6] practically and provides the whole 3DIC temperature distribution of steady state. In order to generate the adaptive simulating geometry depending on thermal gradients at the beginning, we utilize the characteristics of heat dissipation as our initial heat estimator. Furthermore, we develop our 3D-AADI algorithm that not only has the property of linear complexity based on the ADI concept but also applies it into non-uniform simulation grids on both construction and calculation. Since we do take incremental application, local refinement, and temperature-aware design into consideration, 3D-AADI algorithm can be applied to local refinement and incremental updating during design iterations. That is to say, this simulator can both provide adaptive temperature distribution profile depending on user-defined or estimator-suggesting granularity, and be suitable to be applied to 3DIC CAD flow.
For temperature verification, Fig. 3.1 gives an overview. At the beginning, simulator parses 3DIC geometry, power library and material files as input information to build heat sources and thermal elements of simulation grids. Then, the first process for 3D-AADI is to provide heat-trend curve as estimator-defined suggestion or to initially discretize the chip into grids of user-given resolution. The second process of 3D-AADI is to establish the adaptive simulating geometry by referring the estimating heat gradients. The third is to construct non-uniform ther-mal circuits, and the fourth is to solve matrices of non-uniform meshing by 3D-AADI algorithm to provide the temperature distribution profiles as output results.
On the other hand, local refinement and incremental-kernel application are discussed as future works on section 5.2.

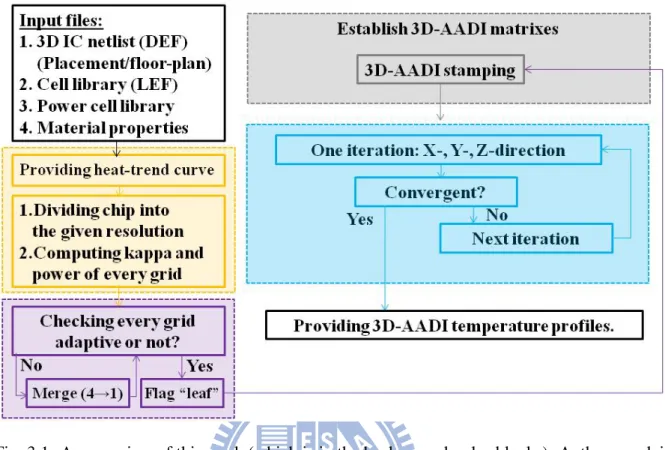

Fig. 3.1: An overview of this work (which is in the background-color blocks). Authors explain the left-middle orange block on section 3.1, the left-down purple block on section 3.2, the right-up gray block on section 3.3, and the right-middle blue block on section 3.4.
3.1
Initial Heat Estimator
As a quick estimator, we utilize 1D tiles which is composed of the compact thermal model (shown in Fig. 3.2) being our initial temperature estimator to obtain heat estimation. Concerning the accuracy of the compact thermal modeling, there are two reasons that the heat-dissipating in-fluence on vertical is much more obvious than on horizontal. First, the primary heat-dissipating path, including the primary and the secondary heat sinks decided by chip package, is vertical. Second, the boundary of four vertical surfaces can be treated as adiabatic [8] [9]. However, different estimating resolution causes different error rate. For the reason that 1D thermal model regards lateral heat dissipation as adiabatic between grids, and puts total power on the center of each units, it indicates that the bigger grid-number makes both a larger amount of error due to ignoring more lateral heat transformation and a larger amount heat distributing information of
each grid. On the other hand, smaller grid-number makes both a smaller amount of modeling error due to considering more lateral heat transformation and a larger amount temperature-like information of averaging feature. For these reasons, we can balance the trade-off between heat-distributing information and temperature-like information. In this way, plotting curves shown in Fig. 3.3 indicates us the suitable estimating grid-number resulting from ignoring suitable amount of lateral heat transformation.

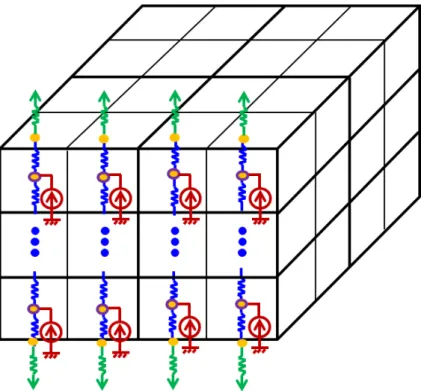

Fig. 3.2: The z-tile model of proposed initial estimator.
As soon as the simulator constructs the cell (including TSVs) information of power, material and position, curves (shown in Fig. 3.3 of grid number and heat difference display two parts, the linear region and the saturation region. The linear region for low grid number presents too much average property to concern accurate power distribution. On the other side, the saturation region for high grid number presents too much power distribution to concern lateral heat dissipation. In order to choose good suggesting resolution, we set criteria by abandoning the extreme and by obtaining enough heat information. On Eq.(3.1), we choose the integer level whose average-heat-difference changing rate is stable than its previous level,so we find the integer i such that average-heat-difference changing rate of leveli is very close to that of leveli+1.
Fig. 3.3: The z-tile curves built by initial heat estimator for test chip 1 (on left one) and test chip 2 (on right one). The x-scale presents planer grid number which is gridxby gridy of every
simulating z-tier. The y-scale presents the average of heat difference comparing with average temperature of the entire chip.
1 < (AvgErri− AvgErri−1)/AvgErri−1 (AvgErri+1− AvgErri)/AvgErri
< 1 + ε (3.1)
where AvgErri is the average of heat difference of i resolution reference by comparing with
chip average temperature, ε is a small and positive real number. Then, we divide the whole chip into grids of suggesting level, which can be user-given beforehand or estimator-defined by Eq.(5.1). In this way, the initial estimator applying 1D z-tile method for obtaining the trend of thermal dissipation is reliable to be the reference approximation on proper simulating grid size.
3.2
Adaptive Simulation Grids
Although there have been several approaches that applied finite-difference method to analyzing thermal dissipation, the runtime and the accuracy of their simulator are performance-limited by the most critical position usually on hot spots and (thermal or signal) TSVs. We develop our adaptive structure of simulation grids to eliminate the limited performance on spatial size of
critical simulated elements.

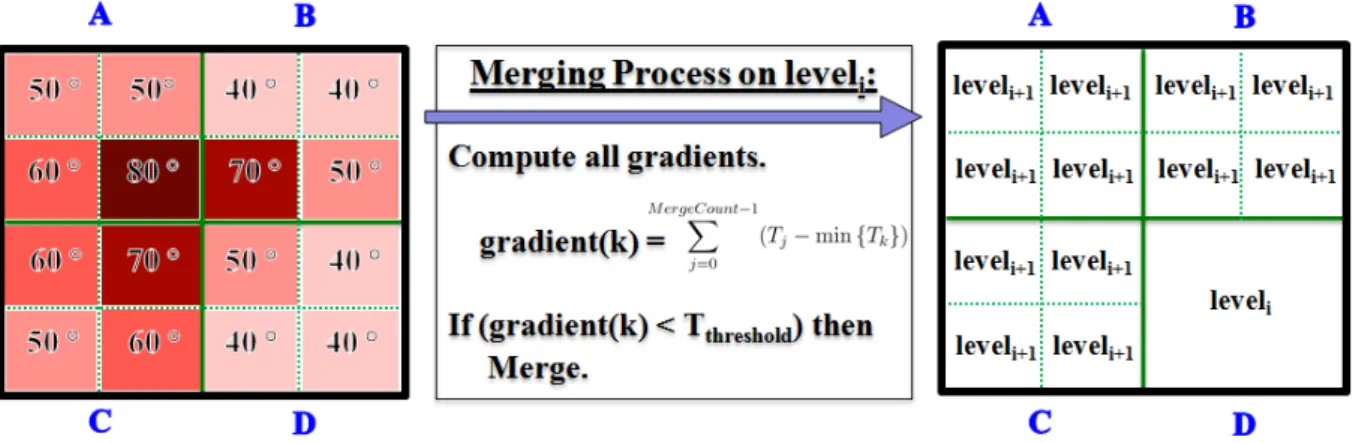

Fig. 3.4: The merging processes of each level decide the analyzing geometry by computing the gradients of initial estimator. The figure is a simple example of grid-merging process after the estimating temperature distribution is computed.
In order to construct adaptive simulation geometry, we approach “level” as the simulating size of grids. Take Fig. 3.4 for example, the finer grids belong to the higher level, and the coarser grids belong to lower level. As shown in Fig. 3.4, we illustrate a simple example of merging process. First of all, the heat information provided by z-tile estimator has been set up on part A, B, C, and D, each one of which is composed of four leveli+1grids on levelimerging
process. Secondly, we divide the section into finer grids with larger gradients and to merge the section to coarser grid with lower gradients, where “gradient” represents the summation of heat differences for four leveli+1children in leveli merging process. After choosing the lowest heat
information of four members for being the comparing base, we calculate the gradients on every sections of all levels to make the merging decisions. In order to reveal the maximum difference between children, we define gradient of section k including M ergeCount children grids as:
gradient(k) =
M ergeCount−1
X
j=0
(Tj− min {Tk}), (3.2)
where M ergeCount is the children count of the merging section. Then, until each simulating units satisfy the gradient threshold, the entire simulating geometry is constructed. Therefore, the resolution units sliced on initial estimating are merged to coarser level grid size if the gradient between its neighbors is smaller than the given gradient threshold. Otherwise, the original size
grids are flagged leaf as the current level in leveli merging. Finally, our simulator, constructing
each grid (shown in Fig. 3.6(a)(b)) into equivalent circuit (shown in Fig. 3.6(c)) by using thermal resistant model (shown in Fig. 2.2), considers both lateral and vertical thermal dissipation.
3D-AADI: Adaptive Simulation Grids Framework Input:
Material structures and power dissipation Output:
Data structures of node list on the whole chip
01 Calculate average temperature by total power and
equivalent kappa of each layer.
02 for each material Z layer do
03 Decide grid number according to gradient of average
temperature between neighbor layers.
04 end
05 Estimate initial temperature based on Z-tile simulating on the defined maximum grid granularity.
06 if LocalRefine == true then
07 Modify MaxLevel
08 for level i = MaxLevel - 1 : 0 do
09 Calculate gradient and average temperature of
each grid on level i.
10 end
11 for level i = MaxLevel - 1 : 0 do
12 for grid k = LevelGridCount - 1 : 0 do
13 if LevelGridGradient >= Threshold then
14 Construct(/Make leaf) Node as level i + 1
15 end
16 for grid k = LevelGridCount - 1 : 0 do
17 if one of grid neighbors has been Node then
18 Construct(/Merge) Node as level i
19 end
20 end

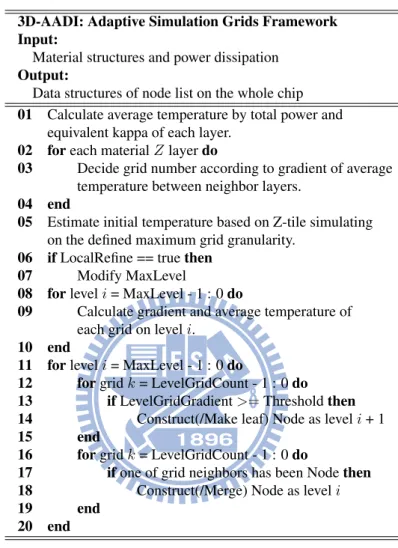

Fig. 3.5: Adaptive Simulation Grids Framework.
Pseudo code of adaptive simulating grids framework is derived in Fig. 3.5. First of all, we calculate average temperature by total power and equivalent kappa of each layer to decide the z grid number. Then, we establish the initial heat estimation by slicing into user-given or estimator-defined proper granularity, and check every grids until the whole geometry of simu-lating grids are adaptive for satisfying the gradient threshold.

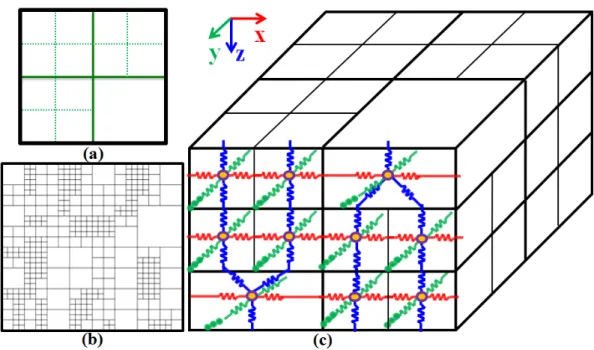

Fig. 3.6: The geometry distribution of adaptive simulation grids considering the gradient of es-timating temperature. (a) The front view of chip sliced into simulation grids. (b) The front view of non-uniform simulating case of our test chip 2. This is also the initial adaptive geometry on layer 1 of Fig. 4.8. (c) The perspective view after constructing the equivalent thermal resistant mesh of 3D chip, and the front view is shown on (a).
3.3
Non-Uniform Meshing Construction on 3D-AADI
For a given chip, the temperature distribution in the steady state is governed by Eq.(2.3) and is subject to the boundary conditions in Eq.(2.2). To solve Eq.(2.4) with the finite-difference method, discretization is necessary in spacial domain. When u is differentiable at x, then we have the following limit by Taylor’s formula:
u(x + h) = u(x) + hdu dx+ h2 2 d2u dx2 + h3 6 d3u dx3 + h4 24 d4u dx4(ξ+) (3.3)
for some (ξ+) in the interval (x, x + h) and
u(x − h) = u(x) − hdu dx+ h2 2 d2u dx2 − h3 6 d3u dx3 + h4 24 d4u dx4(ξ−) (3.4)
in which (ξ−) belongs to the interval (x − h, x). Therefore, adding Eq.(3.4) and Eq.(3.3), and
dividing through by h2, the approximation of the second order derivative of u at x is
d2u(x) dx2 =
u(x + h) − 2u(x) + u(x − h)
h2 −
h2 12
d4u
dx4(ξ), (3.5)
where ξ− ≤ ξ ≤ ξ+. The formula is called a centered difference approximation of the second
derivative.
Applying the centered difference approximation in Eq.(3.5) to a finite number of grid points in a second-order parabolic partial differential equation,
∂u ∂t = ∂2u ∂x2 + ∂2u ∂y2 + ∂2u ∂z2, u(x, y, z, 0) = u0(x, y, z), (3.6)
with u (independent of t) prescribed on the boundaries for the ∂x∂22,
∂2
∂y2, and
∂2
∂z2 terms, we use a
mesh size of ∆x for the x variable, ∆y for the y variable, and ∆z for the z variable to discretize the continuous spacial domain into mesh grids. Then, according to central finite-difference discretization, the second order accurate approximation of the temperature T (−→r ) at grid point (i, j, k) can be replaced by T (i∆x, j∆y, k∆z) which is denoted as Ti,j,kn for the rest of the paper with respect to x can be expressed as:
∂2T
∂x2| n i,j,k =
Tn
i−1,j,k− 2Ti,j,kn + Ti+1,j,kn
(∆x)2 + O((∆x)
2) (3.7a)
≈ T
n
i−1,j,k − 2Ti,j,kn + Ti+1,j,kn
(∆x)2 ≡
δ2 xTn
(∆x)2, (3.7b)
where the truncation error is O((∆x)2), and similar processes can be applied to the y and z directions.
Concerning ADI method, it introduced by Peaceman and Rachford [20], and Douglas and Gunn [21] in the mid-1950s was developed for solving equations arising from finite difference discretization of elliptic and parabolic PDEs.
We define the deviation eni,j,kof the evolving solution Ti,j,kn from the desired finite-difference approximation to the steady-state convergence, Tx,y,z∗ . Substituting Eq.(2.4) and Eq.(3.7b), the convergent solution T∗ satisfies the equation
µ δx2 (∆x)2 + δ2 y (∆y)2 + δz2 (∆z)2 T∗ = p (3.8)
where µ is ρCk
p. Therefore, this deviation is given at the nth iteration by
eni,j,k = Ti,j,kn − Ti,j,k∗ . (3.9)
Eq.(3.8) using central finite-difference discretization results in the system of equation,
Ht + Vt + Zt = p, (3.10)
where H, V, and Z represent the central finite-difference discretization in Eq.(3.7b) to the op-erators δ2x (∆x)2, δ2 y (∆y)2, and δ2z
(∆z)2 in Eq.(3.8), respectively. The ADI algorithm consists of iterating
by solving Eq.(3.10) in the x, y, and z directions alternatively as follows. (H + ρnI) · t(n+ 1 3) = p − (V + Z − ρ nI) · t(n) (V + ρnI) · t(n+ 2 3) = p − (H + Z − ρ nI) · t(n+ 1 3) (Z + ρnI) · t(n+1) = p − (H + V − ρnI) · t(n+ 2 3) (3.11)
where ρnis a sequence of positive acceleration parameters. Since this work applies ADI concept
to non-uniform geometry, analyzing of ρnis still a difficulty to address.
Take Fig. 3.7(b) for example, when x sub-iteration executing, the one and only uncertainty is x implicit vector, the connection of other directions are explicit. For the executing direction d, the “Scan and do LU-decomposition for every LUVectorLists on d” function in Fig. 3.9 first checks this node being the head (e.g. Fig. 3.8 node 1, 9, 17, 18, and 27) of LU vector or not. For these head nodes, we find all neighbors to direction d and assign this node to be the head of these LU vectors for all branches (i.e. node 1, 9, and 17 have one, node 18 has two, and node 27 has four branch vectors to x−direction in Fig. 3.8) on d. Then, for each neighbor, we point to the next only one neighbor (e.g. Fig. 3.8 node 2, 10, 18, 19, 23, 28, 32, 37, and 40) on d and add it to be members of its LU vector until there is not only one neighbor (e.g. Fig. 3.8 node 18) or until the level of pointing node is smaller than that of head node (e.g. Fig. 3.8 node 39). Next, we regard this node as end (e.g. Fig. 3.8 node 8, 16, 18, 22, 26, 31, 35, and 39) of this LU vector and assign the end to be also the head of all next neighbors on d. Finally, after “Solve LUt = p by reusing LU-decomposition for every LUVectorLists on d” function in Fig. 3.13 provides new temperature for this LU vector, we update these new results into data structures. Furthermore, in order to overcome the convergence and to keep the accuracy, we
Fig. 3.7: (a) The constructing mesh including all directions. (b)(c)(d) One of different al-ternative directions utilizing 3D-AADI method when scanning on x−, y−, and z−direction, respectively. The step by step illustrate the framework of scan and solve LUVectorList of d.
treat every nodes with the same LU updating frequency on non-uniform meshing by making the end implicit and the head explicit (e.g. Fig. 3.8 node 18) of the node being both head and end. Besides, we deal with the updating temperature of gathering end (e.g. Fig. 3.8 node 39) to be the average of all these gathering results. Similarly, y-direction and z-direction, the other two sub-iteration utilize the same scanning rule.
Generally speaking, ADI method is one of numerical iterative methods. This method has the properties of linear complexity because of separating the equivalent circuit system (Eq.(2.5)) into different alternating subsystems. This characteristic guarantees that G matrix of every direction can be performed linearly during LU decomposition. Take Gx matrix, a subsystem
on x−direction, for example, several sub-LU matrices is shown on Fig. 3.10, where Gxk, one
Fig. 3.8: Finding the stamping LU members on x-direction of one of every layers on our 3D-AADI algorithm. The red rings stand for gathering nodes.
. In other words, each direction of ADI method is only related to the front and the back nodes, so solving-matrix execution of G on each direction has linear runtime. Since the strict convergence threshold causes the more times of iteration, the convergence rate of iteration can be controlled by the user given accuracy which is in our guaranteeing range.
3.4
Non-Uniform Meshing Calculation on 3D-AADI
According to the property of linear complexity, ADI algorithm is suitable to be applied to solve the larger scale matrix. Furthermore, in order to conquer the performance limitation due to finite-difference method on both critical and non-critical positions, we develop 3D-AADI algo-rithm and display the convergence of non-uniform meshing nodes. In addition, authors apply it to solving the non-uniform nodes. The illustration of scanning and deciding the members of every LU lists on x, y and z directions is shown in Fig. 3.8, Fig. 3.11 and Fig. 3.12, respectively. Taking this simulating geometry for example, there are three kinds of simulating size which are constructed by the previous geometry-deciding process (on section 3.2). After scanning and
3D-AADI: Scan and do LU-decomposition for every LUVectorLists on d Framework Input:
Doing direction d Output:
LUVector lists and LU-decomposition results of sub-iteration d
01 for Node n = NodeCount - 1 : 0 do
02 if (n belongs to boundary of head)
or (there exists Head) then
03 for Neighbor nei = NeiSize - 1 : 0 do
04 Add n to be Head of this LUVector.
05 This = next neighbor (on d) of n.
06 while This has only one next neighbor do
07 Add This into this LUVector.
08 This = next neighbor (on d) of This.
09 if This.level < Head.level then
10 break
11 end
12 Add This to be End of this LUVector.
13 for Neighbor N nei = ThisNeiSize - 1 : 0 do
14 Add This to be Head of N nei’s LUVector.
15 end
16 if Head belongs to boundary of head then
17 Stamp subLU members excepting Head.
18 else
19 Stamp subLU members including Head.
20 subLU-DecompositionSolver(ThisLUVector).
21 end
22 end
Fig. 3.9: Scan and do LU-decomposition for every LUVectorLists on d Framework.
deciding the members of every LU lists, we construct thermal circuits and stamp thermal con-ductance based on our 3D-AADI algorithm into LU-decomposition solver. (The pseudo code in detail of scanning function is derived in Fig. 3.9.) As shown in Fig. 3.10, it plays a very important role that the execution time of each sub-Gx matrices, Gxk, is linear with number
of unknown nodes. It is also important that the dimensions of each sub-matrix, Gx1, Gx2, ...,
and GxN, are independent. In this way, the linear complexity property of each sub-LU matrix
implies to the linear complexity property of the entire algorithm. We elaborate the framework of non-uniform meshing calculation on 3D-AADI by Fig. 3.13. First of all, we scan and do LU-decomposition for every LUVectorLists on every d to obtain the LU-decomposition results for reusing during iterations. Secondly, while the maximum of absolute temperature difference at last iteration is bigger than the given convergent threshold, we execute the next iteration
in-Fig. 3.10: The entire stamping LU matrix of x-direction on our 3D-AADI algorithm. The dimension of unknown-node vector for every sub-LU matrices, Gx1, Gx2, ..., and GxN can be
independent. In this way, the linear complexity property of each sub-LU matrix implies to the linear complexity property of the entire algorithm.
cluding three sub-iteration, x, y and z directions. Concerning the gathering nodes generated by non-uniform construction, we average all gathering results of relating LUVectorLists to bal-ance the convergence and the accuracy. The gathering nodes are defined by red rings shown in Fig. 3.8, Fig. 3.11, and Fig. 3.12. The function named “Scan and do LU-decomposition for every LUVectorLists on d” on line 2 of Fig. 3.13 scans and executes LU-decomposition for ev-ery LUVectorLists of direction, d. As long as one entire iteration, including three sub-iteration, is done, we calculate the maximum and average difference temperature to decide whether it is convergent or not.
According to the following derivation, because of the non-uniform meshing of thermal con-ductance and the independent dimension between sub-LU matrices, convergent iterations and executing time are wasted by waiting different convergence of several matrices with different numerical scale. We apply the matrix splitting [22]
G = M − N (3.12)
Fig. 3.11: Finding the stamping LU members on y-direction of one of every layers on our 3D-AADI algorithm. The red rings stand for gathering nodes.
Fig. 3.12: Finding the stamping LU members on z-direction of one of every layers on our 3D-AADI algorithm. The red rings stand for gathering nodes. Besides, the rings with dotted lines stand for the horizontal neighbors on the same layer on z-direction.
3D-AADI: Non-Uniform Meshing Calculation Framework Input:
Data structures of node list on the whole chip Output:
Convergent 3D-AADI temperature distribution
01 for Direction d = 0 : 2 ( X−, Y −, Z− ) do
02 Scan and do LU-decomposition for every LUVectorLists on d.(Fig. 3.9)
03 end
04 while (AbsoluteMaxDifferenceT > ConvergentThresholdT)
or (iteration == 0) do
05 AbsoluteMaxDifferenceT = 0
06 for Direction d = 0 : 2 ( X−, Y −, Z− ) do
07 Solve LU t = p by reusing LU-decomposition for every LUVectorLists on d.
08 for Node n = NodeCount - 1 : 0 do
09 if End node belongs to gathering tail then
10 n.newT = average of all n.newT.
11 n.oldT = n.newT.
12 end
13 end
14 Update AbsoluteMaxDifferenceT for checking convergency.
15 iteration ++ .
16 end
Fig. 3.13: Non-Uniform Meshing Calculation Framework.
by recurrence,
tk+1= M−1Ntk+ M−1p, (3.13)
where tk+1 is implicit and tk is explicit during iterations. For solving the system, tk is
ap-proaching tk+1when the iteration converges. Eq.(3.13) has the relation
I − M−1N t = M−1p.
Utilizing Eq.(3.12), we replace N with M − G and derive as following. I − M−1(M − G) t = M−1p.
I − M−1M + M−1G t = M−1
p.
M−1Gt = M−1p. (3.14)
The Jacobi iteration determines the ith component of the next approximation so as to anni-hilate the ith component of residual vector. In the following, uk
the iterate tkand p
i the ith component of the right-hand side p in Eq.(2.5). Thus, writing
p − Gtk+1i = 0,
in which (vector)i represents the ith component of vector, yields giiuk+1i = − n X j=1,j6=i gijukj + pi or uk+1i = 1 gii pi− N X j=1,j6=i gijukj ! , i = 1, ..., N, (3.15)
where gij is (i, j) component of G. Then, block relaxation schemes [22] are generalizations
of point relaxation schemes described in Eq.(3.15). They update typically a subvector of the solution vector, instead of only one component. The matrix G and the right-hand side and solution vectors are partitioned from Eq.(2.5) as follows:
G = G11 G12 · · · G1m G21 G22 · · · G2m .. . ... . .. ... Gm1 Gm2 · · · Gmm , t = t1 t2 .. . tm , p = p1 p2 .. . pm , (3.16)
in which the partitionings of p and t into subvectors piand tiare identical and compatible with
the partitioning of G. Thus, for any vector t partitioned as in Eq.(3.16), [Gt]i =Pm
j=1Gijtj, in
which [vector]i denotes the ith subvector of vector according to the above partitioning. With the splitting definitions in Eq.(3.12) and the block relaxation schemes in Eq.(3.16), we generalize the previous iterative procedures in Eq.(3.13). Then, the block Jacobi iteration is now defined as a technique in which the new subvectors tki are all replaced according to
tk+1i = M−1i Nitki + M −1
i pi, i = 1, ..., m, (3.17)
where Mi is the corresponding preconditioning sub-matrix, and Ni are the corresponding
sub-matrix of splitting matrices, M and N, in Eq.(3.12), respectively. In order to improve the con-vergence of a preconditioned system in Eq.(3.13), we precondition each sub-matrix in Eq.(3.17) for every diagonal entry before LU-decomposition of each sub-system.
Since the implicit variables are only in one direction in each step, the matrix for solving the ADI method at each direction is tridiagonal. During the LU decomposition, no matrix solving is required, so runtime for solving the tri-diagonal matrix is linear. The complexity for ADI methods is O(N · 3 · IJ K) = O(nodeADI), where N is the iteration number, nodeADI is
the node account for solving problem, I, J , and K are the discrete number on x, y, and z, respectively. Concerning the proposed 3D-AADI, we regard the nodes being both head and tail are implicit on only being tail, the complexity for 3D-AADI methods is O(N · [(I1+ I2+ ...) +
(J1+ J2+ ...) + (K1+ K2+ ...)]) = O(node3DAADI), where node3D−AADI is the node account
for non-uniform geometry, Ik, Jk, and Kkis the node number of each LU vector on x, y, and z,
respectively. For the reason that node3D−AADI is much smaller than nodeADI, we improve the
Chapter 4
Experimental Results
To verify that 3D-AADI can not only provide accurate temperature but speed up on the same resolution, we develop the entire 3D-AADI algorithm and provide the simulating results. Since the complexity of 3D-AADI, which is linear, is much lower than the complexity of direct solving thermal conductance matrix, the higher simulating resolution leads to the more speeding up. Furthermore, 3D-AADI does save execution time and resource, that is to say, it can display the finer simulating resolution on finite hardware resource.
The developed 3D-AADI thermal simulator is implemented in C++ language and tested on a Linux system with Intel Xeon 3.0-GHz CPU and 32 GB memory. The size of given 3D test chip 1, a 3-layer circuit, is 379.06 µm by 379.06 µm for width and height respectively, and the size of given 3D test chip 2, a 3-layer circuit, is 6600 µm by 6600 µm for width and height respectively. The unit of the shown temperature distribution is◦C. The equivalent heat transfer coefficients of the primary and secondary heat flow paths, and thermal conductivity are 8700 W/(m·◦C), 2017 W/(m·◦C), and 148 W/(m·◦C),respectively. The boundary condition of each vertical surface is set to be isothermal [8] [9].
We demonstrated that our 3D-AADI simulator is much more efficient than traditional uni-form ADI and FDM-MNA due to both avoiding the limited simulating peruni-formance of the most critical position and to the mathematical complexity. The approach can be not only adaptive for verification but incremental for application to 3D ICs especially on physical design due to the huge computation. Furthermore, the 3D-AADI tool can be regard as both a reliable thermal simulator and a thermal-driven kernel on 3DIC design flow.
4.1
Adaptive Distribution Results
In order to strike a balance between the runtime and accuracy, 3D-AADI simulating geome-try can avoid being performance-restricted by the most critical position usually on hot spots and (thermal or signal) TSVs, because we develop the merging processes depending on heat gradients to construct adaptive geometry of simulation grids.
We compare adaptive simulating geometry with traditional uniform slicing to verify that 3D-AADI does avoid the performance limitation by merging the much less critical position. In this way, we display temperature by golden solution, uniform slicing of traditional ADI, and adaptive slicing of 3D-AADI respectively to demonstrate our adaptive contribution.
Fig. 4.1 shows the temperature by Finite Difference Method on Modified Nodal Analysis (FDM-MNA) temperature solver. Since the accuracy of FDM-MNA has been compared with SPICE by the same FDM thermal model, we treat FDM-MNA results as simulating golden solution. In order to compare both the convergence and accuracy, Fig. 4.2 shows temperature distribution of every layer. Fig. 4.3 shows the solution which is convergent to 0.01% provid-ing by 3D-AADI algorithm with non-uniform grids. Fig. 4.4 shows the temperature which is convergent to 0.0001% by our 3D-AADI algorithm, where “convergent” means the maximum comparison rate of every corresponding-grid temperature between this and lase iteration.
Although the temperature range in Fig. 4.2 and Fig. 4.3 is too small to demonstrate the accuracy between 0.01% and 0.0001% convergence, our 3D-AADI can speed up 274 times than FDM-MNA (shown on Table 4.1) especially for higher resolution. According to Fig. 4.6 and Fig. 4.7, they point out that 3D-AADI solution is both very fast (61 times than FDM-MNA shown in Table 4.3) and very approaching to golden solution when it is 0.01% convergence. As a result of linear complexity, 3D-AADI has much higher efficiency, 117 times, than FDM-MNA. Besides, it is the same with golden solution when it is convergent to 0.0001% shown in Fig. 4.8.
We can clearly indicate that our 3D-AADI tool can be regarded as both a reliable thermal simulator and a thermal-driven kernel on 3D IC design flow. First, we display the results by traditional ADI algorithm and compare with our golden solution, FDM-MNA under the same simulating-grid geometry. Then, the maximum error percentage is under 10E-6. Furthermore,
Fig. 4.1: Finite Difference Method on Modified Nodal Analysis (FDM-MNA) Results on test chip 1. We regard the FDM-MNA temperature distribution as our golden solution and compare the error rate with its average degree. The temperature profiles are shown by tiers of every active layers. Actually, our simulating tiers on z can be much larger than active numbers depending on user-setting accuracy.
Fig. 4.2: FDM-MNA golden solution temperature with grids-number 32 by 32 of test case 1.
Fig. 4.3: The solution which is convergent to 0.01% providing by 3D-AADI algorithm with non-uniform grids of test case 1.
Fig. 4.4: Temperature solution which is convergent to 0.0001% providing by our 3D-AADI algorithm with non-uniform grids of test case 1.
Fig. 4.5: Finite Difference Method on Modified Nodal Analysis (FDM-MNA) Results on test chip 2. We regard the FDM-MNA temperature distribution as our golden solution and compare the error rate with its average degree. The temperature profiles are shown by tiers of every active layers. Actually, our simulating tiers on z can be much larger than active numbers depending
Fig. 4.6: FDM-MNA golden solution temperature with grids-number 32 by 32 of test case 2.
Fig. 4.7: The solution which is convergent to 0.01% providing by 3D-AADI algorithm with non-uniform grids of test case 2.
Fig. 4.8: Temperature solution which is convergent to 0.0001% providing by our 3D-AADI algorithm with non-uniform grids of test case 2.
we implement our 3D-AADI algorithm and compare with both golden solution and traditional ADI, the results (For example, 100-200 Lx and 100-200 Ly on layer 3 in Fig. 4.4 are merged. For example, 200-380 Lx and 0-380 Ly on layer 3 in Fig. 4.8 are merged. ) are convergent to golden solution and our simulating-grid geometry is much more adaptive.
Furthermore, the comparison also indicates that an accurate temperature simulation should take lateral heat-transformation into consideration, because z-tile method, which applies 1-D compact thermal model to temperature estimators, displays the influence on only power source and material without lateral heat spreading. As the increasing number of simulating grids shown on Fig 3.3 , both the range of temperature and the error percentage increase.
4.2
Comparison of Convergence Results
We can construct adaptive simulating geometry and develop non-uniform scanning algorithm to handle non-uniform meshing which traditional ADI method utilized on uniform spatial step size of each direction can not solve. Besides, since we concern both a huge amount of compu-tation and incremental updating during temperature-aware design on 3D chips, the LU and LUx complexity of 3D-AADI is linear.
Since we have demonstrated the adaptive geometry on section 4.1, we extract the execution time and the maximum error between non-uniform slicing, uniform slicing and FDM-MNA simulation methods in this section shown on Table 4.1 and Table 4.3. We can find out not only that all of them are speed up but also that the finer simulating granularity results in the more tremendous speeding up. In addition to time enhancement, since non-critical position is preserved from both unwanted runtime and resource consumption by the proposed adaptive simulating-geometry process, 3D-AADI can also reduce the maximum error rate shown in Ta-ble 4.3.
Concerning each process, Table 4.2 and Table 4.4 demonstrate that the partial executing time is linear-like growth for both LU and LUx. It is the reason that 3D-AADI is low-complexity algorithm for achieving both efficient runtime and accuracy.
slic-ing, uniform slicing and MNA simulation methods shown on Table 4.5 and Table 4.6. The comparison indicates that our 3D-AADI simulator is more accurate than traditional ADI simu-lator and much more efficient than MAN.
chip 1 FDM-MNA Uniform Geometry Non-Uniform Geometry grid Cnvg itr# time MxErRt SpUp itr# time MxErRt SpUp 4x4 0.1% 30 2 10 0.0078 3 2 10 0.0078 3 0.01% 12 10 0.0056 3 12 10 0.0056 3 8x8 0.1% 60 1 10 0.0087 6 2 10 0.0084 6 0.01% 16 30 0.0064 2 19 30 0.0058 2 16x16 0.1% 620 1 40 0.0090 15.5 5 80 0.0085 7.75 0.01% 8 50 0.0082 12.4 15 100 0.0074 6.2 32x32 0.1% 6040 2 180 0.0090 33.56 7 300 0.0129 20.13 0.01% 3 180 0.0090 33.56 22 460 0.0109 13.13 64x64 0.1% 98060 2 680 0.0091 144.21 8 1020 0.0246 96.14 0.01% 2 680 0.0091 144.21 49 2630 0.0154 37.29 128x128 0.1% 805880 2 2770 0.0091 290.93 14 2940 0.0119 274.11 0.01% 2 2770 0.0091 290.93 49 5430 0.0065 148.41 Table 4.1: The executing time results of FDM-MNA, uniform and non-uniform simulating algorithm on test chip 1.
chip 1 Uniform Geometry Non-Uniform Geometry grid Cnvg Est. Cnstr LU LUx Est. Cnstr LU LUx 4x4 0.1% 0 0 10 0 0 0 10 0 0.01% 0 0 10 0 0 0 10 0 8x8 0.1% 0 0 0 10 0 0 10 0 0.01% 10 0 10 10 0 10 10 10 16x16 0.1% 10 0 30 0 10 20 40 10 0.01% 10 0 20 20 10 10 40 40 32x32 0.1% 40 10 100 30 50 40 110 100 0.01% 30 10 90 50 50 40 100 270 64x64 0.1% 160 30 340 150 160 160 300 400 0.01% 160 30 340 150 160 150 300 2020 128x128 0.1% 640 150 1340 640 570 700 530 1140 0.01% 640 150 1340 640 570 700 530 3630
Table 4.2: The partial executing time results of FDM-MNA, uniform and non-uniform simulat-ing algorithm on test chip 1.
chip 2 FDM-MNA Uniform Geometry Non-Uniform Geometry grid Cnvg itr# time MxErRt SpUp itr# time MxErRt SpUp 4x4 0.1% 40 12 10 0.0033 4 14 10 0.0321 4 0.01% 23 10 0.0008 4 24 10 0.0321 4 8x8 0.1% 80 27 10 0.0117 8 26 10 0.0149 8 0.01% 57 20 0.0020 4 65 10 0.0131 8 16x16 0.1% 600 47 60 0.0299 10 42 40 0.0316 15 0.01% 122 120 0.0045 5 119 70 0.0222 8.57 32x32 0.1% 5860 59 620 0.0847 9.45 51 290 0.0875 20.21 0.01% 271 2740 0.0117 2.14 238 1060 0.0216 5.53 64x64 0.1% 75880 32 2000 0.1578 37.94 42 1240 0.0937 61.19 0.01% 515 30370 0.0347 2.50 266 6010 0.0208 12.63 128x128 0.1% 570630 11 4050 0.1947 140.90 40 4870 0.0657 117.17 0.01% 506 136160 0.1005 4.19 192 18500 0.0328 30.84 Table 4.3: The executing time results of FDM-MNA, uniform and non-uniform simulating algorithm on test chip 2.
chip 2 Uniform Geometry Non-Uniform Geometry grid Cnvg Est. Cnstr LU LUx Est. Cnstr LU LUx 4x4 0.1% 0 0 0 10 10 0 0 0 0.01% 10 0 0 0 10 0 0 0 8x8 0.1% 0 0 0 10 0 10 0 0 0.01% 0 0 10 10 0 0 0 10 16x16 0.1% 0 10 0 50 0 10 0 30 0.01% 0 10 0 110 0 10 0 60 32x32 0.1% 10 10 30 570 10 30 30 220 0.01% 0 10 30 2700 10 20 30 1000 64x64 0.1% 50 30 160 1760 40 130 110 960 0.01% 30 30 150 30140 40 120 110 5740 128x128 0.1% 170 150 750 2980 170 570 430 3700 0.01% 160 150 750 135100 170 570 420 17340
Table 4.4: The partial executing time results of FDM-MNA, uniform and non-uniform simulat-ing algorithm on test chip 2.
Max. 4x4 grids 8x8 grids 16x16 grids 32x32 grids Geometry Error Node # iter # Node # iter # Node # iter # Node # iter #
Uniform 1% 1 1 1 1 Simulating 0.5% 128 54 512 41 2048 86 8192 251 Grids 0.1% 1698 5683 17588 60804 Non-Uniform 1% 1 1 3 36 Simulating 0.5% 128 54 464 30 1736 54 5192 230 Grids 0.1% 1698 4939 11574 46656 Table 4.5: The iteration results of uniform and non-uniform simulating geometry on test chip 1.
Max. 4x4 grids 8x8 grids 16x16 grids 32x32 grids Geometry Error Node # iter # Node # iter # Node # iter # Node # iter #
Uniform 1% 8 30 91 298 Simulating 0.5% 128 11 512 41 2048 124 8192 403 Grids 0.1% 21 78 226 719 Non-Uniform 1% 10 33 88 263 Simulating 0.5% 56 13 344 48 944 124 3128 367 Grids 0.1% 20 83 202 613
Chapter 5
Future Works and Applications
5.1
Enhancement of Suggesting Resolution
After finding the integer i such that average-heat-difference changing rate of leveliis very close
to that of leveli+1 on Eq.(3.1), we can also take chip-size, runtime, accuracy, and hardware
resource into consideration to decide the simulating resolution on Eq.(5.1).
resolution = i + α · Size + β · T ime + γ · Accuracy−1+ δ · Resource (5.1)
where Size representing the chip size, T ime representing the tolerance runtime for users, Resource representing the resource of test machine, and Accuracy−1 representing the toler-ance accuracy are user-setting constants, and α, β, γ, δ are author’s experimental parameters.
5.2
Local Refinement and Incremental Design
For temperature verification, Fig. 3.1 gives an overview. On the other hand, concerning local refinement and incremental-kernel application, 3D-AADI owns the feature of executing sec-tional “3D-AADI stamping” (a matrix-establishing process shown in Fig. 5.1) for the updating regions during thermal-aware design iterations. The enhancement, local refinement, and appli-cation, incremental kernel, are discussed as future works on section 5.2.
Fig. 5.1: An overview of this work (which is in the background-color blocks) and 3D-AADI enhancement. Authors explain the left-middle orange block on section 3.1, the left-down purple block on section 3.2, the right-up gray block on section 3.3, and the right-middle blue block on section 3.4. Besides, the right-middle green sub-flow, which illustrates our 3D-AADI algorithm can be both enhanced in local-refined simulation and applied to thermal-driven kernel into the entire physical design flow, is discussed as future works and applications on section 5.2.
region of the changed grids by sectional “3D-AADI stamping” to the matrix G of Eq.(2.5), this simulator after being enhanced by local refinement and being applied by thermal kernel is both adaptive and incremental. Indeed, it is one of good solution to integrated into physical design flow as thermal-driven kernel due to not only that the node meshing can be non-uniform but also that the data structures of the updated sub-circuits are incremental. For these reasons, the thermal analysis solver can be both a simulator and thermal-aware design kernel. Fig. 5.2 illustrates the local adjustment of grids for satisfying the temperature gradient requirement on the affected region around the updated grids. Pseudo code of local refinement framework is derived in Fig. 5.3.
Fig. 5.2: Local refinement on the affected region around the updated grids for satisfying the requirement.
3D-AADI:Local Refinement Framework Input:
Affected field Output:
New refresh temperature of affected field
01 for Node n = AffectedNodeCount - 1 : 0 do
02 Update and re-slice node of affected field.
03 Construct new node of affected field.
04 Connect neighbors of new node.
05 Update LUVector of affected field.
06 subADILUVectorSolver(UpdateLUVector).
08 end
07 Update temperature of affected field.
Chapter 6
Conclusions
3D ICs, which deal with cost-effective achievement by increasing the densities of interconnec-tion between dies, are regarded as an attractive alternative soluinterconnec-tion for overcoming the bottle-necks on 2D planar ICs. In fact, 3D ICs offer the increased system a large number of advantages. However, one of critical challenges is heat dissipation due to higher accumulated power density and lower thermal conductivity of inter-layer dielectrics for vertical stacking layers of active tier. In this way, the management of thermal issues should be considered during physical design stages rather than only post-packaging verification on the future highly integrated systems. For these reasons, we develop an adaptive thermal simulator applying our 3D-AADI algorithm ac-cording to ADI method to provide temperature distribution during 3D IC physical design flow from floor-plan to verification.
The simulator constructs adaptive size of simulation grids to avoid the limited simulating performance of the most critical position. Furthermore, we apply the concept of ADI iteration method to non-uniform nodes. Eventually, the 3D-AADI tool can be regard as both a reliable thermal simulator and a thermal-driven kernel on 3D IC design flow. The simulator we devel-oped is both adaptive and incremental.
We proposed a thermal simulator on 3D IC applying our 3D-AADI algorithm according to ADI concept to deal with temperature distribution during 3D IC physical design flow from floor-plan to verification. In order to avoid the performance limitation of the most critical po-sition such as hot spots and (thermal or signal) TSVs, this simulator utilizes adaptive analysis size of grids. Furthermore, we develop 3D-AADI algorithm according to the concept of ADI iteration method and analysis the non-uniform meshing calculation and convergence. Finally,
the simulator we developed is both adaptive and incremental, because the 3D-AADI tool can be regard as both a reliable thermal simulator and a thermal-driven kernel on 3D IC design flow from floor-plan to verification.
Bibliography
[1] P.D. Franzon, W.R. Davis, M.B. Steer, S. Lipa, E.C. Oh, T. Thorolfsson, S. Melamed, S. Luniya, T. Doxsee, S. Berkeley, et al. Design and CAD for 3D integrated circuits. In Proceedings of the 45th annual Design Automation Conference, pages 668–673. ACM, 2008.
[2] B. Black, DW Nelson, C. Webb, and N. Samra. 3D processing technology and its impact on iA32 microprocessors. In IEEE International Conference on Computer Design: VLSI in Computers and Processors, 2004. ICCD 2004. Proceedings, pages 316–318, 2004. [3] PD Franzon, WR Davis, MB Steer, H. Hao, S. Lipa, S. Luniya, C. Mineo, J. Oh, A. Sule,
and T. Thorolfsson. Design for 3D Integration and Applications. In Signals, Systems and Electronics, 2007. ISSSE’07. International Symposium on, pages 263–266, 2007.
[4] S. Im and K. Banerjee. Full chip thermal analysis of planar (2-D) and vertically integrated (3-D) high performance ICs. In International Electron Devices Meeting, pages 727–730. IEEE; 1998, 2000.
[5] L. Jiang, S. Kolluri, B.J. Rubin, H. Smith, E.G. Colgan, M.R. Scheuermann, J.A. Wakil, A. Deutsch, and J. Gill. Thermal modeling of on-chip interconnects and 3D packaging using EM tools. 2008 IEEE-EPEP Electrical Performance of Electronic Packaging, pages 279–282, 2008.
[6] Chang-Tzu Lin, Ding-Ming Kwai, Yung-Fa Chou, Ting-Sheng Chen, and Wen-Ching Wu. Cad reference flow for 3d via-last integrated circuits. In Proceedings of the 2010 confer-ence on Asia South Pacific design automation, pages 187–192. Citeseer, 2010.
