一適用於5-GHz單階降頻式接收器之高動態範圍自動增益控制電路

全文

(1)國立交通大學電子工程學系電子研究所碩士班. 一適用於5-GHz單階降頻式接收器之高動態範圍自動增益控制電路 A LOW POWER HIGH DYNAMIC RANGE AGC CIRCUIT FOR 5GHZ CMOS DIRECT CONVERSION RECEIVERS. 研究生：Ismail A. Hafez 指導教授：吳重雨博士. Hsinchu, Taiwan, Republic of China.

(2) 一適用於5-GHz單階降頻式接收器之高動態範圍自動增益控制電路. A LOW POWER HIGH DYNAMIC RANGE AGC CIRCUIT FOR 5GHZ CMOS DIRECT CONVERSION RECEIVERS. 研究生：Ismail A. Hafez. Student: Ismail Abdel Hafez. 指導教授：吳重雨博士. Advisor: Dr. Chung-Yu Wu. 國立交通大學電子工程學系電子研究所碩士班 A Thesis Submitted to Institute of Electronics College of Electrical Engineering and Computer Science National Chiao Tung University In partial Fulfillment of the Requirements for the Degree of Master in Electronics June 2004 Hsinchu, Taiwan, Republic of China.

(3) i.

(4) ii.

(5) A LOW POWER HIGH DYNAMIC RANGE AGC CIRCUIT FOR 5-GHz CMOS DIRECT-CONVERSION RECEIVERS Student: Ismail A. Hafez. Advisor: Prof. Chung-Yu Wu. Department of Electronics Engineering & Institute of Electronics National Chiao Tung University. ABSTRACT In this thesis, an AGC circuit with high dynamic range and a direct conversion receiver for 5GHz wireless LAN applications are designed and simulated in 0.18µm CMOS technology. The role of the AGC circuit is to provide a relatively constant output amplitude so that circuits following the AGC circuit require less dynamic range. The AGC circuit includes a dc offset cancellation circuitry that is necessary for direct conversion receivers. Its dynamic range is around 43dB at THD better than 15dBc, and it achieves 66dB continuous tuning range. The 5.25GHz receiver contains a low noise amplifier with 2dB noise figure (NF) and 19.5dB voltage gain, a quadrature voltage-controlled oscillator with 0.5GHz tuning range, a quadrature mixer with 7dB single sideband NF, and –4dBm input 1-dB compression point, a. iii.

(6) low pass channel-select filter, and an automatic gain control circuitry. The cascade noise figure is 4dB, and the cascade IIP3 is -7dBm. Operating from a 2-V supply, the power consumption for the receiver is 45mW. This thesis presents the lowest achieved power consumption and the lowest achieved noise figure reported to date for 5GHz direct conversion receivers. In other words, this is the first demonstration of a 5GHz CMOS direct-conversion receiver with excellent linearity and low dc power consumption.. iv.

(7) ACKNOWLEDGMENT I would like to acknowledge my teacher professor Chung-Yu-Wu for his great efforts during teaching me some courses, and for his fruitful cooperation, insightful comments, and suggestions concerning carrying out this research. Also many thanks go to my laboratory-mate Chung-Yun Chou for all his help and cooperation throughout performing the simulation phase of this work. Many thanks go also to my wife and my children who have sacrificed much in order that I may continue my education. This giving effort increases my already enormous indebtedness to them. v.

(8) CONTENTS ABSTRACT (CHINESE). i. ABSTRACT (ENGLISH). iii. ACKNOWLEDGEMENT. v. FIGURE CAPTIONS. ix. TABLE CAPTIONS. xiii. CHAPTER 1 INTRODUCTION 1.1 Background. 1. 1.2 Review on CMOS Receiver and AGC Circuits. 2. 1.3 Motivation. 8. 1.4 Organization of This Thesis.. 9. CHAPTER 2 THE DESIGN OF THE AUTOMATIC GAIN CONTROL CIRCUIT 2.1 Design Consideration. 11. 2.2 Design Concept. 13. 2.3 AGC Architecture. 18. 2.4 Principles of Operation. 19. 2.4.1 Variable gain amplifier including dc offset cancellation circuits vi. 20.

(9) 2.4.2 Peak detector. 27. 2.4.3 Loop filter. 29. 2.4.4 Low pass filter. 31. 2.5 Simulation Results. 35. CHAPTER 3 THE DESIGN OF THE 5GHz CMOS DIRECT CONVERSION RECEIVER 3.1 Receiver Fundamentals. 43. 3.1.1 Sensitivity. 44. 3.1.2 Linearity. 45. 3.1.3 Noise figure. 46. 3.1.4 Phase noise of the LO signal. 48. 3.2 Design Consideration and Performance Requirements for a 5-GHz WLAN Receiver. 50. 3.3 Low Noise Amplifier. 54. 3.4 Quadrature Down Conversion Mixer. 60. 3.5 Merged Voltage Controlled Oscillator. 65. 3.6 Simulation Results.. 69. CHAPTER 4 POST SIMULATION RESULTS 4.1 Chip Layout Description. 75. 4.2 Simulation Results. 75. vii.

(10) CHAPTER 5 CONCLUSIONS AND FUTURE WORK 5.1 Conclusions. 77. 5.2 Future Works. 78. REFERENCES. 79. viii.

(11) FIGURE CAPTIONS Fig. 1-1 Direct conversion receiver architecture. 5. Fig. 1-2 Direct conversion receiver architecture including DC offset cancellation circuit.. 7. Fig. 2-1 Modern communication system. 12. Fig. 2-2 Block diagram of the AGC. 15. Fig. 2-3 Equivalent model for the AGC circuit. 16. Fig. 2-4 The AGC inside the receiver. 20. Fig. 2-5 Existing gain varying techniques. 21. Fig. 2-6 Existing offset cancellation. 22. Fig. 2-7 The utilized variable gain amplifier. 24. Fig. 2-8 Gain variation of the VGA versus frequency. 25. Fig. 2-9 Structure of the differential peak detector. 28. Fig. 2-10 Equivalent circuit of the peak detector. 29. Fig. 2-11 Structure of the loop filter. 30. Fig. 2-12 Required elliptic low pass filter. 33. Fig. 2-13 Third order Gm-C low pass filter. 34. Fig. 2-14 Fully differential OTA with inherent CMF. 34. ix.

(12) Fig. 2-15 The gain turning curve of the four cascaded VGAs.. 36. Fig. 2-16 Frequency response of the four cascaded VGAs.. 36. Fig. 2-17 Variation of the cascaded VGAs gain and THD with input power. 37. Fig. 2-18 I and Q peak detector outputs and their summation. 38. Fig. 2-19 (a) Amplification of the 5MHz tone. (b) Attenuation of a 25MHz tone Fig. 2-20 Frequency response of the low pass filter. 40 41. Fig. 2-21 VGA gain variation due to offset voltage (a) With offset cancellation (b) Without offset cancellation. 42. Fig. 3.1 Two-tone test of a nonlinear system. 46. Fig. 3.2 Phase noise of LO signal. 49. Fig. 3.3 SNR degradation due to phase noise of the LO signal. 50 x.

(13) Fig. 3-4 LNA schematic. 56. Fig. 3.5 Inductive degeneration used as input matching. 56. Fig. 3.6 Equivalent circuit of LNA with noise sources. 58. Fig. 3-7 In-phase output of the down conversion mixer. 64. Fig. 3-8 The concept of current reuse technique in the receiver. 64. Fig. 3-9 The conceptual block diagram of the voltage controlled oscillator. 65. Fig. 3-10 Quadrature VCO schematic. 67. Fig. 3-11 (a) Simulated LNA voltage gain versus frequency (b) Simulated LNA NF versus frequency.. 71. Fig. 3-12 The output waveform of the quadrature oscillator. 71. Fig. 3-13 Tuning characteristics of the VCO. 72. Fig. 3-14 The VCO output spectrum. 72. Fig. 3-15 The mixer output spectrum. 73. Fig. 3-16 Two-tone intermodulation simulation results of the receiver’s front-end. 73 xi.

(14) Fig. 3-17 Receiver’s front-end S11 parameters versus frequency. 74. Fig. 4-1 Layout of one VGA circuit. 75. Fig.4.2 Layout of the AGC circuit. 76. xii.

(15) TABLE CAPTIONS. Table I Component values and channel dimensions of MOS devices of the AGC. 30. Table II Simulated AGC & LPF performance. 42. Table III Component values and dimensions of MOS devices of the LNA. 60. Table V Component values and MOS dimensions of the mixer and the VCO. 68. Table IV Simulated receiver performance compared to that required by IEEE 802.11a standard. 74. Table V Comparison between pre and post simulation results for the AGC circuit. xiii. 76.

(16) CHAPTER 1 INTRODUCTION. 1.1 Background Today, people can communicate with each other by the rapidly developed mobile communication systems such as PHS, GSM, and WCDMA. Recently, the growing popularity of notebook computers demands high data-rate wireless local area network (LAN) systems. Many existing wireless LANs operate in the 2.4GHz band. These products can achieve maximum data-rate of 11Mbits/s. The need for non-crowded, higher datarate wireless LAN products prompted the issue of the wireless networking communications standard 802.11a for operation at 5GHz. RF receiver is a key block of wireless communication systems. In modern RF mobile receiver systems, small form factor, light weight, low cost and low power dissipation are indispensable. In order to realize these systems, we require a circuit with high integration level and low power dissipation. So far, several structures for RF receivers have been implemented by using Si bipolar or GaAs FET technology for obtaining. 1.

(17) better high frequency characteristics. Recently, due to the fast development of deep submicron CMOS technology, it becomes feasible to implement RF receivers for wireless communication applications. The CMOS technology has the advantages of low cost and high integration, so it becomes an attractive solution for SOC design. In this thesis, the research focus is on the design and implementation of a high dynamic range automatic gain control circuit (AGC), and highintegration CMOS receiver. The key components in the CMOS receiver are low noise amplifier, quadrature voltage-controlled oscillator, quadrature mixer, low pass filter, and an automatic gain control circuitry. Since in modern communication systems, error free recovery of data from the input signal cannot occur until the AGC circuit has adjusted the amplitude of the incoming signal, special attention is paid here to the design of this AGC circuit, which is capable of dealing with the dc offset problem existing in direct conversion receivers.. 1.2 Reviews on CMOS RF Receiver and AGC Circuits Nearly all-existing radio receivers are designed based on a superheterodyne architecture [1]. In this simplest form, this receiver architecture filters the received radio frequency (RF) signal and converts it 2.

(18) to a lower intermediate frequency (IF) by mixing with an offset local oscillator. The resulting IF signal is then amplified before shifting to the baseband, where it is quantized and demodulated. Signal amplification at an intermediate frequency requires IF filters to be biased with large currents, causing substantial power dissipation. Further, these filters need many offchip passive components, adding to the receiver size and cost. Another important drawback of a superheterodyne architecture is that an unwanted signal situated at an intermediate frequency above the local oscillator’s frequency is also translated to the IF. Removal of this undesired signal, known as the image signal, requires a highly selective and expensive analog RF filter. The stringent RF filtering requirements can be relaxed by using a dual –conversion (two IFs) receiver at the cost of added receiver complexity and size. If the IF is designed to be centered at frequency zero, there is no image signal to be rejected and the analog filtering problem can be easily handled. This process of frequency translation to zero IF is called direct conversion. With zero IF, the desired signal is translated directly to the baseband. The direct conversion receiver architecture, therefore, relaxes the selectivity requirements of RF filters and eliminates all IF analog. 3.

(19) components, allowing a highly integrated, low-cost and low-power realization. The goal of this work is to achieve the lowest cost, highest performance, and lowest power consumption radio for the 802.11a standard. So the first observation that we can make is that the superheterodyne architecture is not a preferred solution since it requires off-chip surface acoustic wave (SAW) filters. Between direct conversion and low intermediate-frequency (IF) conversion, we realize that direct conversion suffers impairments of flicker noise, dc offset, even-order distortion, localoscillator (LO) pulling and LO leakage [2], while low-IF conversion is less susceptible to flicker noise and dc offset. However, low-IF conversion does also suffer impairments of even-order distortion, LO pulling, and LO leakage. Additionally, low-IF conversion requires stringent image rejection as an adjacent channel becomes its image, whereas direct conversion is often referred to as “no image.” Furthermore, the signal bandwidth in low-IF conversion is twice that in direct conversion, therefore requires doubling the analog-to-digital converter (ADC) sampling rate, and results in higher power consumption. Finally, the double signal bandwidth in low-IF conversion mandates to double the baseband filter bandwidth, which further increases design complexity and power consumption. As a result, direct-conversion. 4.

(20) architecture is therefore chosen, as indicated in Fig. 1-1, where the received radio frequency (RF) signal is first amplified by a low-noise amplifier (LNA), then directly down converted to baseband signals through a pair of mixers. The output of the mixers is fed into the first two high-pass variable gain amplifiers (HPVGAs). The output of the first two HPVGAs is fed into a sixth-order elliptical low-pass filter (LPF) for channel selection, and for rejection of continuous-wave (CW) or modulated interferers. The output of the LPF is then fed to the third and fourth HPVGAs. The outputs of the last HPVGA are passed on to analog-to-digital converters (ADCs) for further processing.. Mixer OI. HPF. LPF. LOI. A/D. VGA. VGA. VGA. VGA. LNA. VCO LOQ OQ. HPF. LPF. Mixer. Fig. 1-1 Direct conversion receiver architecture.. 5. A/D.

(21) Variable gain amplifier circuits are employed in many applications such as hearing aids [3], disk drives [4], and imaging circuitry in order to maximize the dynamic range of the overall system. A VGA is essentially important in virtually all wireless communication systems [5]. The demand of an automatic gain control (AGC) loop in wireless systems comes from the fact that all communication systems have an unpredictable received power. To buffer receiver electronics from change in input signal strength by producing a known output voltage magnitude, a VGA is typically used in a feedback loop to realize the AGC circuit. The existing AGC techniques include: digitally controlled AGC circuits, and tuned amplifier technique. In the digitally controlled technique, the VGA gain is set by the DSP. Where the digital word is converted to an analog voltage, which is used to control the dB-linear gain of the VGA. The receiver in this case employs other D/A converters for DC offset control as shown in Fig. 1-2. With the presence of a DSP in the receiver, complex nonlinear algorithms, which determines the DC level dynamically can be realized. The DC level is converted to an analog quantity then fed back to the baseband circuit.. 6.

(22) Although this technique is fast but it requires extra D/As to control the gain in the analog domain, and has unstable frequency response when the amplifying signals in fine steps. In the tuned amplifier technique [6], the gain of the tuned amplifier is controlled by adjusting the central frequency of a group of voltage-tuned tanks. So when the central frequency changes, the central frequency of the amplifier also changes and the gain is modified at the desired channel. Although this technique is characterized by its low power consumption, but it needs many LC tanks to control the gain of the amplifier, which means more noise and more chip area.. LPF. Mixer. VGA. + D/A. LNA. A/D. D/A DSP. VCO. D/A. D/A. + Mixer. LPF. A/D VGA. Fig. 1-2 Direct conversion receiver including DC offset cancellation circuit. 7.

(23) 1.3 Motivation The IEEE ratified in 1999 two wireless networking communications standard, dubbed 802.11a (for operation at 5GHz) and 802.11b (at 2.4GHz). The maximum data rate offered by the 802.11b is 11Mb/s. The 802.11a standard specifies operation over a generous 300-MHz allocation of spectrum for unlicensed operation in the 5GHz block. Of that 300MHz allowance, there is a continuous 200MHz portion extending from 5.15 to 5.35 GHz, and a separate 100MHz segment from 5.725 to 5.825 GHz. The IEEE 802.11a WLAN protocol provides data rates up to 54Mb/s using 20MHz channel bandwidth in the 5GHz unlicensed rational information infrastructure (UNII) band [7]. The data is modulated with BPSK, QPSK, 16QAM or 64QAM, and further mapped into 52 subcarriers of an orthogonal frequency division-multiplexing (OFDM) signal. The OFDM modulated signal is made of 48 data and 4 pilot subcarriers, with the subcarriers spaced 312.5KHz apart. Signal bandwidth is 16.25 MHz per channel with 20MHz channel spacing. A 20MHz channel spacing is used to reduce the interchannel interference. At the lowest data rate of 6Mb/s, the standard requires a minimum sensitivity of –82dBm and at the highest data rate of 54Mb/s, it requires a minimum sensitivity of –65dBm. The reduction. 8.

(24) in sensitivity for the higher data rates is due to the need for higher S/N for the higher order modulation type. In this thesis, we want to develop a high-integration low power CMOS receiver including automatic gain control (AGC) circuit that meets the IEEE 802.11a specifications. This design of receiver will base on the direct conversion topology since it relaxes the selectivity requirements of RF filters and eliminates all IF analog components, allowing a highly integrated, low-cost and low-power realization.. 1.4 Organization of This Thesis This thesis is divided into five chapters. In Chapter 1, the background and motivation of this research are presented. In Chapter 2, the circuit of the automatic gain control is proposed. Design consideration, and design concept of the automatic gain circuit are discussed in Section 2.1, and section 2.2 respectively. Then the AGC architecture is presented in Section 2.3. The principle of operation of all the circuits building the AGC block is presented in Section 2.4. Finally, the simulation results are shown in Section 2.5. In Chapter 3, the circuit of the receiver is proposed. Receiver fundamentals and design considerations about the receiver circuits are reported first in Section 3.1 and Section 3.2 respectively. Then the. 9.

(25) operational principle and circuit diagram of low noise amplifier, voltage controlled oscillator (VCO), and quadrature mixer, are shown in Section 3.3, 3.4, and 3.5 respectively. Finally, the simulation results are presented in Section 3.6. In Chapter 4, the layout for the CMOS AGC circuits is described. In Chapter 5, the conclusion and the future works are given.. 10.

(26) Chapter 2 THE DESIGN OF THE AUTOMATIC GAIN CONTROL CIRCUIT. 2.1 Design Consideration Direct-conversion receivers exhibit important advantages over superheterodyne receivers in some applications such as paging receivers [8], [9]. The most important feature of any direct-conversion receiver is its inherent simplicity. Such simplicity allows the designer to obtain small size and low power consumption in his design. The price paid for this simplicity is losing some important electrical features like dynamic range. To increase the dynamic range of the receiver via overcoming the changes in the input signal strength by producing a known output voltage, AGC systems should be used. The role of the AGC circuit is to provide a relatively constant output amplitude so that circuits following the AGC circuit as shown in Fig. 2-1 require less dynamic range. Usually, error free recovery of data from the input signal cannot occur until the AGC circuit has adjusted the amplitude of the incoming signal.. 11.

(27) As direct-conversion receivers posses many problems [10]-[13], like dc offsets and flicker noise, many constraints on the designed AGC should be taken into consideration. Such constraints include: - The AGC must include dc offset cancellation circuitry, without which clipping of the subsequent stages will result if not properly rejected. - Possessing wide tuning range, and high dynamic range. - The increase of the noise figure of the system due to the utilization of the AGC should be low. - Fast enough and low power consumption. - It should offer continuous control of the received signal instead of discrete control. - It should work with a low pass filter to reject any continuous wave or modulated interferers.. Received data pattern at analog input Fig. 2-1 Modern communication system. 12.

(28) 2.2 Design Concept Usually, error free recovery of data from the input signal in digital communication systems cannot occur until the AGC circuit has adjusted the amplitude of the incoming signal. Such amplitude acquisition usually occurs during a preample where known data are transmitted, as shown in Fig. 2-1. The preample duration must exceed the acquisition or settling time of the AGC loop, but its duration should be minimized for efficient use of the channel bandwidth. If the AGC circuit is designed such that the acquisition time is a function of the input amplitude, then the preample time is forced to be longer in duration than the slowest possible AGC circuit acquisition. Consequently, to optimize system performance, the AGC loop settling time should be well defined and signal independent. The AGC loop depicted in Fig. 2-2 consists of a variable gain amplifier (VGA), a peak detector, and a loop filter. The AGC loop is in general a nonlinear system having a gain acquisition settling time that is input signal level dependant. With the addition of the logarithmic function block between the envelope detector and the loop filter, and appropriate design of the loop components, the AGC system can operate linearly in decibels [14]. This simply means that if the amplitude of the input and output signals of the AGC are expressed in decibels (dB), then the system 13.

(29) response can be made linear with respect to these quantities. Since this logarithmic function needs more circuits to be realized, this block will be omitted in this design. To see under what constraints this new architecture can work, some derivations without this block will be performed as shown below. Without loss of generality all signals shown will be expressed as voltages. The gain of the VGA, G(Vctr.), is controlled with the voltage signal Vctr. The peak detector and loop filter form a feedback circuit that monitor the peak amplitude, Ao, of the output signal Vo and adjusts the VGA gain until the measured peak amplitude, Vp, is made equal to the DC reference voltage, Vref. The output of the AGC circuit is simply the gain times the input signal: Vout (t) = G(Vctr.) Vin(t). Since the feedback loop only responds to the peak amplitude, the amplitude of Vout is Ao = G(Vctr) Ai. (2.1). Where Ai is the peak amplitude of Vin. The equivalent representation of an AGC circuit, shown in Fig. 2-3, is a mathematical tool that is derived from Fig. 2-2 as follows. First, the feedback loop of the AGC circuit operates only on signal amplitude; hence the AGC input and output signals are represented only in terms of their. 14.

(30) amplitudes Ai, and Ao respectively. Second, since the VGA multiplies the input amplitude Ai, by G(Vctr) as shown in equation (2.1), an equivalent representation is Ao = K exp [ln [G(Vctr)] + ln [Ai/ K]]. (2.2). Where K is a constant with the same units as Ai and Ao. The AGC model in Fig. 2-3 uses equation (2.2), but duplicates the K exp( ) function inside and outside the outlined block so that x(t) and y(t) represent the input and output amplitudes of the AGC, expressed in decibels within a constant of proportionality. Similarly, the z input shown, is the value of Vref. expressed in decibels within a constant of proportionality. The peak detector in Fig. 2-2 will be assumed to extract the peak amplitude of Vo(t) linearly and much faster than the basic operation of the loop so that Vp = Ao. Hence, the peak detector is not explicitly shown in Fig. 2-3. Finally, the loop filter in Fig. 2-2 is shown as an integrator in Fig. 2-3, with H(s) = gm / sC.. Vin. Vout G(Vctr). Vctr. +. LOOP Filter. -. Envel. Det.. +. Vref.. Fig. 2-2 Block diagram of the AGC.. 15.

(31) Fig. 2-3 Equivalent model for the AGC circuit. To derive a formula for the settling time of the AGC, assuming that the AGC loop is operating near its fully converged state (i.e., Ao = Vref.), we can proceed as the following: The output y(t) in Fig. 2-3 is given by y(t) = x(t) + ln (G(Vctr)). (2.3). The gain control voltage is derived as C dVctr/dt = gm [ K exp(z) – K exp(y)]. 16. (2.4).

(32) Taking the derivative of (2.3) and substituting in the derivative of (2.4), the following expression is obtained: dy/dt = dx/dt + 1/G(Vctr) dG/dVctr gm/C K[exp(z) – exp(y)] (2.5) Let 1/G(Vctr) dG/dVctr gm/C = Kx Using the Taylor series expansion, we get exp(y) = exp(z) [1+y(t) – z +…] Equation (2.5) can be written as dy/dt + Kx Vref y(t) = dx/dt + Kx Vref ln(Vref/K). (2.6). The first order linear system described by (2.6) has a high pass response with a time constant of τ = 1/(Kx Vref) = [1 / G(Vctr) dG/dVctr gm/C Vref.]. -1. (2.7). If the loop filter components gm and C are linear and time invariant, then the constraint on constant settling time for the AGC loop is that the VGA has an exponential gain control characteristics. Under these conditions, the AGC loop has a time constant given by τ = C/ (gm Kx1 Vref). (2.8). Where Kx1 is constant, and equals Kx1 =1/ G(Vctr) dG/dVctr. (2.9). Integrating both sides of the above equation, produces the exponential gain characteristics of the VGA. 17.

(33) G(Vctr)= Kx2 exp(Kx1 Vctr). (2.10). Where Kx2 is the constant of integration. Notice that the settling time is a function of the input variable Vref, indicating the system is fundamentally nonlinear. By changing Vref, the operating point where the small signal approximation was made changes, and hence the AGC loop parameters change. In our AGC circuit design, we have the following relations and parameters: G(Vctr) = 35.2 Vctr – 13.6 G(2V) = 56 Vref = 0.5V C = 2pF To have a settling time less than 16µs according to 802.11a standard, then gm should be larger than 0.4µA/V according to equation (2.7).. 2.3 AGC Architecture Figure 2-4 shows the block diagram of the proposed AGC inside the target receiver. The AGC circuit is composed of four variable gain amplifiers, peak detector, loop filter, low pass filter, and dc offset cancellation circuits. The baseband I and Q signals at the mixers output are 18.

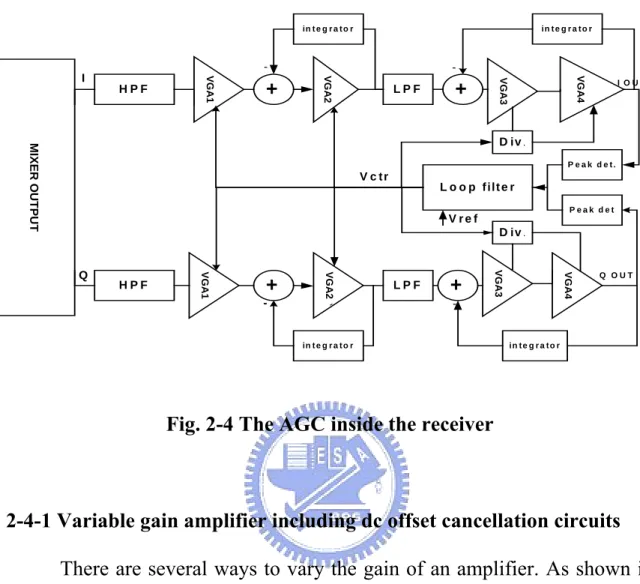

(34) amplified by high pass amplifiers. Four stages of VGAs are incorporated throughout the baseband signal path to provide both high gain and dc offset cancellation. The gain of the VGAs is controlled by a feedback gain control signal (Vctr.). The peak detector extracts the signal amplitude. This signal will pass to the loop filter to be compared with a reference voltage. The loop filter will then generate a dc-like VGA control signal, Vctr. A sixth order low pass filter is integrated between the first two and the last two VGAs for channel selection and to reject any continuous wave or modulated interferers. The fully differential circuit architecture is employed in the circuit to ensure that it has better common mode noise rejection.. 2-4 Principles of Operation In this section, the principle and circuit design of the main blocks of the AGC, namely VGA, peak detector, loop filter, and low pass filter will be presented.. 19.

(35) in t e g r a t o r. in t e g r a t o r. -. VGA4. LPF. VGA3. +. VGA2. HPF. VGA1. I. +. I OUT. MIXER OUTPUT. D iv . P e a k d e t.. V c tr. L o o p f ilt e r Peak det. V re f D iv .. +. VGA4. -. LPF. VGA3. +. VGA2. HPF. VGA1. Q. -. in t e g r a t o r. Q OUT. in t e g r a t o r. Fig. 2-4 The AGC inside the receiver. 2-4-1 Variable gain amplifier including dc offset cancellation circuits There are several ways to vary the gain of an amplifier. As shown in Fig. 2.5, the gain of a simple differential amplifier can be controlled by its bias or loading. By tuning the loading RL1 and RL2, the gain at low frequencies is varied, but its common mode output voltage is also changed and affects the bias for the next stage. Alternatively, the gain can be varied by tuning the bias Ib [15]. However, when the signal is large, the bias should be set to a smaller value to get a smaller gain, in this case, the dynamic range of the input devices is also reduced. This is opposite to the requirement of a. 20.

(36) VGA [16]. In addition, the common-mode output also depends on the gain, and this technique also entails a lot of power dissipation to obtain gain variation [17].. Fig. 2.5 Existing gain varying techniques High input-referred offset voltage is one of the most important drawbacks of MOS analog circuits when compared to their BJT and BiCMOS counterparts. Typically the offset voltage can be as high as 20 mV, which can easily saturate the amplifier output stage when the DC gain is high enough. This problem is even worse in low-supply applications. Traditional offset cancellation techniques [18][19] usually utilize sampling circuit and memory components to sample, store and cancel the offset voltage. As shown in Fig. 2.6, the offset voltage is sensed and stored in a capacitor during the calibration period, and feeding it back to signal after the calibration. The main problem with these methods is that they require a 21.

(37) clock signal and a calibration period. A clock signal would cause problems with clock feedthrough and charge injection, which makes cancellation inaccurate. A calibration period would reduce the overall speed and prevent the amplifier to operate continuously.. Fig. 2.6 Existing offset cancellation [18] To achieve automatic offset cancellation, some techniques [20][21] also use some logic circuits to control the amplifier and the tuning circuitry. However the controlling and tuning circuitry will introduce large noise, consume more power and occupy more chip area. They still have the problems of clock feedthrough and charge injection and cannot operate continuously. In this design, and as shown in Fig. 2.4, the first baseband block, the VGA, allows adjusting receiver gain to limit the output signal level. In the baseband receive path of this design, there are four cascaded variable gain amplifiers, one high pass filter, and two autozeroing loops (op-based integrator). One high pass filter and two autozeroing loops are used to. 22.

(38) eliminate the dc offset introduced by VGAs and the previous stages. Two autozeroing loops and one high pass filter are utilized instead of one autozeroing loop since the cutoff frequency of the autozeroing loop is proportional to the gain of the variable gain amplifier. The high pass filter is placed in the former stage since it has better noise performance than the autozeroing loop, while autozeroing loops are placed at the latter stages to reduce the phase introduced by the VGAs. The proposed AGC is realized with 4 identical VGA cells, as shown in Fig. 2.4. The gain of each cell can be varied independently from 0 dB to 16 dB by adjusting its own control voltage Vctr.. To achieve a minimum NF, the gain of the first two stages should be as high as possible [22]. In other words, when the signal is large, the gain of the third and fourth stages should be reduced before the gain of first two stages is reduced. However, for large input signals, the noise requirement of the VGA is actually relaxed. The schematic of the VGA is shown in Fig. 2-7. In this circuit the input stage is a degenerated differential pair realized by means of MOS devices [23], biased in the linear region, shunting fixed value resistors. The input stage transconductance and therefore the amplifier gain is varied by varying the MOS resistance via Vctr. To maximize the gain, the resistive load (R1, and R2) is differential while two PMOS devices (M1 and M2) provide. 23.

(39) current to the input stage. This configuration requires common mode feedback (M7, M8, M9, and the current source), but has the advantage of lower dc voltage drop. The flicker noise of the PMOS current sources has a negligible impact on the noise figure. To lower out of band blockers, a differential resistive-capacitive load (C1, C2, R1, and R2) is used to realize 20MHz pole to lower out of band blockers. Moreover, the input devices (M3, M4) have larger area to reduce the flicker noise. So, this VGA circuit design meets best the receivers, which require low noise, large gain for a small input signal and large continuous gain turning range. By turning its control voltage (Vctr.), its transconductance can be varied and hence its gain. By varying the Vctr from 0V to 2V, the gain of the VGA sweeps from minimum to maximum. V D D. V D D. M 1. M 2. R 1. R 2. V O -. M 7. V O + C 1. V I+. M 9. C 2. M 3. M 4. R 4. V I-. R 3. M 5. M 6. V c tr . IR E F. Fig. 2-7 The utilized variable gain amplifier. 24. M 8. V r.

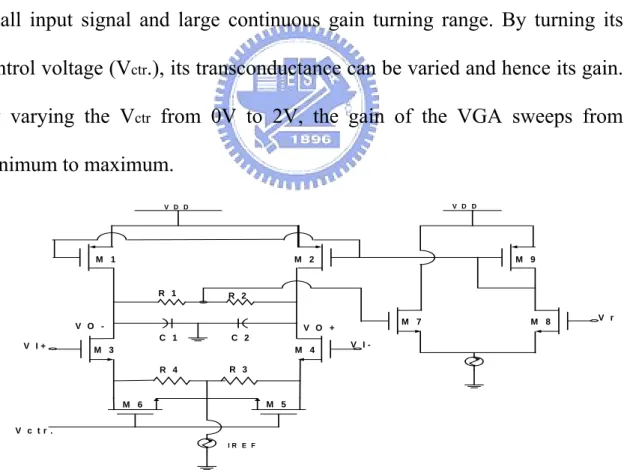

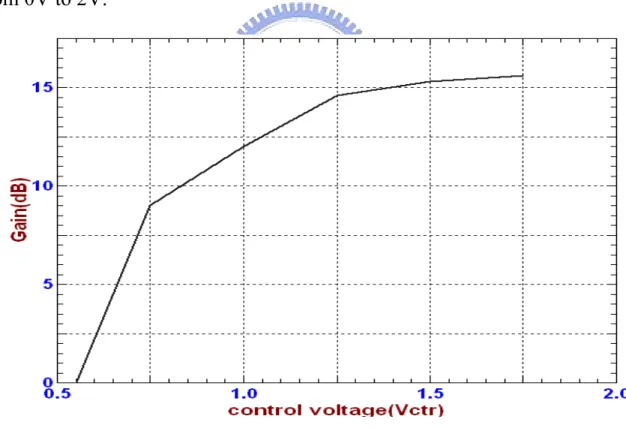

(40) The variation of the VGA gain with the control voltage is shown in Fig.2-8. It is clear that the relation is linear only for small portion of Vctr. Since the receive path contains four VGAs, they can be tailored to better approximate a linear-in-dB characteristic. It can be done using two control voltages. One (Vctr.) is connected to the first two VGAs and the other one (0.4Vctr.) to the rest two VGAs. This will make the control curve more linear and achieve a smaller gain turning sensitivity. In this design, the gain of the cascaded four VGAs will change from –10dB to 56dB when Vctr changes from 0V to 2V.. Fig. 2-8 Gain variation of the VGA versus frequency. 25.

(41) Since the AGC consists of a cascade of 4 identical VGA stages. Each two stages have an independent gain control. Different gain distributions give different NF and IIP3 of the whole AGC. Assume A1, A2, A3, A4 are gain of first, second, third, fourth stage. F1, F2, F3, F4 are noise factors. AIP31, AIP32, AIP33, AIP34 are input referred interception points. The noise factor of the whole AGC, F, is then: F= F1 + (F2-1)/(A21) + F3-1/(A21A22) + F4-1/ (A21A22A23). (2.11). And the IIP3 of the AGC is: 1/A2IP3 = 1/A2IP31 + A21/A2IP32 + A21A22/A2IP33 + A21A22A23/A2IP34 (2.12) When all stages are set to maximum gain, the noise figure of the whole AGC is minimized, however the IP3 is degraded to minimum value as well. For a large input signal, the total gain of the AGC will be decreased to a smaller value. Since the signal power is large, the noise contribution from the AGC is not important any more, the gain of all stages can decrease at the same time. The IIP3 of the whole amplifier can also be improved when the gain in the first and second stage decreases. The variable gain amplifier (VGA) is used to amplify the signal further and reduce the signal dynamic range. For the sensitivity of -82dBm, the dynamic range of the wanted signal is -10dBm - (-82dBm) = 72dB.. 26.

(42) Because of gain in previous stages, the NF requirement of the VGA is relaxed. Assume F>>1, NFvga≈NFsys + Gainlna + Gainmix + Gainfilter - 3 In this proposed receiver, we have: NFsys: noise figure of the system (required by 802.11a standard) = 10dB Gainlna: gain of the LNA = 19dB Gainmix: gain of the mixer = 0dB Gainfilter: gain of the filter = 7dB = 10 + 19 + 0 + 7 -3 = 33 dB. The IIP3 requirement of the VGA is also more relaxed because the interference signals are suppressed by the low pass filter. Because the gain of the VGA is varying, the IIP3 of the VGA is varying too. Therefore, the linearity of the VGA is defined in output-referred IP3 (OIP3). 2.4-2 Peak detector In the feedback loop, we should use a peak detector to monitor the strength of the signal. The structure of the differential peak detector is shown in Fig.2-9. The ideal diode can be constructed using the unidirectional current mirror [24].. 27.

(43) VDD. M1. M2. M3. VI+. M9. M5. M4. M6. c. M8. VI -. Ven. M10. M7. M11. M12. Ie. Ibias. Ibias. Fig. 2-9 Structure of the differential peak detector Transistors, M1, M2, M9, M10 combined with the current mirror M3, and M4 can be represented by a transconductance amplifier, as shown in Fig. 2-10. When Vi+ is smaller than Venv., drain currents of M9, and M10 are unbalanced, such that a current pulse is generated at drain of M3. This current pulse discharges node Venv. through current mirror M3, and M4, forcing Vi+ to track Venv. As Venv approaches Vi+, drain currents of M1, and M2 are almost equal, so drain current of M3 is approximately zero. As a result, tracking behavior of the peak detector can be increased by increasing gm/C.. 28.

(44) VDD. -. Vi+. gm^v. +. Ven.. c. Ie. Fig. 2-10 Equivalent circuit of the peak detector.. 2.4.3 Loop filter The gain of the VGA block is controlled by the control voltage, Vctr, which is generated by the loop filter. The loop filter is composed of a two inputs transconductance cell (gm-cell), and a loading capacitor, C as shown in Fig. 2-11. The output of the I and Q peak detectors are summed together and applied to the input of the loop filter. The sum of these two input signals will be compared with a reference voltage value, Vref, to generate Vctr. Table I shows the component values and channel dimensions of the MOS devices of all the circuits building the AGC.. 29.

(45) Peak detector. + gm. Reference volt.. + -. Vctr C. Fig. 2-11 Structure of the loop filter. Variable Gain Amplifier. Envelope Detector. Device M1, M2 M3,M4 M5,M6,M9 M7 M8 C1,C2 R1,R2 R3,R4 M1,M2,M3,M6,M7,M8 M4,M5 M9,M10,M11,M12 C. Value 15µm/0.18µm 80µm/0.18µm 5µm/0.18µm 4µm/0.18µm 10µm/0.18µm 1pF 2.9K 6.9K 10µm/0.18µm 11.5µm/0.18µm 15µm/0.18µm 2pF. Table I Component values and channel dimensions of MOS devices of the AGC.. 30.

(46) 2.4.4 Low pass filter The design of full CMOS continuous-time filters can be realized with MOSFET-C or OTA-C techniques. However to achieve low power supply voltage and to achieve at the same time low-distortion specifications, the OTA-C technique is preferred. Even preferred, such filters introduce two problems. First of all, the OTA is not very linear. Its third-order harmonic distortion is given by: HD3= (Vp)2/(32(Vgs-Vt)2). (2.13). Where Vp is the maximal input amplitude, peak. It follows that a Vgs–Vt of 0.5V gives an HD3 of 0.125% when Vp is 100 mVp. Another source of nonlinearity in the filter is the presence of junction capacitors. Its effect depends on how much of the total capacitance is made out of junction capacitance. It is calculated in [25] that the HD3 is in the order of –60 dB or 0.1% when half the integrating capacitance consists of junction capacitance. The required integrated low pass filter should satisfy the following technical specifications: - Simulated LC ladder, resistive terminations - Passband frequency from zero to 10MHz. - Passband ripple should be less than 0.5dB.. 31.

(47) - Stopband frequency should be larger than 20MHz. - Stopband attenuation larger than 23dB. With reference to filter tables [26], a third order elliptic filter function will satisfy the requirements. The transfer function is found to be H(s)= 0.28163(s2+3.2236)/((s+0.7732)(s2+.4916s +1.1742)) (2.14) H(s) can be realized as a resistively terminated LC ladder. The circuit with normalized elements is shown in Fig. 2-12. Leaving the impedance level open for now but rescaling the components for the required frequency, Wp = 2π(10M) rad/s, results in Rs = RL =1. C1v = C3v = 1.293/(2π(10M)) µs = 20.58 ns. C2v = 5.89 ns. Lv = 13.32 ns. The complete ladder simulation is given in Fig. 2-13. If we choose gm = 200 µs and for convenience makes 1/gm equals the normalizing resistor, the required elements become 1/Rs = 1/RL = 200 µs C1 = C3 = C1v gm = 4.11pF C2 = C2v gm = 1.18 pF CL = Lv gm = 2.66 pF. 32.

(48) Considering that these capacitors are small and that three of them will further be divided by 2 as shown in Fig. 2-13, we should take into consideration the effect of the unavoidable parasitic input and output capacitors of the transconductance elements. From the circuit diagram of Fig. 2-13, we can see that 2(Ci+Co) appear in parallel with 0.5CL, and 0.5C3, and that 2Ci+3Co shunts 0.5C1. It can be noticed that all parasitic capacitors can be taken care of by absorption without increasing the degree of the transfer function. The values of these parasitics depend on the details of the transconductance design. A suitable differential input-differential output device is given in [27], where Ci and Co values of 0.42pF and 0.22pF, respectively are claimed. Using these values, the final capacitors for the design are computed as follows: 0.5C1 = 0.55pF C2 = 1.18pF 0.5 C3 = 0.78pF. 0.5 CL = 0.05pF.. L Rs = 1 Vi C1. Vo C2 C3. RL = 1. Fig. 2-12 Required elliptic low pass ladder. 33. C1= 1.29 C2=.37 C3=1.29 L = .837.

(49) - + + -. + -. +. .5CL. .5C1. -. +. -. +. +. -+. +-. +-. -+. Vo+. +. + -. -. Vi-. + -. -. Vi+. .5C3. C2. Vo-. -. C2. Fig. 2-13 Third-order Gm-C low pass filter. To increase the stop band attenuation of the needed filter to about 46dB, two third-order Gm-C filters were cascaded. A full CMOS low-distortion OTA structure, which has inherently common-mode feedforward (CMFF) is shown in Fig. 2-14. Fig. 2-14 Fully differential OTA with inherent CMF. 34.

(50) 2.5 Simulation Results The variation of the gain of the four-cascaded VGAs versus the control voltage is shown in Fig. 2-15. The relation is almost linear. The gain changes from –10dB to 56dB as the control voltage changes from 0V to 2V. To reject dc offsets which would result from self-mixing of the mixers or receiver baseband mismatches, and result in clipping of the subsequent stages if not properly removed, some form of a high pass filter would have to be used. In this design, there are four variable gain amplifiers distributed in the receive path. The poles of these high pass amplifiers cannot be too low, as they would result in long transient settling during gain changes. On the other hand, poles cannot be placed too high since this will attenuate the lowest OFDM subcarriers (located at 312KHz) and thus system performance through degrading its signal-to-noise ratio. In this design, the poles are placed at 106KHz. For OFDM modulated signals; which has 52 subcarriers; the lowest subcarriers are located at ±312KHz, and the highest subcarriers are at ±8.125MHz, so none of the subcarriers are attenuated by the filter in the receive chain. The frequency response of the four VGAs that comply with the above requirements is shown in Fig.2-16. The bandwidth of the VGA is slightly above 20MHz, to compensate for the parasitic capacitor of the high pass filter which will in turn decreases the bandwidth. 35.

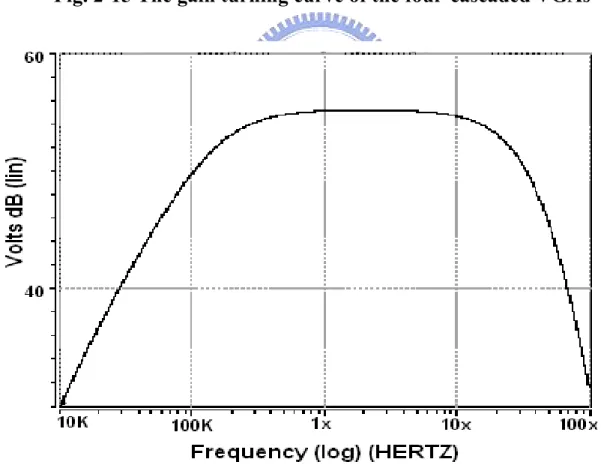

(51) Fig. 2-15 The gain turning curve of the four-cascaded VGAs. Fig. 2-16 Frequency response of the four-cascaded VGAs.. 36.

(52) Variation of the cascaded four VGAs gain and THD with input power is shown in Fig. 2-17. The gain reaches the maximum when the input signal is around –60dBm. If the required THD must be larger than 15dBc, then the dynamic range of the AGC is 43dB. The main advantage of the utilized AGC is that it offers continuous control of the received signal rather than discrete one. The noise figure of the AGC circuit was measured to be 7dB,which means that the increase of the receiver’s noise figure due to AGC will be acceptable.. Figure. 2-17 Variation of the cascaded VGAs gain and THD with input power.. 37.

(53) The waveforms at the outputs of the I, and Q peak detectors are shown in Fig. 2-18. The Figure shows also the summation of these waveforms that will be applied to the input of the loop filter.. Figure. 2-18. I and Q peak detector outputs and their summation. 38.

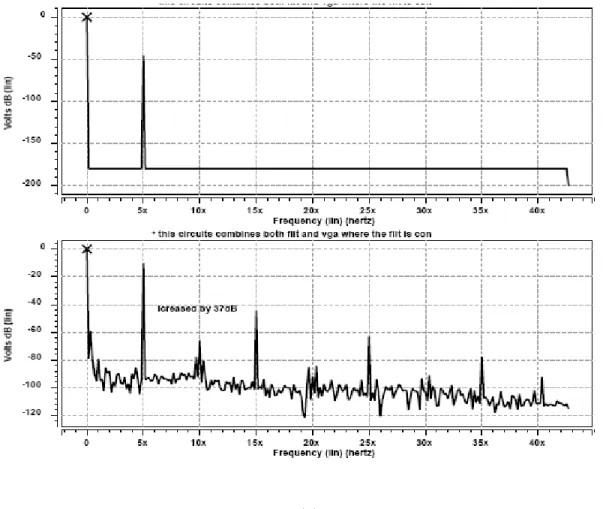

(54) To measure the stop band loss of the VGA and LPF, two tones were inserted at the VGA input; one with frequency of 5MHz, and the other with 25 MHz, as shown in Fig.2-19. The 5MHz tone was amplified by 37 dB, while the 25MHz one was attenuated by 17 dB. So the stop band loss is 54 dB. The frequency response of the elliptic sixth-order low pass filter is shown in Fig.2-20. Its cutoff frequency is 10MHz. Table II summarizes the simulation results of the AGC and low pass filter.. (a). 39.

(55) (b) Figure. 2-19 (a) Amplification of a 5MHz tone. (b) Attenuation of a 25MHz tone.. 40.

(56) Figure. 2-20 Frequency response of the LPF Fig. 2.21 shows the gain of the VGA as a function of offset voltage. An input signal of -60dBm at 5 MHz is applied to the VGA input together with a DC offset voltage. As the offset voltage varies around the zero, the gain of the VGA also varies. Without offset cancellation, the gain is very sensitive to the input offset voltage. Even an offset voltage as small as 0.5 mV at the input will be amplified by the VGA to more than 0.5 V, and the operation point of the VGA will be shifted far away from the optimum value, which results in a significant drop of the gain. However, with offset cancellation, the offset voltage at input is not amplified and has little effect on the operation point, and as a result, the gain of the VGA is quite insensitive to the input offset voltage.. 41.

(57) Fig. 2.21 VGA gain variation due to offset voltage (a) With offset cancellation (b) Without offset cancellation. Performance. Hspice simulation results. AGC passband range AGC voltage gain AGC noise figure AGC dynamic range LPF cutoff frequency LPF power consumption LPF harmonic distortion AGC Power consumption. 106KHz~20MHz -10~56dB 7dB 60dB 10MHz 14mW 40dB 11 m W. Table II Simulated AGC & LPF performance 42.

(58) Chapter 3 THE DESIGN OF THE 5GHz DIRECT CONVERSION RECEIVER 3.1 Receiver Fundamentals In this section, some fundamental issues concerning direct conversion receivers front-ends are discussed, e.g. sensitivity, nonlinearity, noise figure, and phase noise. Wireless products, e.g. mobile phones, pagers, wireless local-areanetwork (LAN) etc., usually consist of several basic blocks including transceiver front-ends and base-band back-ends. A transceiver front-end is a combination of a receiver front-end and a transmitter front-end. A receiver front-end converts a received radio frequency (RF) signal from an antenna into a baseband signal and a transmitter front-end converts a baseband signal into an RF signal and sends it to an antenna. In the receiver, the conversion is done by a few of frequency domain operations including downconversion, filtering and amplification. The frequency domain operation is realized in physical building blocks including LNA, mixers, and synthesizer. Those building blocks are not perfect. Besides the wanted frequency domain operation, unwanted operations are also performed. Those unwanted 43.

(59) operations include adding noise to the signal and distorting the signal. Therefore the performance of a receiver is limited. The performance of a receiver is defined as the output signal-tounwanted-signal ratio (SUSR). This ratio is taken at its output, before demodulation and after analog-to-digital (A/D) conversion.. 3.1.1 Sensitivity The sensitivity is a measure of receiver performance. Although the performance of a wireless communication system is often specified in terms of the bit error rate (BER), the frame error rate (FER) and the residual bit error rate (RBER), those specifications are very impractical for the receiver front-end design. As a receiver front-end can only be evaluated by adding unwanted signals, such as noise, image signals and intermodulation signals, to the wanted signal, the performance can therefore be translated into the specification of signal-to-unwanted-signal ratio (SUSR), which can also be called as signal-to-noise ratio (SNR), if all unwanted signals are treated as kinds of noise. An approximate value for this SUSR can be found by means of BER simulations. For the 802.11a WLAN system, the required SUSR is 10dB. The sensitivity of a receiver is defined as the minimum signal power at the input of the receiver when a minimum SUSR of 10dB is achieved at. 44.

(60) the output of the receiver. In the proposed application, a sensitivity of – 82dBm at a data rate of 6Mb/s, and a sensitivity of –65dBm at 54Mb/s is required.. 3.1.2 Linearity Many RF and analog circuits can be approximated with a linear model to obtain their response to small signals. Nonlinearity often leads to interesting and important phenomena. For simplicity, a nonlinear system can be modeled as follows: y(t) ≈ α1 x(t) + α2 x2(t) + α3 x3(t). (3.1). Higher orders are assumed to have much smaller gain and are therefore ignored. Nonlinearity of analog circuits will cause problems of harmonics, gain compression, desensitization, intermodulation, etc. [28]. Intermodulation is commonly used as a measure of linearity of a circuit. Two-tone test is usually used to measure the intermodulation of a circuit. As shown in Fig. 3.1, the amplitude of the input signal is swept from small power to large power. The output signals are measured at both the fundamental frequency, ω1 or ω2, and the IM3 frequency, 2ω1 - ω2 or 2ω2 - ω1. Two curves can be plotted in log-scale based on the measured amplitude of both fundamental. 45.

(61) and IM3 components. There is an intersection point if the two lines are extrapolated. This point is called third interception point (IP3). Input referred IP3 (IIP3) is often used to specify the linearity of a system.. Fig. 3.1 Two-tone test of a nonlinear system In a system with cascading of several stages, the IIP3 of the system, A2 IP3, can be expressed as:. Where A2 IP3,I is the IIP3 of ith stage and α21, β21,... are gain of each stage.. 3.1.3 Noise figure RF circuits always suffer from a noise problem. Noise can be defined as random interference unrelated to the desired signal. It is a kind of unwanted signal. But unlike harmonics and intermodulation, it is not a deterministic signal. For RF circuits built on CMOS technology, there are a. 46.

(62) few types of noise, e.g. thermal noise, shot noise, flicker noise need to be considered. In analog circuit design, signal-to-noise ratio (SNR) and noise figure (NF) are commonly used to specify the noise performance of a system. SNR is defined as a ratio of signal power over noise power. NF is defined as a ratio of SNR at the input of a system over SNR at the output of the system, i.e. SNR=Psignal/Pnoise, NF=SNRin/SNRout Assume a system, matched to 50-Ω impedance, has power gain of A2, and internal input referred noise of Po and it is connected to a source with source noise of Pn,s. Then the NF is: NF=SNRin/SNRout = (Ps,in/Pn,s) / (Ps,out/Pn,out) =(Ps,in/Pn,s) / [Ps,in* A2/(Pn,s *A2 + Po *A2] =1 + Po/Pn,s. (3.3). The source noise, Pn,s, is referred to the thermal noise from a 50Ω resistor, i.e. V2n,s=4kTRs∆f, where k is Boltzmann’s constant (1.38*10-23 JK-1), T is the temperature in Kelvins, and Rs is the source resistance (50 Ω), and ∆f is the bandwidth of interest. At room temperature, T=300oK, a 50 Ω resistor has a noise power of: Pn,s/ ∆f = 10*log10(kT/1mW) = 10*log10(1.38*10-23*300/0.001) = -174dBm/ Hz.. 47.

(63) Or in a bandwidth of 200kHz, Pn,s= 10*log10(kT*∆f/1mW) = 10*log10(1.38*10-23*300*200*103/0.001) = -121dBm. In a system with a few stages in cascade, the overall noise figure equals to: NF=NF1 + (NF2-1)/A2 1+(NF3-1)/(A2 1A2 2)+(NF4-1)/(A2 1A2 2A2 3) +... (3.4) Where NFi is the NF of ith stage and A2 i is the gain of ith stage. From Eq. (3.4), an important observation can be made. NF of the first stage is directly added to the NF of the whole system. The NF of each of other stages is scaled down by the total gain of stages in front of it when referred to the overall NF. Therefore, to achieve a smaller NF of the whole system, NF1 should be as small as possible. At the same time, the gain of this stage, A21, should be as high as possible so that noise contribution from following stages can be reduced.. 3.1.4 Phase noise of LO signal In practice, the local oscillator (LO) signal is not a pure sinusoid signal. It consists of some noise at frequencies close to ωLO. This is called phase noise. The phase noise (PN) of the LO signal is defined as the ratio between the noise power in 1-Hz bandwidth at a certain offset, ∆f, and the carrier power, as shown in Fig. 3.2:. 48.

(64) Fig. 3.2 Phase noise of LO signal PN=10log10[(noise power in 1-Hz bandwidth)/(Carrier power)]. (3.5). Because of the phase noise, the interference close to the RF frequency will generate some noise located in the signal frequency band, as shown in Fig. 3.3. Assume the signal has a bandwidth of BW and the power is Ps, and there is an interference at ∆f with a power of Pi. If the conversion gain is one, after downconversion, the interference has a similar spectrum as LO signal. The power of the noise that located within the signal bandwidth is: Pn_dB=Pi_dB + PN + 10log10(BW). (3.6). And SUSR=Ps_dB - Pn_dB =Ps_dB - Pi_dB - PN - 10log10(BW). To achieve enough SUSR, the PN of the LO signal should be as large as possible, and the minimum requirement is: PN= Ps_dB - Pi_dB -10log10(BW) - SUSR.. 49. (3.7).

(65) Fig. 3.3 SNR degradation due to phase noise of the LO signal. 3.2. Design. Consideration. and. Performance. Requirements for a 5-GHz WLAN Receiver There are presently three silicon IC technologies suitable for realizing circuits in the 5GHz frequency range. Silicon, and silicon-germanium (SiGe), bipolar devices currently provide the highest performance and enjoy the customary advantage of a high gm/I ratio, in addition to process refinements specifically intended to enhance analog and RF performance. These latter improvements often include special resistor and capacitor operations that posses some combination of tighter tolerance, reduced parasitics, and higher Q. A significant less expensive technology that is used here is the conventional digital CMOS. Although its inferior gm/I ratio makes CMOS circuit performance more sensitive to wiring parasitics at a given level of. 50.

(66) power consumption than for bipolar technologies, the superior linearity of short channel MOS transistors typically confers a somewhat higher dynamic range per power than that of bipolars, and this quality is often extremely important for wireless systems. Another noteworthy factor is the large number of interconnect layers now commonly available in CMOS logic processes. For RF applications, these additional layers are indispensable for fabrication inductors and linear capacitors of high quality. Performance requirements for the RF signal processing blocks are quite similar for both the HiperLAN2 and 802.11a standards. This commonality should not be surprising in view of the similar frequency bands, data rates, and intended deployment scenarios. Consequently, it is possible for a single receiver design to comply with both sets of specifications. To determine the precise target values, we first compute the specifications for both HiperLAN and 802.11a separately, and select the more stringent of the two in every case. Here we reduce the specification set to frequency range, noise figure, maximum input signal level (or inputreferred 1-dB compression point), and limits on spurious emissions. For the frequency range, it is often acceptable to cover only the lower 200MHz band. The upper 100MHz domain is not contiguous with that allocation, so its coverage would complicate somewhat the design of the. 51.

(67) voltage controlled oscillator. Furthermore, that upper 100MHz spectrum is not universally available. Hence the choice here is to span 5.15-5.35GHz. The worst-case noise figure requirement for HiperLAN is not directly specified, but may be readily estimated from the fact that a class C receiver must exhibit a –70dBm sensitivity over a channel bandwidth of 24MHz. Assuming conservatively that the predetection SNR must exceed 12dB, the overall receiver noise figure must be better than: NF= -144 dBm/Hz-12dB- (-174dBm/Hz) = 18dB Where –174dBm/Hz is the available noise power of the source. Strictly speaking, the required noise figure for HiperLAN2 and 802.11a receivers is a function of data rate. Since it would be cumbersome to specify individual noise figures for each possible data rate, the specification for 802.11a instead simply recommends a noise figure of 10dB, with a 5dB implementation margin, to accommodate the worst-case situation. As this target is more demanding than that of the HiperLAN2, a 10dB maximum noise figure is the design goal for the present work. As stated previously, HiperLAN specifies –25dBm as the maximum input signal that a receiver must accommodate, whereas 802.11a specifies a value of –30dBm. Consequently, -25dBm is the target maximum input level. Converting these specifications into a precise IIP3 target or 1-dB. 52.

(68) compression requirement is nontrivial. However, as a conservative rule of thumb, the 1-dB compression point of the receiver should be about 4dBm above the maximum input signal power level that must be tolerated successfully. Based on this approximation, we target a worst-case inputreferred 1-dB compression point of –21dBm. Finally, the spurious emissions generated by the receiver must not exceed –57dBm for frequencies below 1GHz, and –47dBm for higher frequencies, in order to comply with FCC regulations. The choice of the direct conversion architecture results in a host of challenges that need to be dealt with in the architectural implementation and/or in the circuit design of the blocks. Such issues include: • DC offsets which result from self-mixing of the receive mixer as well as dc offsets which result from baseband block mismatches and the high gain of the baseband stages will result in clipping of the subsequent stages if not properly rejected [29]. • Flicker noise on the receive path can impair the SNR of the lowest index OFDM subcarriers [30]. The effect of flicker noise can be reduced by a combination of techniques. As the stages following the mixer operate at relatively low frequencies, they can incorporate very large devices to minimize the magnitude of the flicker noise. Moreover, periodic offset. 53.

(69) cancellation also suppresses low-frequency noise components through correlated sampling. • The receive baseband path can have potential oscillation problems due to the fact that most of the receive path gain is implemented at a single frequency (baseband). The CMOS RF receiver circuits include low noise amplifier, down conversion mixers, voltage controlled oscillator, low pass filter, and automatic gain control circuit. Such circuits will be described in the following sections.. 3.3 Low Noise Amplifier The first block in most wireless receivers is the low-noise amplifier (LNA). Since it is the first block, the weak signal from the antenna is applied to the LNA directly. Therefore, the LNA is required to provide a high gain, otherwise the noise of subsequent stages, such as the mixer and the low pass filter, will decrease the SNR at the receiver output. However, if the gain of the LNA is too high, the linearity requirement of the following stages will be too high. Because the noise from LNA is added to the weak signal directly without any reduction of previous gain stage, the noise figure of the LNA itself must be minimized.. 54.

(70) So the LNA is responsible for providing signal amplification while not degrading signal-to-noise ratio, and its figure sets a lower bound on the noise figure of the whole system. Of primary interest is insight into designing LNA with low noise figure, good amplification level to the input signal, and low power dissipation [31]. The schematic of the LNA is shown in Fig. 3-4. It is a differential common-source amplifier. The gate and source spiral inductors L (9nH) and Ls (2.3nH) are used with the 2pf capacitor C2 to achieve 50-Ω input impedance matching. The input transistor M1 is biased at 4 mA to attain an acceptable level of noise and gain performances. Lower power consumption could be attained at the expense of higher noise. Cascode transistor M2 enhances the amplifier reverse isolation parameter (S12), and reduces the LO leakage from the mixer back to the LNA input. The capacitor C at the output blocks the second-order intermodulation products generated in the LNA [32]. This capacitor forms with inductor L1 a network that is necessary for optimal power transfer to the next stages. The common mode rejection ratio of the LNA is 40 dB. The input impedance of the LNA must be matched to 50 Ω, so that the signal from the antenna won’t be reflected and a maximum power transfer from antenna to LNA can be obtained. There are several topologies, which. 55.

(71) could be used in the input matching of a LNA [33], 50-Ω resistor matching, 1/gm matching, and inductive degeneration matching. Inductive source degeneration, as shown in Fig. 3.5, can achieve a better noise figure. LB =2 nH. L1. L1. VDD. C. VO M2. M4. C. L. L. VI +. M1. M3. C2. VI -. C2 Ls. Ls. L B=2. nH. Fig. 3-4 LNA schematic. Fig. 3.5 Inductive degeneration used as input matching. The input impedance looking into the matching network, Zin is: 56.

(72) Where Rg and Rl represent the series resistance of the on-chip inductor L and Ls, C1 is the parallel combination of C2 and Cgs. The resonant frequency is. At resonant frequency, the impedance becomes a pure resistor, Zin(ωo) = ωT Ls + Rg + R l. (3.10). The input-matching network works like a gain stage with the gain depending on the value of the capacitor C1. The smaller the capacitor gets, the larger the voltage Vgs is, and therefore, the larger the gain becomes. To reduce the noise contribution from the following stages including the input devices of the LNA, C1 is to be minimized. However, to reduce the C1 (assuming C2 is constant) the input transistors have to be small in size which results in small gm and in turn degradation in the gain and noise performance of the whole LNA. In addition, to keep the same resonant frequency, larger inductors, (L + Ls), have to be used for the small C1, which have larger resistive loss, lower Q and larger noise contribution. Consequently, careful. 57.

(73) tradeoffs have to be made between the transistor size and the inductors to optimize the overall noise performance. In this design, the gate inductor L is set to 9nH, and source inductor is set to 2.3nH, and the Q of inductors is around 7. The size of input devices are W/L=70µ/0.18µ . For noise analysis, the noise equivalent circuit of the LNA is shown in Fig. 3.6. Rs and vs2 are the source resistance and thermal noise from source resistance. vg2 and vl2 are the thermal noise due to loss in the gate inductor and the source inductor in the matching network. iRp2 is the thermal noise due to the loss in the output inductor. i d12, i d22, i d32 and i d42 are the thermal noise from transistors M1, M2, M3 and M4.. Fig. 3. 6 Equivalent circuit of LNA with noise sources. 58.

(74) The transconductance of the input stage of the LNA including the matching network is:. At the resonant frequency, the imaginary part vanishes and the real part equals 2Rs.Therefore Eq. (3.11) can be revised as:. The noise factor of the LNA [33] is:. From equation Eq. (3.12), the equivalent Gm of the LNA is independent from the gm of the input device, as long as the unit gain frequency, ωT, of the device is fixed. From equation Eq. (3.13), the output noise due the source noise is also independent from the gm of the input devices for a fixed unit-gain frequency, ωT. Therefore, the best method to improve the noise performance of the LNA is to increase the unit-gain frequency, ωT, of the input devices by increasing the bias current of the input. 59.

(75) devices or reducing the Cgs of input devices. However, a smaller Cgs needs a larger L to maintain the same resonant frequency, and a larger L will have more loss and cause more noise. Therefore, a trade-off must be made between L and Cgs to optimize the NF of the LNA. The component values and channel dimensions of the MOS devices of Fig. 3-4 are summarized in Table III.. Devices. Value. M1, M3. 70µm / 0.18µm. M2, M4. 60/µm / 0.18µm. L, LS, L1. 9nH, 2.3nH, 2.3nH respectively. C2. 2pF. C. 2pF. Table III Component values and dimensions of MOS devices of the LNA.. 3.4 Quadrature Down Conversion Mixer In the RF mixers, the important design parameters are noise figure (NF), conversion gain (CG), third-order input intercept point (IIP3), and port. 60.

(76) -to-port isolation. These parameters should be designed to meet the requirements of various standards for different wireless communication systems. In this design, the mixer is intended to be used as the RF downconversion block in the wireless receiver shown in Fig. 1-1. As seen from that Figure, the mixer is placed after the low noise amplifier (LNA). The LNA provides sufficient power gain to mask the noise contribution of the subsequent stages. Thus the noise figure contributed by the mixer can be ignored if its value is lower than the total gain of the previous stages. Since the LNA has provided sufficient gain, the conversion gain of the mixer should not be high to overdrive the subsequent stages. Higher gain also implies higher signal swing in the circuit, which could degrade the linearity and the dynamic range. Nevertheless, very low gain far below 0dB is also unacceptable because the noise contributed by the stages after the mixer becomes higher. Thus the value of conversion gain around 0dB is acceptable. In the modern wireless systems, the receiver could subject to an environment with large adjacent channel interfering signals. Due to the nonlinearity of the receiver, those interfering signals produce co-channel interference, which degrades the signal-to-noise-ratio of the received signal.. 61.

(77) Thus IIP3 of the receiver, which indicates the ability of the receiver to reject the interfering signals becomes a very important feature of the RF receiver. In most cases, the signal power handled by the RF mixer is higher than those by the other stages in the receiver. Thus IIP3 of the mixer is a critical parameter in the receiver design. In order to sustain a high receiver linearity, IIP3 of the mixer should be as high as possible. The port to port isolation and LO power are also important issues in the mixer design. The LO power in the order of a few dBm is often required by the mixer to obtain high linearity and high dynamic range. Such a high LO power causes the LO energy leaks through the RF port and radiates from the antenna if the port isolation of the mixer is not high enough. The design criteria of the mixer is to keep the LO power as low as possible and increases the port isolation. LTI system cannot provide outputs with spectral components not present at input. So, mixer must be either nonlinear or time varying in order to provide frequency translation. Mixer performs frequency translation by multiplying two signals (with their harmonics) in time domain. Since the MOS transistor is basically a square-law device, then it can be used to implement second-order transfer functions [34]. In this receiver, the utilized mixer is a quadrature one, and Fig. 3-7 shows the circuit diagram. 62.

(78) of the in-phase output of the mixer. In this circuit, type-A combiner consists of eight transistors (M9~M16), while type-B combiner consists of four transistors (M17~M20]. The transfer function of the two combiners can be modeled by the drain current equation of the MOS transistors in the saturation region. Using the ideal square law current identity of MOS transistors, the drain current ID can be expressed as ID = K (VGS – VT) 2. (3.14). Where K= µs (Cox/2)(W/L) is the transconductance parameter, µs is the effective surface carrier mobility, Cox is the gate oxide capacitance per unit area, W/L is the channel width (length) of the MOS device, VGS is the gatesource voltage, and VT is the threshold voltage. If the transistors in the type-A combiner are operated in the saturation region, the output voltage at the their drains terminals can be written as functions of the input signals LOQ+, LOQ-, RF+, and RF- by using (3.14). The same thing can be done for the B-type combiner. The supply voltage of the mixers can be as low as 1.8V, since only two transistors are cascaded between power supply and ground. By the way, the down-conversion mixers and VCO share the same current and so the power consumption will be reduced obviously. In comparison with other architectures, the current- reused method, as shown in Fig. 3-8, particularly. 63.

(79) highlights the advantages of the low-power consumption in direct conversion architectures. VDD. R Voi. M17. VDD. M9. VB. + LOI. M18. M19. M20. VDD. M10. VDD. M11. + RFI. LOI. M12. M13. RFI. VB. VB. LOQ. M14. VDD. M16. M15. + RFQ LOQ. VB. Fig. 3-7 In phase output of the down conversion mixer. VDD 3mA. RF-I RF-Q. Mixer. LO-I. LO-Q. 3mA. Baseband. VCO. 3mA. GND. Fig. 3-8 The concept of current reuse technique in the receiver. 64. + RFQ.

(80) 3.5 Merged Quadrature Voltage Controlled Oscillator. Fig. 3-9 The conceptual block diagram of the voltage controlled oscillator. To implement the integrated quadrature VCO, a circuit structure based on the two-stage ring oscillator with LC-tank loads is proposed [35]. As shown in Fig 3-9 two fully differential narrow-band LC-tuned inverters are connected to form a two-stage ring oscillator structure for signal oscillation. The output waveforms at the differential output nodes of one inverter are 90° out of phase from those at the differential output nodes of the other one. Thus, these two differential output waveforms are synchronized in. 65.

(81) quadrature phases [35]-[37]. When the delay time of the two fully differential inverters are kept the same at oscillation, the outputs of these two fully differential inverters can provide highly accurate quadrature signals. By incorporating the LC-tank loads into two-stage ring oscillator, the performance of proposed quadrature VCO is significantly improved with respect to the following specifications: phase noise, frequency stability, and supply voltage sensitivities. In order to efficiently reduce chip area, power dissipation, and quadrature phase error, the quadrature VCO is cascoded with quadrature mixer as shown in the block diagram of Fig. 3-8. As may be seen from Fig. 3-8, the cascoded quadrature VCO and quadrature mixer use the same current I1 (3mA). In this way, the total power dissipation can be optimized. Furthermore, the signal paths from quadrature VCO to quadrature mixer can be kept very short and symmetrical to alleviate the influence on the quadrature phases of VCO output signals by the parasitic components on the signal paths. Thus the phase error and amplitude mismatch can be minimized.. 66.

(82) - LOQ+. +LOI -. L2. L1 R. R. M3. M1. VC1. VC1. M2. MD2 M6. M4. MD4. MD1. M8. M5. MD3 M7. Fig. 3-10 Quadrature VCO schematic. Fig. 3-10 is the circuit diagram to demonstrate the implementation of quadrature VCO using the two-stage ring oscillator with LC-tank loads. The MOS transistors M1, M2, M3, and M4 are connected to form a two-stage ring oscillator to be used as the phase controller. The negative resistor in Fig. 3-10 is realized by two cross-coupled MOS transistors M5 and M6 (M7 and M8) and connected in parallel with the LC-tank loads to cancel the parasitic series resistance of spiral inductors and guarantee oscillation. As shown in Fig. 3-10, the LC-tank loads consists of a spiral inductor L1 and L2, P+/N-well varactor diodes MD1, MD2, MD3, and MD4, and the parasitic capacitances of M1, M2, M3, M4, M5, M6, M7 and M8. The two. 67.

(83) P+/N-well varactor diodes can be tuned simultaneously by the control voltage VC1 to obtain the desired oscillation frequency expressed as fosc. = 1 / 2π LC Hz.. where L is the inductance of the spiral inductor, and C is the total parallel equivalent capacitance. The maximum impedance of the LC-tank loads occurs at the oscillation frequency. At this frequency, the fully differential inverter achieves the maximum gain and the ring oscillator can maintain the quadrature oscillation. At other frequencies, the gain of the fully differential inverters is decreased due to the decrement of the impedance of the LC-tank loads. Thus the ring oscillator cannot maintain the quadrature oscillation. So the oscillation frequency is only dependent on L and C of the LC-tank loads. The component values and channel dimensions of the MOS devices for the mixer and the VCO are summarized in table V. Device M1~M4 M5~M8 M9~M16 M17~M20 R L1,L2. Value 5µm/0.18µm 220µm/0.18µm 20µm/0.18µm 100µm/0.18µm 3K 2.3nH. Table V Component values and MOS dimensions of the mixer and the VCO.. 68.

(84) 3.6 Simulation Results The receiver’s front-end blocks have been simulated using Hspice with 0.18µm CMOS technology. The simulated results of the LNA voltage gain and noise performance with operating current under 50-Ω system impedance are shown in Fig. 3-11. The LNA achieves a NF of 2 dB at 5.15 GHz with 4mA current drain from a 2-V supply. This is the lowest NF reported to date or at least according to my knowledge for a CMOS LNA operating in the 5 GHz band. The mixers were also individually characterized and simulated. When biased with 3mA current and driven by –4dBm LO signal, the mixer has a conversion gain of 0 dB, and a 7 dB SSB noise figure. Fig. 3-12 shows the output transient waveforms of the quadrature oscillator. The LO frequency is 5GHz, the phase error is 0.6° and the amplitude error is 2mV. The quadrature VCO covers a wide operating frequency range, from 5 GHz to 5.5 GHz. The tuning characteristic of the VCO under different control voltages is shown in Fig. 3-13. The simulated phase noise of the quadrature VCO is –100dBc/Hz at 500 KHz away from 5.15 GHz center frequency. The output spectrum of the VCO and the mixer are shown in Fig. 3-14, and Fig. 3-15 respectively. The low power operation of this receiver is. 69.

(85) enabled by the current reuse technique used among quadrature VCO and mixer. Linearity of the front-end of the receiver is evaluated with a two-tone simulation as shown in Fig.3-16. The input-referred IP3 is –5dBm, with a 1dB compression point of –15dBm. This is due to the high linearity of the short channel MOS- transistors. The variation of the S11 parameter with frequency for the receiver front-end is shown in Fig.3-17. It approaches –19 dB at 5.15 GHz. (a). 70.

(86) (b) Fig. 3-11 (a) Simulated LNA voltage gain versus frequency (b) Simulated LNA NF versus frequency.. Fig. 3-12 The output waveform of the quadrature oscillator. 71.

(87) Fig. 3-13 The tuning characteristics of the VCO.. Fig. 3-14 The VCO output spectrum. 72.

(88) Fig. 3-15 The mixer output spectrum. Fig. 3-16 Two-tone intermodulation simulation results of the receiver’s front-end. 73.

(89) Fig. 3-17 Receiver’s front-end S11 parameter versus frequency. Table IV summarizes the receiver performance.. Performance Noise figure Voltage gain S11 for receiver frontend Input referred IP3 1dB compression point LO leakage to RF Phase noise at 500KHz AGC dynamic range LPF cutoff frequency Power consumption. Hspice simulation results 4dB 80dB -19dB -7dBm -17dBm -55dBm -100dBc/Hz 60dB 10MHz 45mW. IEEE 802.11a Standard. [7] 10 dB -26dBm. [7] -. Table IV Simulated received performance compared to that required by IEEE 802.11a standard.. 74.
